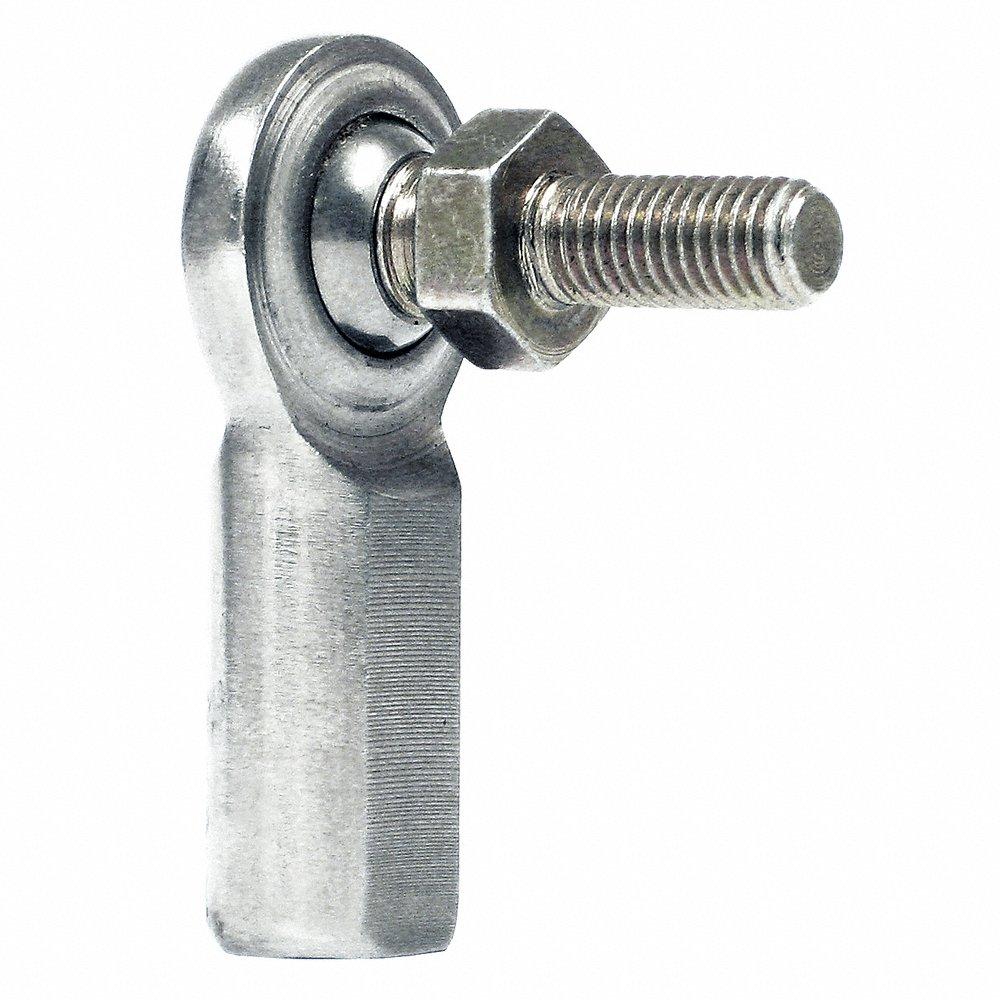

QA1 GFL7TS Female Stud Rod End, Stainless Steel, LH, 7/16-20
Item: CT8HRXModel: GFL7TSCross Ref: 20G065
7 In Stock
Ships within 2 days via
10.00% off
€60.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rod End |
| Application | Light Duty |
| Ball Dia. | 0.812" |
| Ball Material | Stainless Steel |
| Ball Material Grade | Grade 440C |
| Ball Stud Center Length | 1 3/4" |
| Ball Stud Thread Length | 7/8" |
| Ball Stud Thread Size | 7/16"-20 |
| Bore Dia. | 7/16" |
| Bore Diameter Tolerance | -0.0005" to +0.0015" |
| Dimension B | 0.688" |
| Dimension C | 1.062" |
| Dimension E | 1 1/8" |
| Dimension G | 1.812" |
| Dimension H | 0.937" |
| Dimension J | 2 3/8" |
| For Environment | Caustic |
| Head Outside Diameter | 1 1/8" |
| Head Width | 0.562" |
| Housing Material | Stainless Steel |
| Housing Material Finish | Chrome Plated |
| Max. Ball Swivel | 21° |
| Race Material | PTFE |
| Resistance Properties | Corrosion Resistant |
| Self Lubricating Bearing | Yes |
| Shank Thread Direction | Left Hand |
| Shank Thread Gender | Female |
| Shank Thread Length | 7/8" |
| Shank Thread Size | 7/16"-20 |
| Spherical Rod End Type | Female Studded |
| Static Radial Load Capacity | 5689 lbf. |
| Stud Length | 1.062" |
| System Of Measurement | Inch |
| Thread | Left Hand |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | CN |
