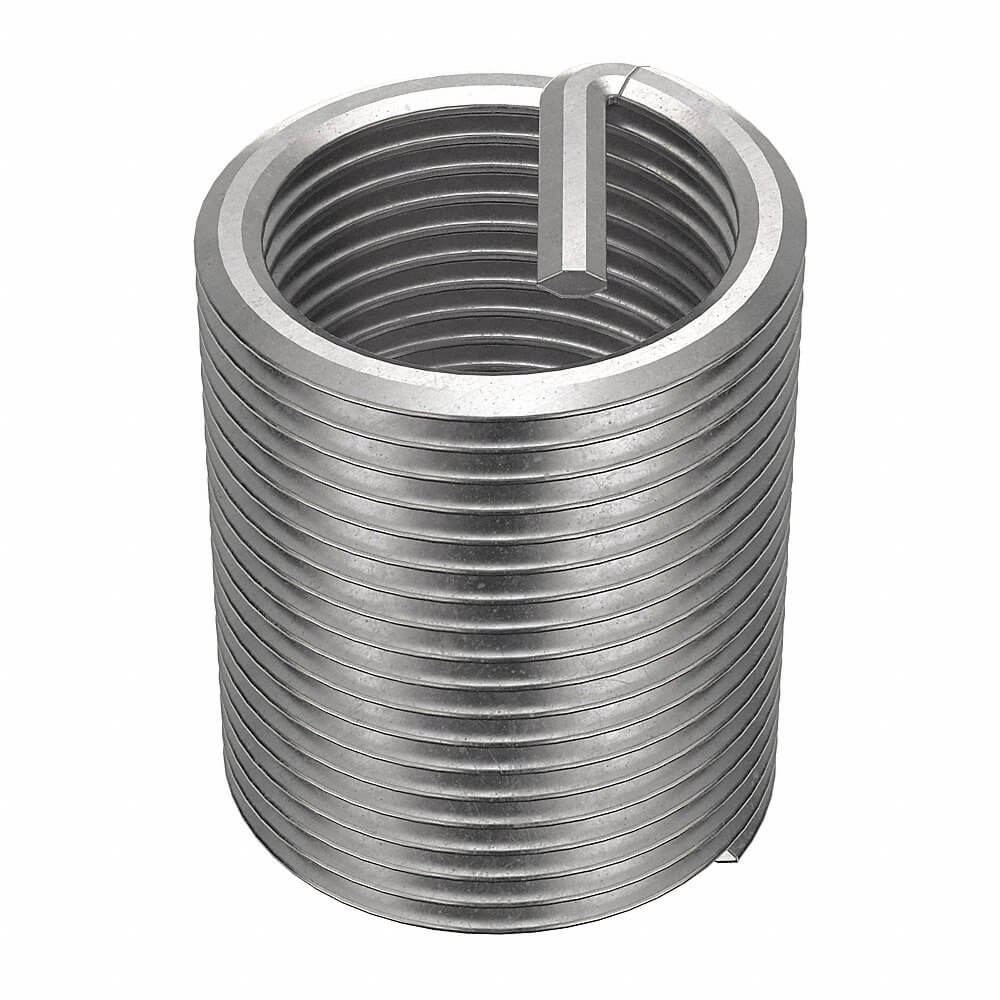

POWERCOIL 3534-1.1/8X1.5D Helical Insert, 1 1/8 In - 12 Internal Thread Size, Gr. 304, 1.688 In Lg., SS
Item: AE7DARModel: 3534-1.1/8X1.5DCross Ref: 5WZJ7
7 In Stock
Ships within 2 days via
10.00% off
€12.44 /unit
This product can only be shipped in multiples of 5Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Helical Insert |
| Display Qty | 1 |
| Drill Bit Size | 1 5/32" |
| Drill Size | 1.156" |
| Finish | Plain |
| Free Coil Dia. | 1.334" |
| Free Coil Diameter | 1.33" |
| Grade | 304 |
| Hardness | Rockwell C43-50 |
| Helical Insert Type | Free Running |
| Internal Thread Size | 1 1/8"-12 |
| Length | 1.688" |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Maximum Hole Diameter | 1.0348" |
| Overall Length | 1 11/16" |
| Rockwell Hardness | C43-C50 |
| Series | Powercoil |
| Sti Tap Size | 1 1/8"-12 |
| System Of Measurement | Imperial |
| Tang Style | Tanged |
| Tensile Strength | 200000 psi |
| Thread Direction | Right Hand |
| Thread Size | 1 1/8"-12 |
| Thread Type | Fine |
| Type | Free Running |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 6.35 |
| HS code | 7318290000 |
| Country of Origin | GB |
