PHILIPS ADVANCE 71A64F2-001D HID Ballast, Metal Halide, 277 To 480 VAC, Pulse Start Type, 750W Lamp
Get it by Monday, Aug 24
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€424.34 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HID Ballast |
| Ansi Code | M149 |
| Ballast Bulb Type | Metal Halide |
| Ballast Factor | 1 |
| Ballast Family | Hid Magnetic |
| Ballast Lamp Type | Metal Halide |
| Ballast Start Type | Pulse |
| Ballast Type | Magnetic |
| Dimensions A | 2 2/7" |
| Dimensions B | 4 1/4" |
| Footnotes | 6 |
| Frequency | 60 Hz |
| Height | 4 1/4" |
| Housing Material | Steel |
| Included | Capacitor, Coil, Core, Hardware, Ignitor, Mounting Bracket |
| Input Voltage | 277/347/480V AC |
| Input Watts | 818 W |
| Insulation Class | Class H |
| Lamp Type | Metal Halide |
| Lamp Watts | 750 W |
| Length | 6" |
| Max. Bulb Watts | 750 W |
| Min. Bulb Watts | 750 W |
| Min. Starting Temp. | -20°F |
| No. Of Bulbs Supported | 1 |
| No. Of Lamps | 1 |
| Operating Amps @ 120v | 7A |
| Operating Amps @ 208v | 4A |
| Operating Amps @ 240v | 3.5A |
| Operating Amps @ 277v | 3 |
| Operating Amps @ 277v | 3A |
| Operating Amps @ 480v | 1.7 |
| Operating Amps @ 480v | 1.7A , 2A |
| Overall Height | 4 1/4" |
| Overall Length | 6" |
| Overall Width | 2 5/16" |
| Start Type | Pulse |
| Starter Required | No |
| Thermal Protection | No |
| Width | 2 5/16" |
Shipping Info:
| Ship weight (kg) | 8.62 |
| Ship height (cm) | 11.94 |
| Ship length (cm) | 23.62 |
| Ship width (cm) | 19.3 |
| HS code | 8504100000 |
| Country of Origin | MX |
Product Details:

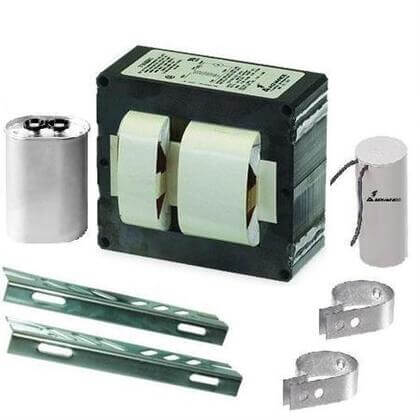

- Includes: Dry Film Capacitor, Ignitor and Bracket Kit
Product Variants
| Model | Height | Operating Amps @ 120v | Lamp Watts | Input Watts | Operating Amps @ 277v | Ballast Type | Ansi Code | Ballast Family | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 71A6071-001D | 4 13/16" | 4A | 400 W | - | 1.75A | Magnetic | M59 | Hid Magnetic | €227.34 | |
| 71A6572-001 | 3 7/8" | 9A | 1000 W | 1080 W | 3.9A | Magnetic | M47 | Hid Magnetic | €336.64 | |
| 71A6552-001 | 4 3/8" | 9A | 1000 W | 1080 W | 4.1A | Magnetic | M47 | Hid Magnetic | €486.63 | |
| 71A5492-001D | 2 7/8" | 1.6A | 150 W | 185 W | 0.7A | Magnetic | M102/M142 | Hid Magnetic | €306.76 | |
| 71A5750-001D | 4 7/16" | 2.6A | 250 W | 290 W | 1.1A | Magnetic | M58 | Hid Magnetic | €304.34 | |
| 71A6051-001D | 4 7/16" | 4.1A | 400 W | 460 W | 1.7A | Magnetic | M59 | Hid Magnetic | €360.76 | |
| 71A5771-001D | 3 3/4" | 2.6A | 250 W | 294 W | 1.1A | Magnetic | M58 | Hid Magnetic | €268.26 |
