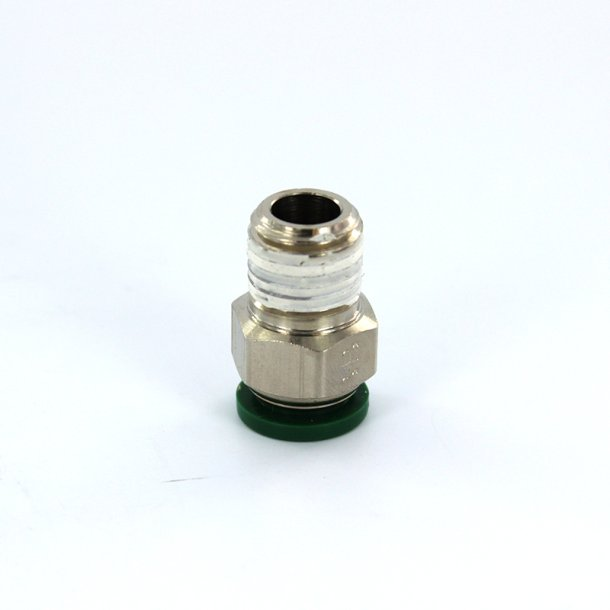

PARKER W68PLP-6-4 Male Connector, Push-To-Connect Fitting
Get it by Tuesday, Aug 25
€13.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Male Connector |
| Application | Air, Inert Gases, Oils, Vacuum |
| Application Type | Air Lines Inert Gase Soil Lines Vacuum Lines |
| Color | Silver |
| Compatible Tube Hardness | 95 Shore A, 90 Shore A |
| Compatible Tube Material | Polyethylene, Polypropylene, Polyurethane, Rigid Nylon, Semi Rigid Nylon |
| Connection Type | 3/8" Push To Connect Connection 1/4" NPTF Male Thread With Thread Sealant |
| Design | 5/8" Ext. Hexthreaded + Push-In (Push-To-Connect) Design#W68plp Model |
| End Connection Type | Push To Connect, Threaded |
| Equivalent To | W68PLP64 |
| Finish, Coating | Nickel Plated |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Push-To-Connect |
| Fitting Side B Connection Type | MNPTF |
| Fitting Thread Size | 1/4" |
| Fitting Type | Straight Fitting |
| Function | Pneumatic Straight Fitting |
| Includes Pre-applied Thread Sealant | Yes |
| Main Function | Air Fitting |
| Material | Brass Body (Nickel-Plated)Nitrile Seals Stainless Steel Grab Ring |
| Material Grade | Grade C36000 |
| Max. Operating Pressure | 300 psi |
| Max. Operating Temp. | 200°F |
| Min. Operating Temp. | 0°F |
| No. Of Inlet | 1 |
| No. Of Outlet | 1 |
| Overall Length | 1 3/32" |
| Product Datasheet | parker-164plp-2.pdf |
| Release Ring Color | Black |
| Release Ring Material | Nitrile Rubber |
| Release Type | Button |
| Resistance Properties | Chemical Resistant |
| Size | 3/8" Tube x 1/4" NPTF Male |
| Specific Fitting Shape | Connector |
| Sub Range Name | Prestolok Series |
| System Of Measurement | Imperial |
| Temp. | 0°F to 200°F |
| Thread Sealant Type | White Acrylic |
| Type | Prestolok |
| Vacuum Rating | 28 in. hg |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Fitting Side A Connection Type | Fitting Side B Connection Type | Thread Sealant Type | Min. Operating Temp. | Compatible Tube Hardness | Max. Operating Temp. | Fitting Thread Size | Fitting Side B Pipe Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| W68PLP-2-1 | Push-To-Connect | MNPTF | White Acrylic | 0°F | 90 Shore A, 95 Shore A | 200°F | - | 1/16" | €10.37 | |
| W68PLP-3-2 | Push-To-Connect | MNPTF | White Acrylic | 0°F | 90 Shore A, 95 Shore A | 200°F | - | 1/8" | €11.39 | |
| W68PLP-5-2 | Push-To-Connect | MNPTF | White Acrylic | 0°F | 90 Shore A, 95 Shore A | 200°F | - | 1/8" | €12.21 | |
| W68PLP-3-4 | Push-To-Connect | MNPTF | White Acrylic | 0°F | 90 Shore A, 95 Shore A | 200°F | - | 1/4" | €14.13 | |
| W68PLP-4-1 | Push-To-Connect | MNPTF | White Acrylic | 0°F | 90 Shore A, 95 Shore A | 200°F | - | 1/16" | €15.11 | |
| W68PLP-5/32-4 | Push-To-Connect | MNPTF | White Acrylic | 0°F | 90 Shore A, 95 Shore A | 200°F | - | 1/4" | €10.39 | |
| W68PLP-5-4 | Push-To-Connect | MNPTF | White Acrylic | 0°F | 90 Shore A, 95 Shore A | 200°F | - | 1/4" | €12.80 |
