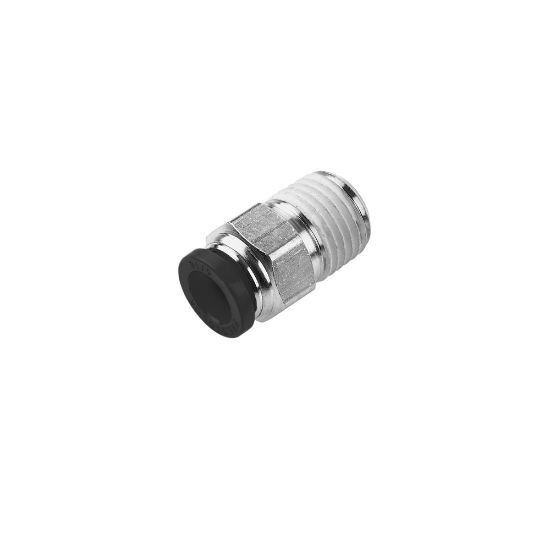

PARKER W68PLP-5-2 Fitting, 5/16 Inch Outside Diameter, Nickel Plated Brass
Item: BT4ZDFModel: W68PLP-5-2Cross Ref: 800KK5
7 In Stock
Ships within 2 days via
10.00% off
€8.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Application | Air, Automotive, Climate Control, End-Of-Arm Tooling, Factory Automation, Industrial, Inert Gases, Oil Lines, Packaging, Pneumatics, Robotic Welding, Robotics, Semi-Conductor, Textile, Vacuum Lines |
| Body Finish | Nickel Plated |
| Body Material | Brass |
| Color | Silver |
| Compatible Tube Hardness | 90 Shore A, 95 Shore A |
| Compatible Tube Material | Polyethylene, Polypropylene, Polyurethane, Rigid Nylon, Semi-Rigid Nylon |
| Configuration Sub-type | Male Connector |
| Configuration Type | Tube To Male |
| Connection Type | BSPP x BSPT x NPTF x UNF |
| Finish | Nickel Plated |
| Finish/coating | Nickel Plated |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Push-To-Connect |
| Fitting Side A Pipe Size | 1/8" |
| Fitting Side A Tube Outer Diameter | 5/16" |
| Fitting Side B Connection Type | MNPTF |
| Fitting Side B Pipe Size | 1/8" |
| Includes Pre-applied Thread Sealant | Yes |
| Material | Brass |
| Material Grade | Grade C36000 |
| Max. Operating Pressure | 300 psi |
| Max. Operating Temp. | 93 Deg C |
| Max. Operating Temp. | 93°C |
| Maximum Operating Temperature | 200°F |
| Min. Operating Temp. | -18°C |
| Minimum Operating Temperature | 0°F |
| Outer Dia. 1 | 5/16" |
| Overall Length | 1 3/16" |
| Release Ring Color | Black |
| Release Ring Material | Nitrile Rubber |
| Release Type | Button |
| Resistance Properties | Chemical Resistant |
| Ring Material | Stainless Steel |
| Seal Material | Nitrile |
| Series | PRESTOLOK METAL INCH Series |
| Shape | Connector |
| Specific Fitting Shape | Connector |
| Standards | Ul94 V-0 |
| Style | Tube To Pipe |
| System Of Measurement | Imperial |
| Thread 1 Size | 1/8" |
| Thread 1 Type | NPT |
| Thread Sealant Type | White Acrylic |
| Tube Outside Dia. | 0.312" |
| Vacuum Pressure | 28 Inch-Hg |
| Vacuum Rating | 28 in. hg |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 0.79 |
| Ship length (cm) | 3.02 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Max. Operating Temp. | Min. Operating Temp. | Fitting Side A Connection Type | Fitting Side A Tube Outer Diameter | Overall Length | Fitting Side B Pipe Size | Fitting Side A Pipe Size | Tube Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| W68PLP-2-1 | 93°C | -18°C | Push-To-Connect | 1/8" | 25/32" | 1/16" | 1/16" | 1/8" | €9.01 | |
| W68PLP-3-2 | 93°C | -18°C | Push-To-Connect | 3/16" | 27/32" | 1/8" | 1/8" | 0.188" | €8.87 | |
| W68PLP-3-4 | 93°C | -18°C | Push-To-Connect | 3/16" | 1" | 1/4" | 1/4" | 0.188" | €11.69 | |
| W68PLP-4-1 | 93°C | -18°C | Push-To-Connect | 1/4" | 1 1/16" | 1/16" | 1/16" | 1/4" | €13.26 | |
| W68PLP-5/32-4 | 93°C | -18°C | Push-To-Connect | 5/32" | 1 1/32" | 1/4" | 1/4" | 0.156" | €9.15 | |
| W68PLP-5-4 | 93°C | -18°C | Push-To-Connect | 5/16" | 1 1/32" | 1/4" | 1/4" | 0.312" | €10.60 | |
| W68PLP-5-6 | 93°C | -18°C | Push-To-Connect | 5/16" | 1 1/32" | 3/8" | 3/8" | 0.312" | €11.51 |
