PARKER VS68AB-4-2 Brass Compression Air Brake Fitting
Item: CP2DPEModel: VS68AB-4-2Cross Ref: 791AR9
7 In Stock
Ships within 2 days via
10.00% off
€7.60 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Brake Fitting |
| Application | Heavy Duty Truck, Trailer, Mobile |
| Compatible Tube Material | Copper |
| Configuration Sub-type | Male Connector |
| Configuration Type | Tube To Male |
| Fits Brand | Parker |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 1/4" |
| Fitting Side B Connection Type | MNPT |
| Fitting Side B Pipe Size | 1/8" |
| Hex Size | 7/16" |
| Includes Pre-applied Thread Sealant | Yes |
| Length | 1.469" |
| Material | Brass |
| Max. Operating Pressure | 400 psi |
| Max. Operating Temp. | 250°F |
| Min. Operating Temp. | -65°F |
| Operating Temp. Range | -65°F to +250°F |
| Outer Diameter 1 | 1/4" |
| Overall Length | 1 15/32" |
| Pipe Size | 1/8" |
| Pressure Range | 0 psi to 400 psi |
| Product Datasheet | parker-vs68ab-4-2.pdf |
| Sae Reference | SAE 120102 BA |
| Series | AIR BRAKE AB Series |
| Specific Application | Copper Air Brake Lines, Coolant Lines, Fuel Lines |
| Specific Fitting Shape | Straight Connector |
| System Of Measurement | Inch |
| Thread 1 Size | 1/8" |
| Thread 1 Type | NPT |
| Thread Sealant Type | Vibra-Seal 516 |
| Thread Size B | 1/8" |
| Tube Size | 1/4" |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 0.64 |
| Ship length (cm) | 3.73 |
| Ship width (cm) | 1.11 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Pipe Size | Tube Size | Max. Operating Temp. | Min. Operating Temp. | Hex Size | Specific Fitting Shape | Fitting Side B Pipe Size | Thread Size B | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

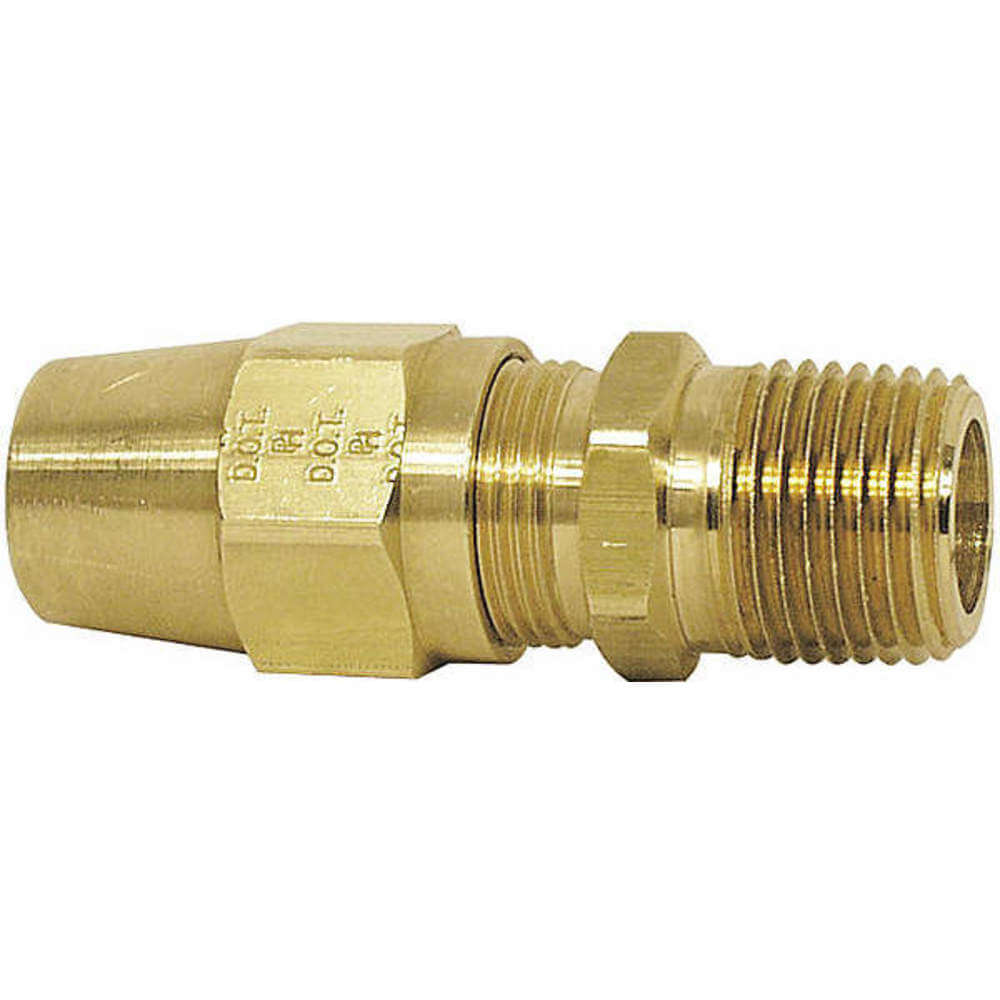

| VS68AB-10-8 | 1/2" | 5/8" | 121°C | -53°C | 7/8" | Straight Adapter | 1/2" | 13/16"-18 | 10 | €261.65 | |

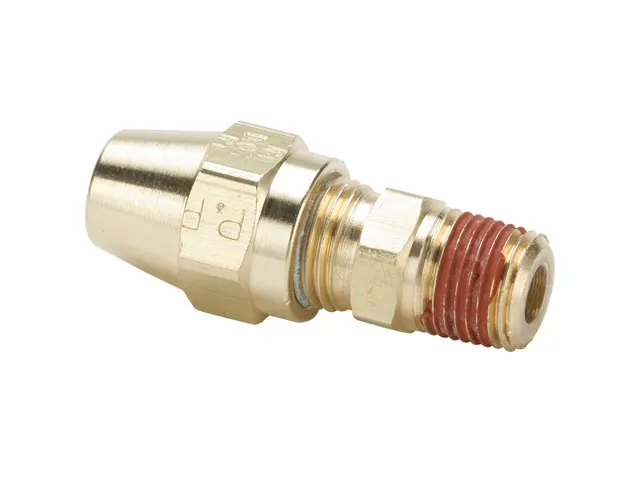

| VS68AB-4-4 | 1/4" | 1/4" | 250°F | -65°F | 9/16" | Straight Connector | 1/4" | 1/4" | 1 | €13.57 | |
| VS68AB-6-8 | 1/2" | 3/8" | 250°F | -65°F | 7/8" | Straight Connector | 1/2" | 1/2" | 1 | €25.08 | |
| VS68AB-8-6 | 3/8" | 1/2" | 250°F | -65°F | 11/16" | Straight Connector | 3/8" | 3/8" | 1 | €17.53 | |
| VS68AB-6-4 | 1/4" | 3/8" | 250°F | -65°F | 9/16" | Straight Connector | 1/4" | 1/4" | 1 | €13.53 | |
| VS68AB-8-8 | 1/2" | 1/2" | 250°F | -65°F | 7/8" | Straight Connector | 1/2" | 1/2" | 1 | €30.55 |
