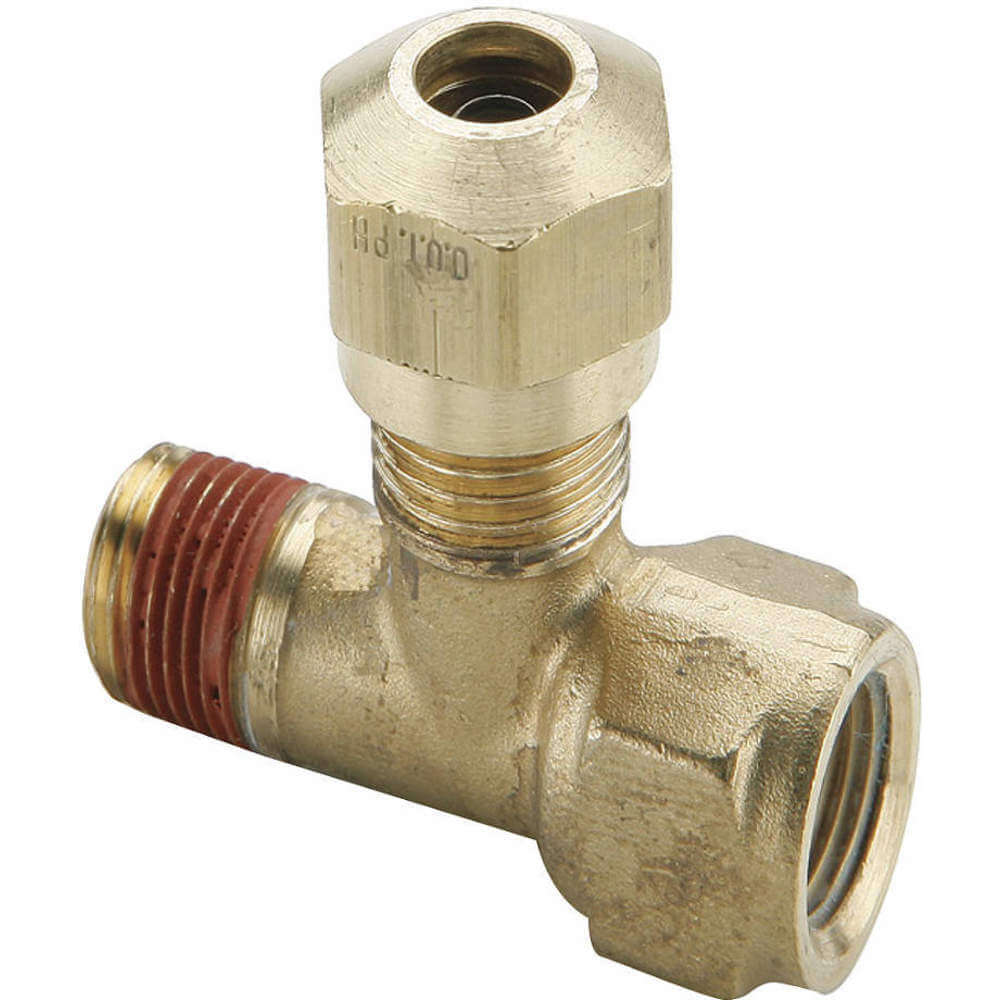

PARKER VS271NTA-4-4 Air Brake Fitting, 1/4 Inch Outside Diameter, Brass
Item: AA3BCYModel: VS271NTA-4-4Cross Ref: 11G315
7 In Stock
Ships within 2 days via
10.00% off
€19.56 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Brake Fitting |
| Application | Heavy Duty Truck, Trailer, Mobile |
| Body Material | Brass |
| Compatible Tube Material | Nylon, Stainless Steel |
| Configuration Sub-type | Male Run Tee |
| Configuration Type | Tube To Male |
| Connection | Tube x Tube x MNPT |
| Connection Type | Tube x Tube x MNPT |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 1/4" |
| Fitting Side B Connection Type | MNPT |
| Fitting Side B Pipe Size | 1/4" |
| Fitting Side C Connection Type | Compression |
| Fitting Side C Tube Outer Diameter | 1/4" |
| Includes Pre-applied Thread Sealant | Yes |
| Length | 0.95" |
| Material | Brass |
| Max. Operating Pressure | 150 psi |
| Max. Operating Temp. | 93 Deg C |
| Max. Operating Temp. | 93°C |
| Maximum Operating Temperature | 200°F |
| Min. Operating Temp. | -40°C |
| Minimum Operating Temperature | 40°F |
| Nut Material | Brass |
| Overall Length | 1 7/8" |
| Pipe Size | 1/4" |
| Pressure Range | 0 psi to 150 psi |
| Product Datasheet | parker-vs271nta-4-4.pdf |
| Sae Reference | SAE 100424 BA |
| Series | AIR BRAKE NTA Series |
| Shape | Run Tee |
| Sleeve Material | Brass |
| Specific Application | Air Brakes, Air Tanks, Air Ride, Sliders, Tire Inflation, Primary And Secondary, Air Lines, Cab Controls |
| Specific Fitting Shape | Adapter Tee |
| Style | Tube To Pipe |
| System Of Measurement | Inch |
| Temp. Range | -40°F to +200°F |
| Thread 1 Size | 1/4" |
| Thread 1 Type | NPT |
| Thread Sealant Type | Vibra Seal 516 |
| Thread Size | 7/16"-24 |
| Thread Size A | 7/16"-24 |
| Thread Size B | 7/16"-24 |
| Tube Outside Dia. | 1/4" |
| Tube Size | 1/4" |
| Type | Compression |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 1.52 |
| Ship length (cm) | 4.76 |
| Ship width (cm) | 3.3 |
| HS code | 7419995010 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Pipe Size | Tube Size | Fitting Side A Tube Outer Diameter | Tube Outside Dia. | Fitting Side B Pipe Size | Thread Size B | Thread Size A | Fitting Side C Tube Outer Diameter | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| VS271NTA-6-4 | 1/4" | 3/8" | 3/8" | 3/8" | 1/4" | 17/32"-24 | 17/32"-24 | 3/8" | €22.96 | |
| VS271NTA-6-6 | 3/8" | 3/8" | 3/8" | 3/8" | 1/4" | 17/32"-24 | 17/32"-24 | 3/8" | €38.06 | |
| VS271NTA-8-6 | 3/8" | 1/2" | 1/2" | - | 3/8" | 11/16"-20 | 11/16"-20 | 1/2" | €41.34 | |
| VS271NTA-8-8 | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 11/16"-20 | 11/16"-20 | 1/2" | €66.24 | |
| VS271NTA-10-8 | 1/2" | 5/8" | - | 5/8" | - | - | - | - | €107.44 |
