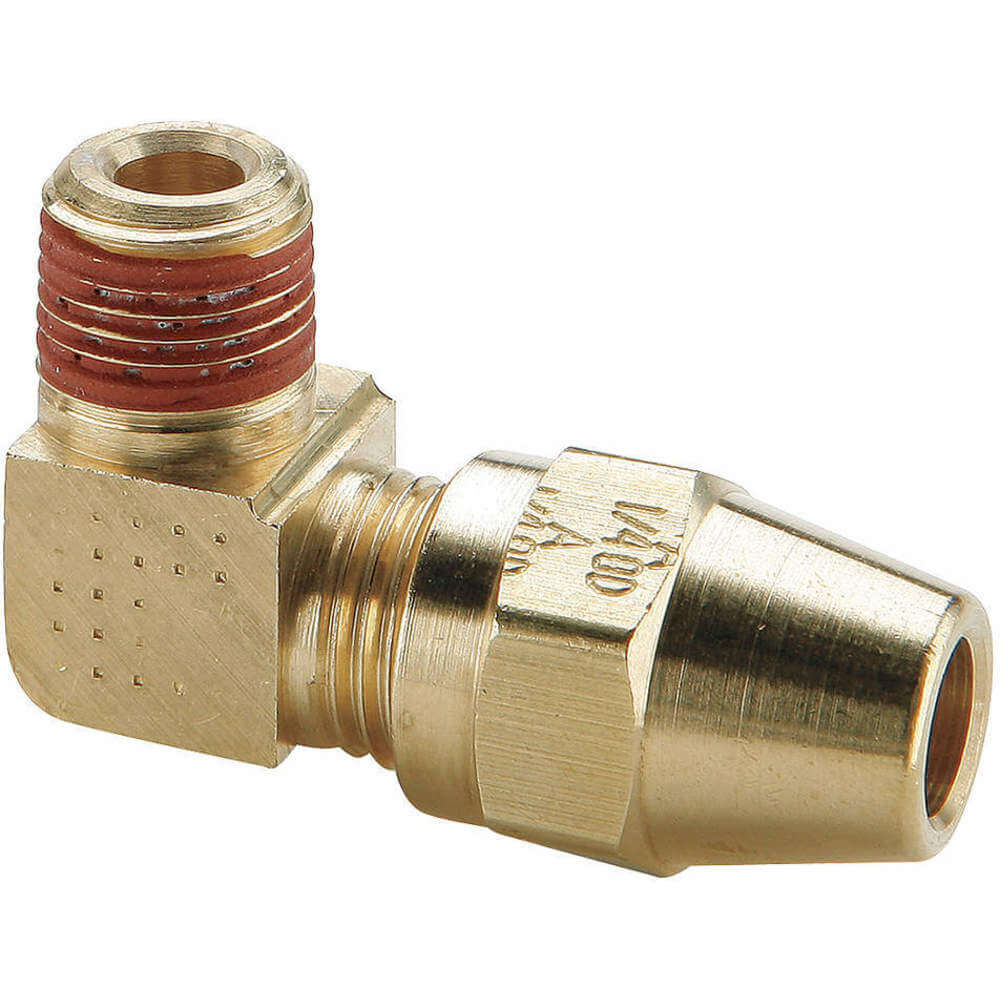

PARKER VS269AB-8-4 Brass Compression Air Brake Fitting
Item: CP2DQMModel: VS269AB-8-4Cross Ref: 791AR7
7 In Stock
Ships within 2 days via
5.00% off
€40.97 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Brake Fitting |
| Application | Heavy Duty Truck, Trailer, Mobile |
| Compatible Tube Material | Copper |
| Configuration Sub Type | Male Elbow 90° |
| Configuration Type | Tube To Male |
| Fits Brand | Parker |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outside Dia. | 1/2" |
| Fitting Side B Pipe Size | 1/4" |
| Included Pre-applied Thread Sealant | Yes |
| Length | 1" |
| Material | Brass |
| Max. Operating Pressure | 400 psi |
| Max. Operating Temp. | 250°F |
| Min. Operating Temp. | -65°F |
| Operating Temp. | -65°F to +250°F |
| Outside Dia. 1 | 1/2" |
| Overall Length | 1" |
| Pipe Size | 1/4" |
| Pressure | 0 psi to 400 psi |
| Product Datasheet | parker-vs269ab-8-4.pdf |
| Sae Reference | SAE 120202 BA |
| Series | AIR BRAKE AB Series |
| Specific Application | Copper Air Brake Lines, Coolant Lines, Fuel Lines |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow Adapter |
| System Of Measurement | Imperial |
| Thread 1 Size | 1/4" |
| Thread 1 Type | NPT |
| Thread Sealant Type | Vibra-Seal 516 |
| Thread Size B | 1/4" |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Fitting Side B Pipe Size | Thread Size B | Thread 1 Size | Pressure | Thread Sealant Type | Max. Operating Temp. | Min. Operating Temp. | Material | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VS269AB-8-6 | 3/8" | 11/16"-20 | 3/8" | Up To 400 psi | Vibra Seal 516 | 250°F | 65°F | Brass | 10 | €218.75 | |
|

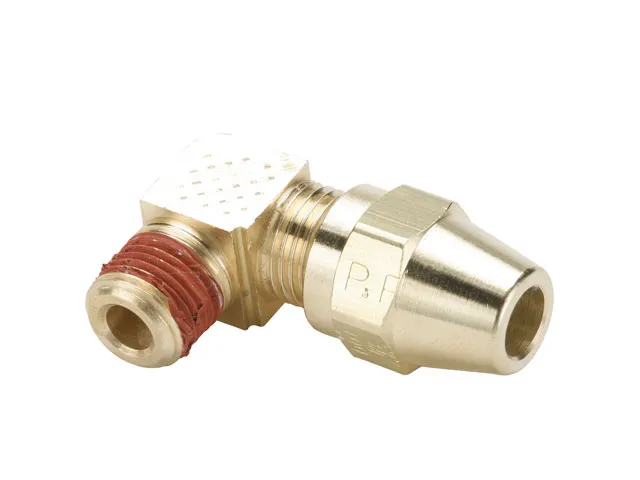

VS269AB-8-8 | 1/2" | 1/2" | 1/2" | 0 psi to 400 psi | Vibra-Seal 516 | 250°F | -65°F | Brass | 1 | €44.58 |
