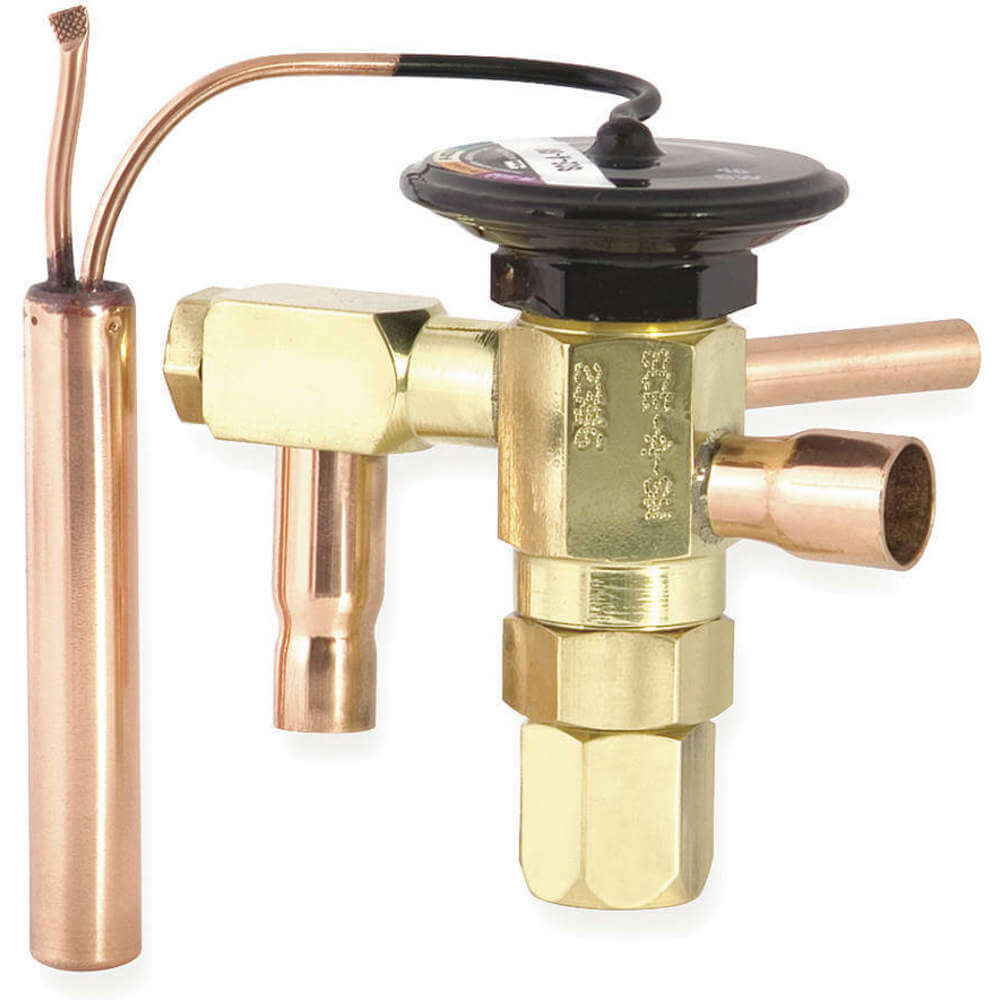

PARKER SCE-AA-VZ Themostatic Expansion Valve 1/3 To 1/2 Ton
Item: AB4PXPModel: SCE-AA-VZCross Ref: 1ZRG9
7 In Stock
Ships within 2 days via
10.00% off
€284.68 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Thermostatic Expansion Valve |
| Application Temperature | Commercial Refrigeration |
| Ari Standard | 750-70 |
| Balanced Port Design | Balanced |
| Capillary Length | 5 ft. |
| Capillary Length | 30 In. |
| Configuration | Angle |
| Connection Type | Angle Solder |
| Connector Inlet (in.) | 1/4 |
| Connector Inlet Size | 1/4" |
| Connector Outlet | 1/2" |
| Connector Outlet (in.) | 1/2 |
| Control | Accuracy, Maintained Over A Wide Variation In Evaporator Load, Thereby Minimizing Hunting Flood Back And Coil Starving Problems |
| Element Type | Removable |
| Equalizer Connection Gender | Female |
| Equalizer Connection Size | 1/4" |
| Equalizer Type | External |
| Evaporator Temp. Range | -40°F to 0°F |
| Evaporator Temp. Range | -40 to 0 F |
| Evaporator Temperature - Maximum | 0°F |
| Evaporator Temperature - Minimum | -40°F |
| For Capacity - Maximum | 8 ton. |
| For Capacity - Minimum | 0.1 ton. |
| For Refrigerant Type | R-22 |
| Includes | Sensing Bulb Mounting Clamp |
| Inlet Connection Gender | Female |
| Inlet Connection Size | 3/8" |
| Inlet Connection Type | Sweat |
| Liquid Subcooling Temperature | 10°F |
| Maximum Operating Pressure | 450 psi |
| Nominal Capacity | 0.5 ton. |
| Nominal Capacity | 1/3 to 1/2 Tons |
| Nominal Capacity - R-22 | 0.5 ton. |
| Not For Refrigerant Type | Ammonia |
| Not For Use With | Ammonia |
| Outlet Connection Gender | Female |
| Outlet Connection Size | 1/2" |
| Parker Model Number | SCE-AA-VZ |
| Product Type | Thermostatic Expansion Valve |
| Refrigerant | R-22 |
| Series | C Series |
| Strainer Mesh Size | 100 Mesh |
| Strainer Type | Removable |
| Superheat | Externally Adjustable |
| Superheat Adjustment | Field Adjustable |
| Type | Adjustable |
| Valve Body Material | Brass |
Shipping Info:
| Ship weight (kg) | 0.55 |
| Ship height (cm) | 8.13 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 9.4 |
| HS code | 8481809015 |
| Country of Origin | US |
Product Details:
- Balanced Port Design (Yes)
- Equalizer Type (External)
- Liquid Subcooling Temp. (F) (10)
- Not For Use With (Ammonia)
Product Variants
| Product | Model | Evaporator Temp. Range | Capillary Length | Equalizer Type | Nominal Capacity | Superheat | Connector Inlet Size | Type | Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ECE-D-ZX200 | 0°F to +50°F | 5 ft. | External | 8 ton. | Adjustable | 5/8" | Adjustable | Straight Through Solder | €282.28 | |
 |
CAAVX35 | -40°F to 10°F | 60" | - | - | Externally Adjustable | - | Adjustable | SAE Flare Angle | €275.72 | |
|
CAAVW | -40°F to 60°F | 5 ft. | Internal | 0.5 ton. | Externally Adjustable | 1/4" | Adjustable | SAE Flare Angle | €266.05 | |
 |
CEBVX100 | 10°F to 60°F | 5 ft. | External | 0.5 ton. | Externally Adjustable | 3/8" | Adjustable | SAE Flare Angle | €247.67 | |
 |
EBSE8VX100 | 10°F to 60°F | 5 ft. | External | 8 ton. | Externally Adjustable | 5/8" | Adjustable | Straight Through Solder | €412.90 | |
|
EBSE11VX100 | 10°F to 60°F | 5 ft. | External | 11 ton. | Externally Adjustable | 5/8" | Adjustable | Straight Through Solder | €430.61 | |
|
EBSE15VX100 | 10°F to 60°F | 5 ft. | External | 15 ton. | Externally Adjustable | 7/8" | Adjustable | Straight Through Solder | €581.32 |
