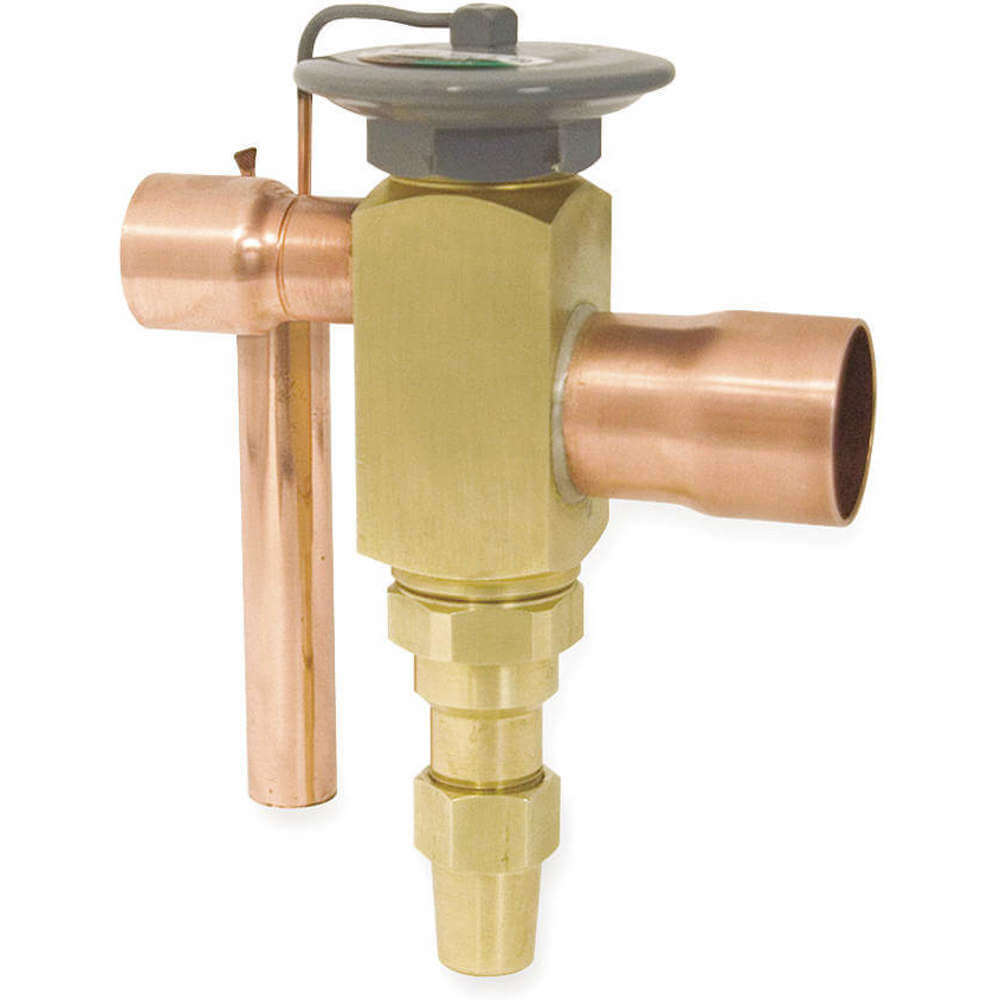

PARKER CEBVX100 Themostatic Expansion Valve 2-3 Tons
Item: AB4PWLModel: CEBVX100Cross Ref: 1ZRD4
7 In Stock
Ships within 2 days via
5.00% off
€215.41 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Thermostatic Expansion Valve |
| Application Temp. | Air Conditioning |
| Ari Standard | 750-70 |
| Balanced Port Design | Balanced |
| Capillary Length | 30 In. |
| Capillary Length | 5 ft. |
| Configuration | Angle |
| Connection Type | Flare Angle , SAE Flare Angle |
| Connector Inlet (in.) | 3/8 |
| Connector Inlet Size | 3/8" |
| Connector Outlet | 1/2" |
| Connector Outlet (in.) | 1/2 |
| Control | Accuracy, Maintained Over A Wide Variation In Evaporator Load, Thereby Minimizing Hunting Flood Back And Coil Starving Problems |
| Element Type | Removable |
| Equalizer Connection Size | 1/4" |
| Equalizer Connection Type | SAE Flare |
| Equalizer Type | External |
| Evaporator Temp. | 10°F to 60°F |
| Evaporator Temp. Range | 10 to 60 F |
| For Max. Capacity | 8 ton. |
| For Min. Capacity | 0.1 ton. |
| For Refrigerant Type | R-22 |
| Included | Sensing Bulb Mounting Clamp |
| Inlet Connection Size | 3/8" |
| Inlet Connection Type | Sae Flare |
| Liquid Subcooling Temp. | 10°F |
| Max. Evaporator Temp. | 60°F |
| Max. Operating Pressure | 450 psi |
| Min. Evaporator Temp. | 10°F |
| Nominal Capacity | 2 to 3 Tons |
| Nominal Capacity | 0.5 ton. |
| Nominal Capacity-r-22 | 0.5 ton. |
| Not For Refrigerant Type | Ammonia |
| Not For Use With | Ammonia |
| Outlet Connection Size | 1/2" |
| Outlet Connection Type | SAE Flare |
| Parker Model Number | CE-B-VX100 |
| Product Type | Thermostatic Expansion Valve |
| Refrigerant | R-22 |
| Series | C Series |
| Strainer Mesh Size | 100 Mesh |
| Strainer Type | Removable |
| Superheat | Externally Adjustable |
| Superheat Adjustment | Field Adjustable |
| Type | Adjustable |
| Valve Body Material | Brass |
Shipping Info:
| Ship weight (kg) | 0.59 |
| Ship height (cm) | 11.68 |
| Ship length (cm) | 9.65 |
| Ship width (cm) | 8.38 |
| HS code | 8481809015 |
| Country of Origin | US |
Product Details:
- Balanced Port Design (Yes)
- Equalizer Type (External)
- Liquid Subcooling Temp. (F) (10)
- Not For Use With (Ammonia)
Product Variants
| Product | Model | Balanced Port Design | Equalizer Type | Capillary Length | Nominal Capacity | Superheat | Liquid Subcooling Temp. | Connector Inlet Size | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ECE-D-ZX200 | Balanced | External | 5 ft. | 8 ton. | Adjustable | Variable | 5/8" | Adjustable | €301.13 | |
 |
CAAVX35 | Yes | Internal | 60" | - | Externally Adjustable | - | 1/4" | Adjustable | €211.89 | |
|
CAAVW | Balanced | Internal | 5 ft. | 0.5 ton. | Externally Adjustable | 10°F | 1/4" | Adjustable | €205.89 | |
 |
EBSE8VX100 | Balanced | External | 5 ft. | 8 ton. | Externally Adjustable | 10°F | 5/8" | Adjustable | €356.86 | |
|
EBSE11VX100 | Balanced | External | 5 ft. | 11 ton. | Externally Adjustable | 10°F | 5/8" | Adjustable | €372.13 | |
|
EBSE15VX100 | Balanced | External | 5 ft. | 15 ton. | Externally Adjustable | 10°F | 7/8" | Adjustable | €514.15 | |
 |
OE-15-VX100 | Balanced | External | 5 ft. | 15 ton. | Externally Adjustable | 10°F | 0.875" | Adjustable | €509.74 |
