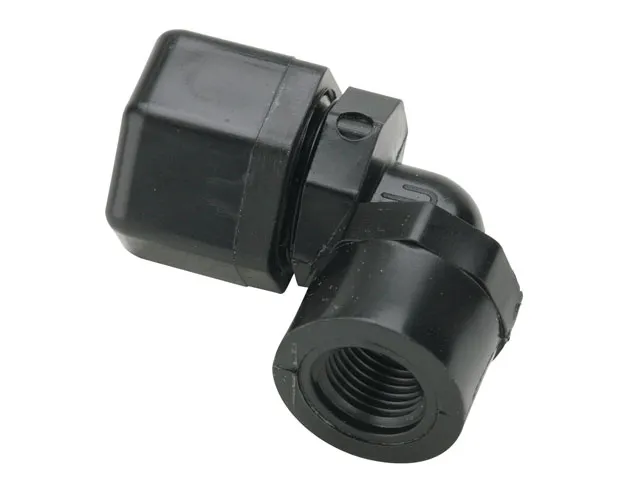

PARKER P4FE4 Female Elbow, 90 Degrees, Polypropylene, 1/4 Inch Tube OD, 1/4 Inch Pipe Size
Item: CT7EPYModel: P4FE4Cross Ref: 2ZRY2
7 In Stock
Polypropylene
300 psi
1/4"
Ships within 2 days via
10.00% off
€6.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Female Elbow |
| Application | Water, Beverages, Food, Co2 |
| Basic Pipe Fitting Material | Plastic |
| Basic Pipe Fitting Shape | Elbow |
| Color | Black |
| Compatible Tube Material | Glass, Thermoplastic |
| Configuration Sub-type | Female Elbow 90° |
| Configuration Type | Tube To Female |
| Fitting Side A Tube Outer Diameter | 1/4" |
| Fitting Side B Connection Type | FNPTF |
| Fitting Side B Pipe Size | 1/4" |
| Hex Size | 0.688" |
| Length | 1.094" |
| Material | Polypropylene |
| Max. Operating Pressure | 300 psi |
| Mfr. Series | FAST & TITE |
| Min. Operating Temp. | 0°F |
| Operating Temp. Range | 0°F to 212°F |
| Outer Diameter 1 | 1/4" |
| Pipe Size | 1/4" |
| Product Datasheet | parker-p4fe4.pdf |
| Seal Material | Nitrite |
| Series | FAST AND TITE Series |
| Specific Application | Meets Fda And Nsf-51 Requirements |
| System Of Measurement | Inch |
| Thread 1 Size | 1/4" |
| Thread 1 Type | NPT |
Shipping Info:
| Ship height (cm) | 0.64 |
| Ship length (cm) | 2.78 |
| Ship width (cm) | 1.75 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Pipe Size | Hex Size | Max. Operating Pressure | Max. Operating Temp. | Min. Operating Temp. | Fitting Side A Tube Outer Diameter | Color | Fitting Side B Pipe Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| P6FE4 | 1/4" | 13/16" | 150 psi | 100°C | -18°C | 3/8" | Black | 1/4" | €9.05 | |
| P4FE2 | 1/8" | 11/16" | 300 psi | 100°C | -18°C | 1/4" | Black | 1/8" | €7.53 | |
| N4FE2 | 1/8" | 11/16" | 300 psi | 200°F | 40°F | 1/4" | White | 1/8" | €6.79 | |
| N6FE4 | 1/4" | 13/16" | 150 psi | 200°F | 40°F | 3/8" | White | 1/4" | €8.36 | |

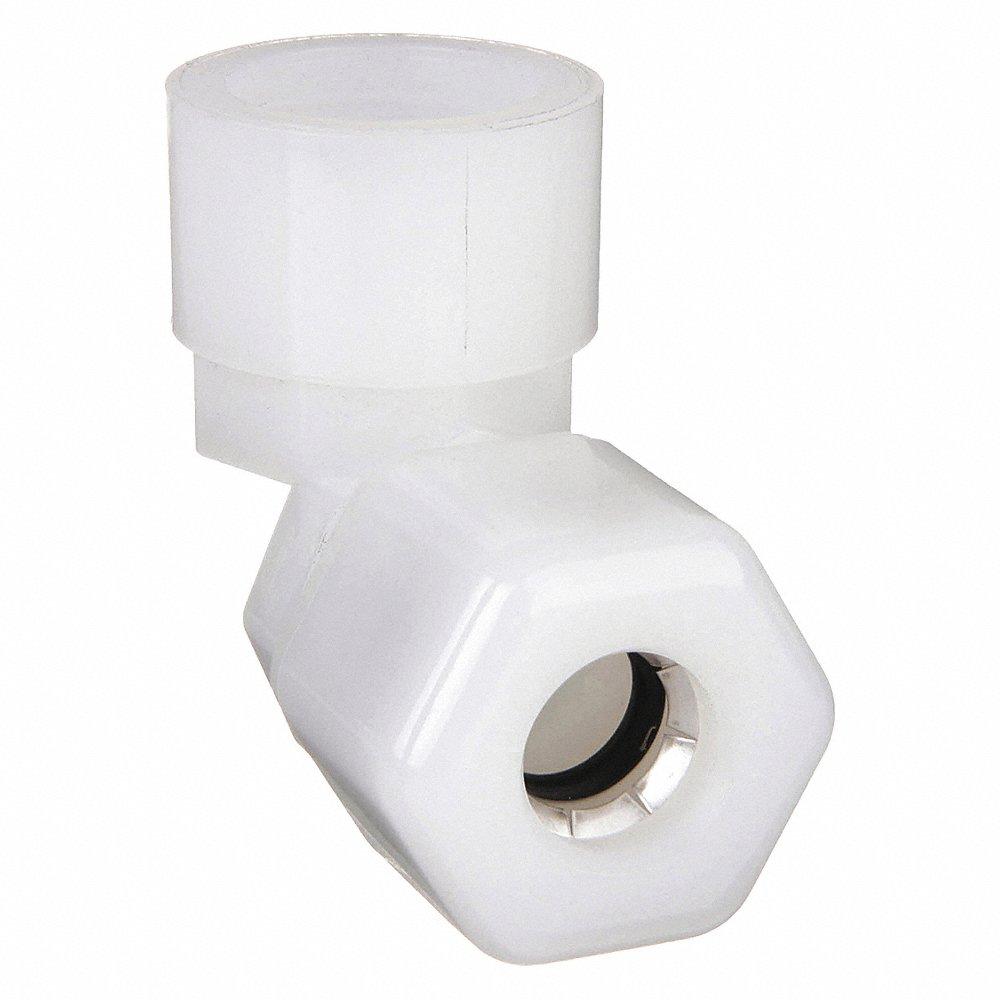

| N6FE6 | 3/8" | 13/16" | 150 psi | 200°F | 40°F | 3/8" | White | 3/8" | €8.35 | |
| N10FE8 | 1/2" | 1 1/8" | 50 psi | 200°F | 40°F | 5/8" | White | 1/2" | €10.75 | |
| P8FE6 | 3/8" | 1" | 150 psi | 212°F | - | 1/2" | Black | 3/8" | €8.68 |
