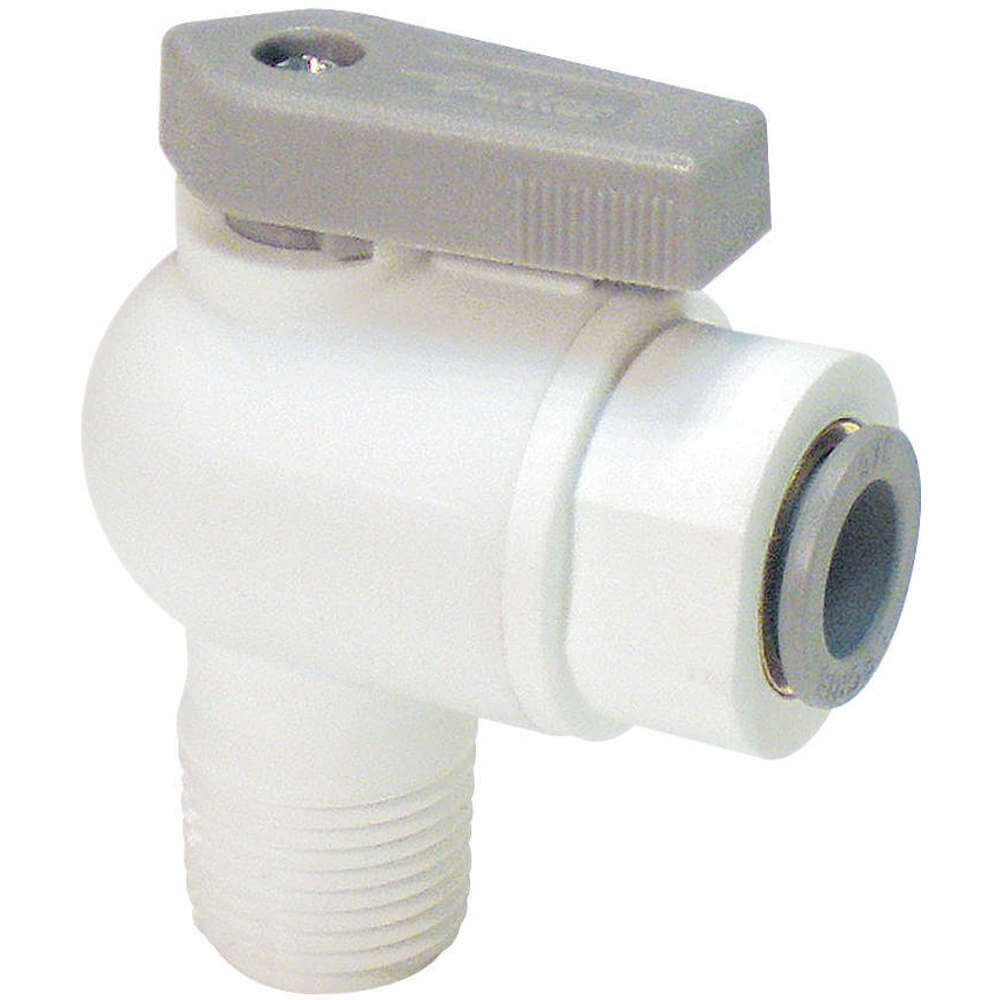

PARKER LFPP6VME8 Ball Valve, 3/8 Inch Outside Diameter, Polypropylene, 90 Deg Elbow
Item: AE6QNLModel: LFPP6VME8Cross Ref: 5UMZ8
7 In Stock
Ships within 2 days via
10.00% off
€22.87 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Agency Compliance | Not Rated |
| Ansi Flange Class | Not Applicable |
| Application | Water, Beverages, Food, Co2 |
| Average Surface Roughness | Not Applicable |
| Ball Material | PSU |
| Ball Opening Size | 0.19" |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | Polypropylene |
| Body Style | Angle |
| Color | White |
| Configuration Sub-type | Male Elbow 90° |
| Configuration Type | Tube To Male |
| Connection Gender - Side 1 | Female |
| Connection Gender Side 2 | Female |
| Connection Size - Side 1 | 1/2" |
| Connection Size - Side 2 | 3/8" |
| Connection Type | Tube x MNPT |
| Connection Type - Side 1 | Push |
| Connection Type - Side 2 | NPT |
| Features | Self-Cleaning |
| Flow Dia. | 0.25" |
| For Media | Water |
| Handle | Lever |
| Handle Color | Gray |
| Handle Material | Acetal |
| Handle Type | Lever |
| Included Mounting | Not Applicable |
| Manufacturer Warranty | 1 yr. |
| Max. Operating Pressure | 150 psi |
| Max. Operating Temp. | 107°C |
| Max. Operating Temp. | 107 Deg C |
| Max. Pressure | 150 psi WOG |
| Max. Pressure (cwp) | 150 psi |
| Max. Pressure (steam) | 150 psi |
| Max. Pressure For Combustible Gas | Not Rated |
| Media Temperature Range | 35°F to 225°F |
| Min. Operating Temp. | -18°C |
| Nominal Valve Size | 3/8" |
| Nsf Certifications For Food And Drinking Water | Nsf 51, Nsf 61 |
| Number Of Pieces | 1 |
| Operating Temp. Range | 35°F to 200°F |
| Overall Length | 1.85" |
| Pipe Schedule Compatibility | Not Applicable |
| Pipe Size | 1/2" |
| Port | Full |
| Pressure For Water | 150 psi WOG |
| Pressure Range | 0 psi to 150 psi |
| Seal Material | EPDM |
| Seat Material | EPDM |
| Series | LIQULFIT BALL VALVE Series |
| Shape | Right Angled Elbow |
| Specific Application | Meets Fda And Nsf-51 Requirements |
| Standards | FDA |
| Stem Material | PSU |
| Stem Type | Blowout Resistant |
| System Of Measurement | Inch |
| Temp. Range | +35°F to +200°F |
| Thread 1 Type | NPT |
| Tube O.d. | 3/8" |
| Tube Size | 3/8" |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Angle |
| Valve Construction | Two-Piece |
| Valve Series | VME Series |
| Valve Type | Ball Valve |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.79 |
| Ship length (cm) | 10.57 |
| Ship width (cm) | 4.57 |
| HS code | 7412200035 |
| Country of Origin | US |
Product Variants
| Product | Model | Ball Material | Connection Type | Overall Length | Shape | Tube O.d. | Body Style | Tube Size | Pipe Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PP4VUC6-MG | PSU | Tube x Tube | 2.55" | Union | 1/4" | Inline | 1/4" x 3/8" | - | €18.44 | |
 |
LFPP4VMC4 | PSU | Tube x MNPT | 2.4" | Connector | 1/4" | Inline | 1/4" | 1/4" | €12.66 | |
|
LFPP4VMC6 | PSU | Tube x MNPT | 2.4" | Connector | 1/4" | Inline | 1/4" | 3/8" | €14.29 | |
|
LFPP6VMC4 | PSU | Tube x MNPT | 2.51" | Connector | 3/8" | Inline | 3/8" | 1/4" | €15.54 | |
|
LFPP6VMC6 | PSU | Tube x MNPT | 2.51" | Connector | 3/8" | Inline | 3/8" | 3/8" | €13.57 | |
 |
LFPP4VFC2 | PSU | Tube x FNPT | 2.04" | Connector | 1/4" | Inline | 1/4" | - | €15.55 | |
|
LFPP4VFC4 | PSU | Tube x FNPT | 2.27" | Connector | 1/4" | Inline | - | 1/4" | €17.81 |
