PARKER LFPP6VMC6 Ball Valve, 3/8 Inch Outside Diameter, Polypropylene, Connector
Item: AE6QMVModel: LFPP6VMC6Cross Ref: 5UMY0
7 In Stock
Ships within 2 days via
5.00% off
€12.40 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Certified | Not Rated |
| Agency Compliance | Not Rated |
| Ansi Flange Class | Not Applicable |
| Application | Water, Beverages, Food, Co2 |
| Average Surface Roughness | Not Applicable |
| Ball Material | PSU |
| Ball Opening Size | 0.19" |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | Polypropylene |
| Body Style | Inline |
| Color | White |
| Configuration Sub Type | Male Connector |
| Configuration Type | Tube To Male |
| Connection Gender Side 2 | Male |
| Connection Gender-side 1 | Female |
| Connection Size-side 1 | 3/8" |
| Connection Size-side 2 | 3/8" |
| Connection Type | Tube x MNPT |
| Connection Type-side 1 | Push |
| Connection Type-side 2 | NPT |
| Features | Self-Cleaning |
| Flow Dia. | 0.25" |
| For Media | Water |
| Handle | Lever |
| Handle Color | Gray |
| Handle Material | Acetal |
| Handle Type | Lever |
| Included Mounting | Not Applicable |
| Max. Operating Pressure | 150 psi |
| Max. Operating Temp. | 107°C |
| Max. Operating Temp. | 107 Deg C |
| Max. Pressure | 150 psi WOG |
| Max. Pressure (cwp) | 150 psi |
| Max. Pressure For Combustible Gas | Not Rated |
| Max. Pressure-steam | 150 psi |
| Media Temp. | 35°F to 225°F |
| Min. Operating Temp. | -18°C |
| No. Of Pieces | 1 |
| Nominal Valve Size | 3/8" |
| Nsf Certifications For Food And Drinking Water | Nsf 51, Nsf 61 |
| Operating Temp. | 35°F to 200°F |
| Overall Length | 2.51" |
| Pipe Schedule Compatibility | Not Applicable |
| Pipe Size | 3/8" |
| Port | Full |
| Pressure | 0 psi to 150 psi |
| Pressure For Water | 150 psi WOG |
| Seal Material | EPDM |
| Seat Material | EPDM |
| Series | LIQULFIT BALL VALVE Series |
| Shape | Connector |
| Specific Application | Meets Fda And Nsf-51 Requirements |
| Stem Material | PSU |
| Stem Type | Blowout Resistant |
| System Of Measurement | Imperial |
| Temp. | +35°F to +200°F |
| Thread 1 Type | NPT |
| Tube Outside Dia. | 3/8" |
| Tube Size | 3/8" |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Series | VMC Series |
| Valve Type | Ball Valve |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10.57 |
| Ship width (cm) | 3.56 |
| HS code | 8481805090 |
| Country of Origin | US |
Product Variants
| Product | Model | Ball Material | Max. Pressure | Pressure | Flow Dia. | Operating Temp. | Configuration Sub Type | Configuration Type | Tube Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

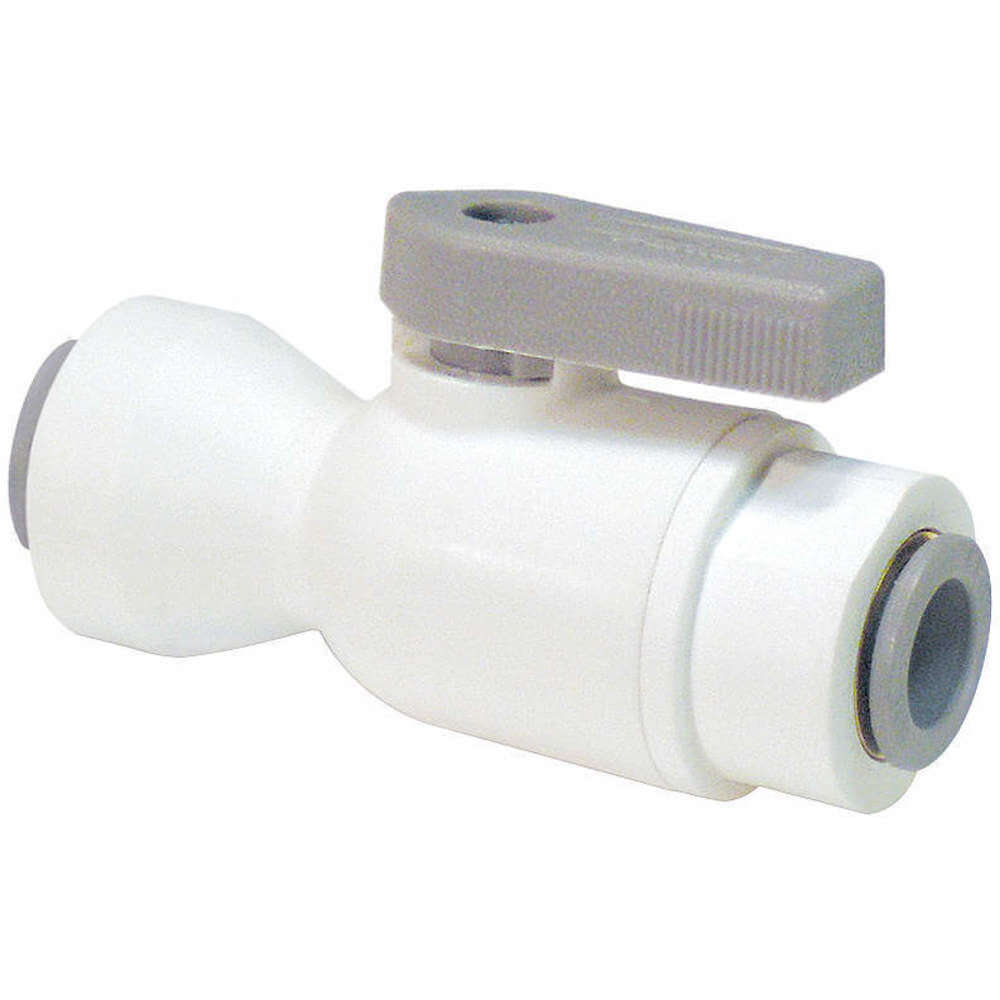

PP4VUC6-MG | PSU | 150 psi WOG | 0 psi to 150 psi | 0.19" | 0°F to 225°F | - | - | 1/4" | €18.45 | |
|

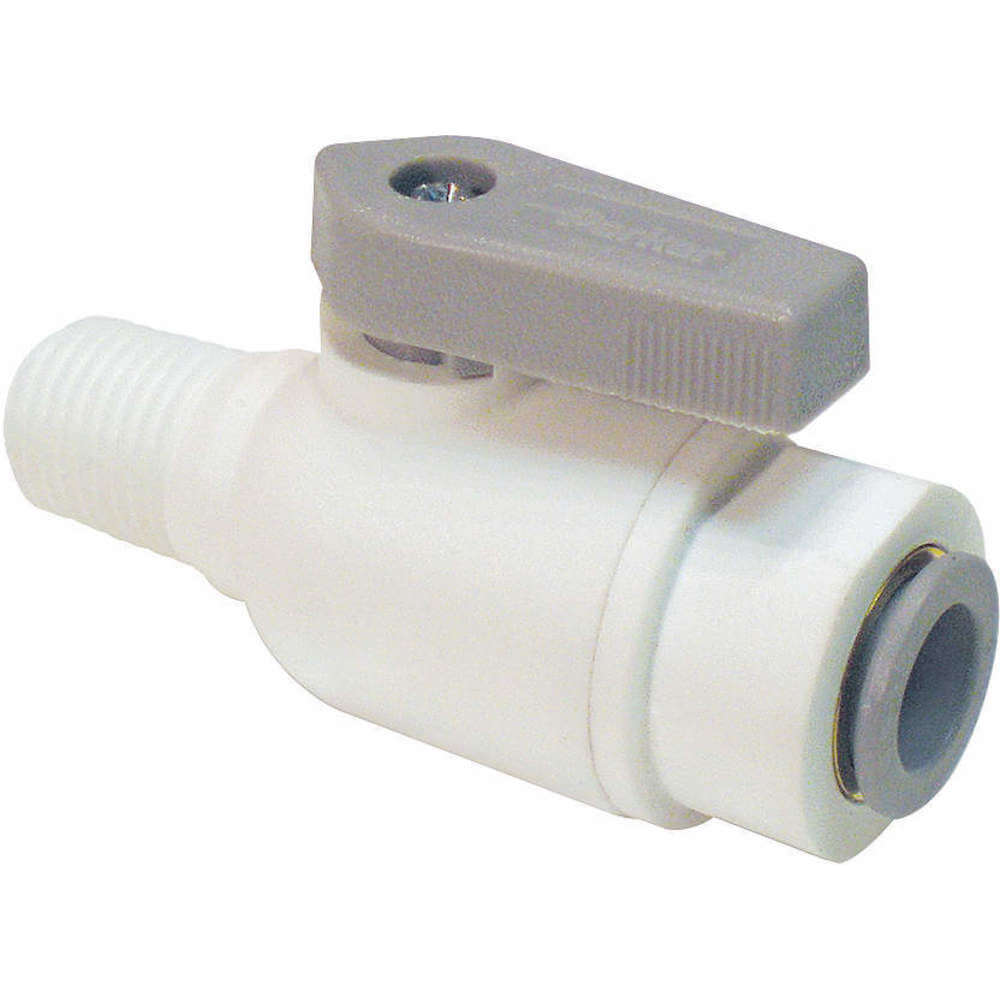

LFPP4VMC4 | PSU | 150 psi WOG | 0 psi to 150 psi | 0.19" | 35°F to 200°F | Male Connector | Tube To Male | 1/4" | €13.04 | |
|
LFPP4VMC6 | PSU | 150 psi WOG | 0 psi to 150 psi | 0.19" | 35°F to 200°F | Male Connector | Tube To Male | 1/4" | €13.06 | |
|
LFPP6VMC4 | PSU | 150 psi WOG | 0 psi to 150 psi | 0.25" | 35°F to 200°F | Male Connector | Tube To Male | 3/8" | €14.72 | |
 |

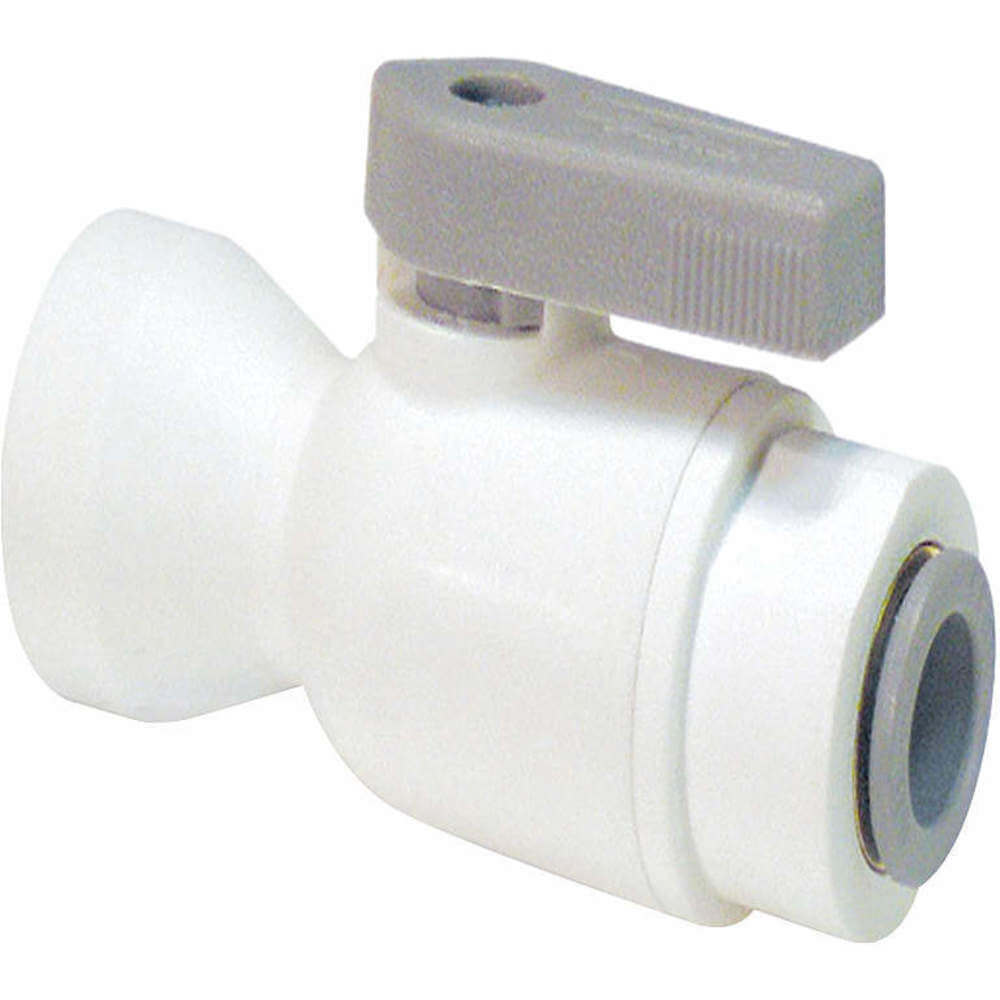

LFPP4VFC2 | PSU | 150 psi WOG | 0 psi to 150 psi | 0.19" | 35°F to 200°F | Female Connector | Tube To Female | 1/4" | €14.65 | |
|
LFPP4VFC4 | PSU | 150 psi WOG | 0 psi to 150 psi | 0.19" | 35°F to 200°F | Female Connector | Tube To Female | 1/4" | €16.34 | |
|
LFPP4VFC6 | PSU | 150 psi WOG | 0 psi to 150 psi | 0.19" | 35°F to 200°F | Female Connector | Tube To Female | 1/4" | €16.73 |
