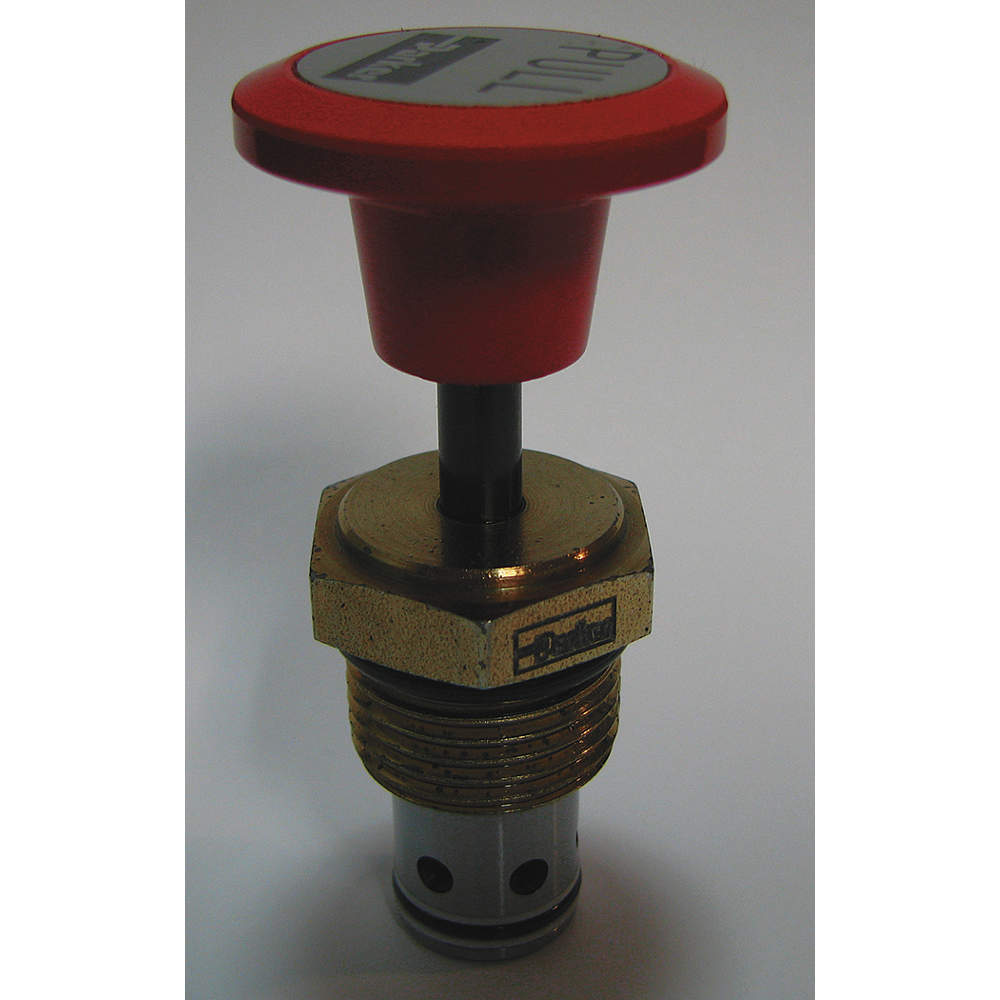

PARKER DL101K Cartridge Valve Nc Poppet 13 Gpm
Item: AD7DBBModel: DL101KCross Ref: 4DML4
7 In Stock
Ships within 2 days via
10.00% off
€212.19 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cartridge Valve |
| Actuation Mechanism | Manual |
| Adjustment Method | Knob |
| Application | Used To Block Flow In One Direction |
| Body Finish | Zinc Plated |
| Body Material | Steel |
| Cartridge Material | Steel |
| Cartridge Valve Item | Cartridge Valve |
| Center Position | Not Applicable |
| Control Direction | One-Way |
| Filter Media | Not Applicable |
| Filter Rating | Not Applicable |
| Flow Rate | 13 GPM |
| Fluid Service | Mineral Oil, Synthetic Oil |
| For Media | Mineral Oil, Synthetic Oil |
| Includes Filter | Filter Not Included |
| Includes Seals | Seals Included |
| Leakage | 0.25 cc/min. |
| Max. Flow | 13 GPM |
| Max. Flow Gpm | 13 |
| Max. Pressure | 3500 psi |
| Maximum Fluid Viscosity | 2000 SUS |
| Maximum Inlet Pressure | 3500 psi |
| Maximum Operating Temperature | 250°F |
| Maximum Pressure Setting | 3500 psi |
| Minimum Operating Temperature | -30°F |
| Mounting | Block Mounted |
| Number Of Positions | 2 |
| Number Of Ways | 2 |
| Overall Height | 1.66" |
| Overall Length | 2.91" |
| Overall Width | 1" |
| Port Connection Gender | Not Applicable |
| Port Connection Size | Not Applicable |
| Port Connection Type | Not Applicable |
| Port-to-port Length | Not Applicable |
| Seal Material | Nitrile |
| Valve Action | Normally Closed |
| Valve Cavity Size | C10 2 |
| Valve Control | Directional Control |
| Valve Type | Normally Closed Manual Poppet |
| Venting | Not Applicable |
| Way | 2 |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 7.39 |
| Ship width (cm) | 4.22 |
| HS code | 8481801050 |
| Country of Origin | MX |
Product Details:
- Valve Cavity (C10-2)
Product Variants
| Product | Model | Max. Flow | Flow Rate | Valve Type | Number Of Positions | Valve Cavity Size | Price | |
|---|---|---|---|---|---|---|---|---|
 |

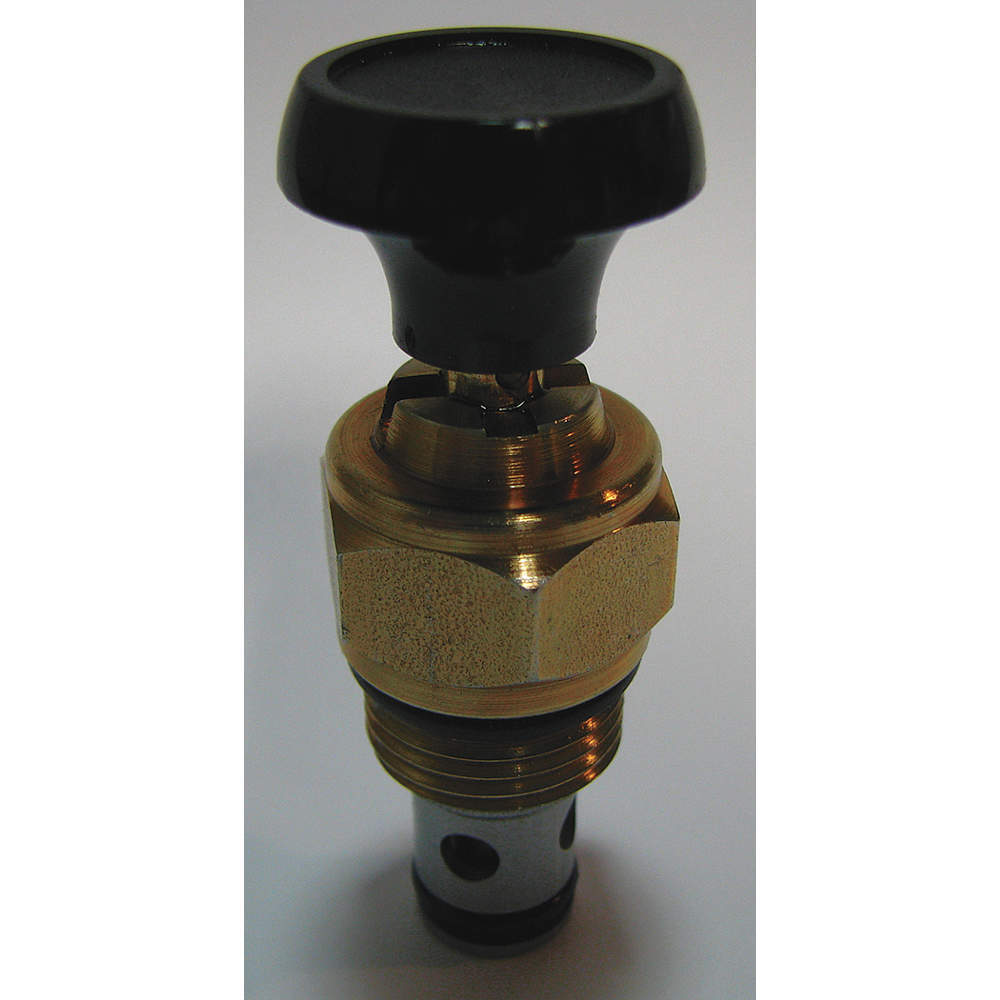

DL081K | 8 GPM | 8 GPM | Normally Closed Manual Poppet | - | - | €196.65 |
