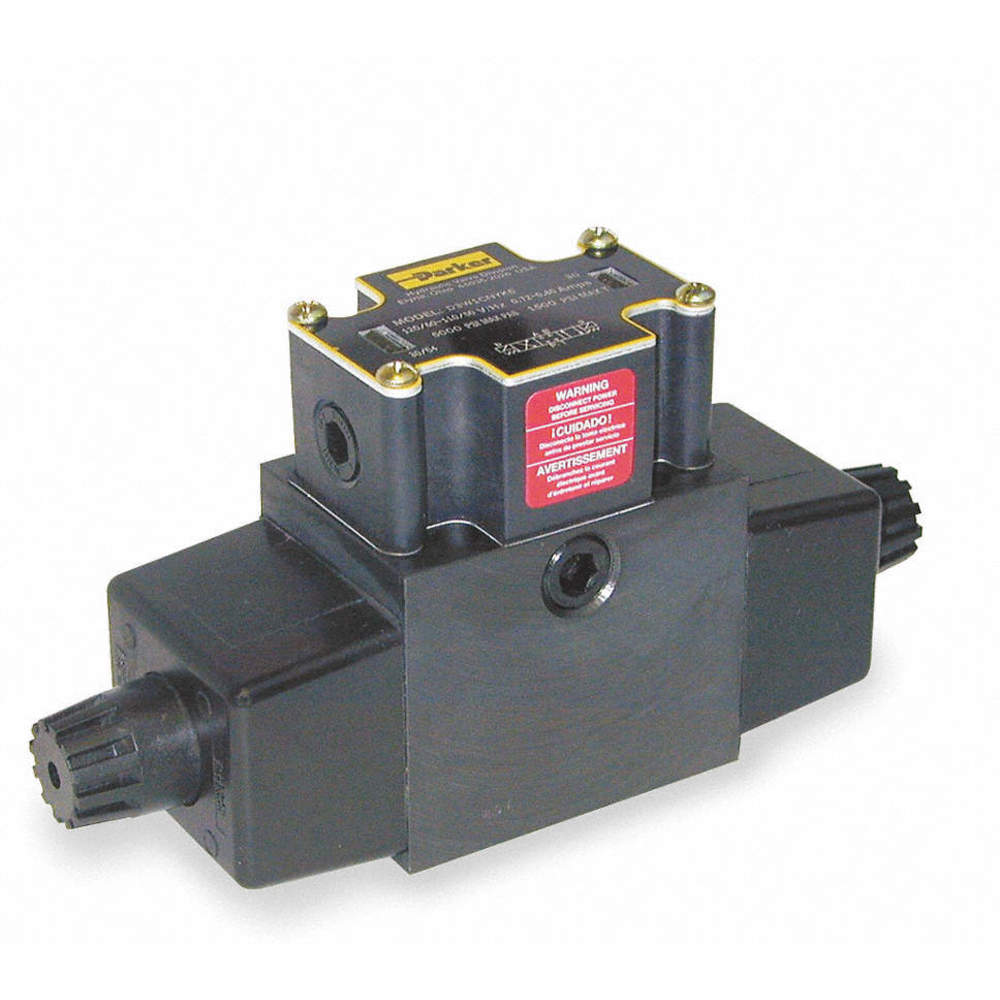

PARKER D3W009CNYK5 Hydraulic Directional Valve, 12 gpm Max Flow Rate, D05 NFPA Size, Three Positions, 115V AC
Get it by Tuesday, Jul 7
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€609.59 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Directional Valve |
| Coil Voltage | 110-120V AC |
| Flow Rate | 12 GPM |
| Frequency | 50/60 Hz |
| Gpm @ 3000 Psi | 12 GPM |
| Height | 5.06" |
| Holding Amps | 95VA |
| Holding Amps | 95 VA |
| Inrush Amps | 3.5 |
| Inrush Amps | 3.5A |
| Length | 9.85" |
| Max. Pressure | 5000 psi |
| Max. Tank Pressure | 1500 psi |
| Max. Tank Pressure (psi) | 1500 |
| No. Of Positions | 3 |
| No. Of Ways | 4 |
| Number Of Positions | 3 |
| Number Of Ways | 4 |
| Seal Type | Nitrile O Ring |
| Spool Type | Tandem |
| Valve Type | Solenoid Operated |
| Width | 2 19/25" |
Shipping Info:
| Ship weight (kg) | 5.33 |
| Ship height (cm) | 7.01 |
| Ship length (cm) | 25.02 |
| Ship width (cm) | 12.85 |
| HS code | 8481200020 |
| Country of Origin | US |
Product Variants
| Product | Model | Center Position | Flow Rate | Spool Type | Holding Amps | Inrush Amps | Gpm @ 3000 Psi | Seal Material | Max. Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

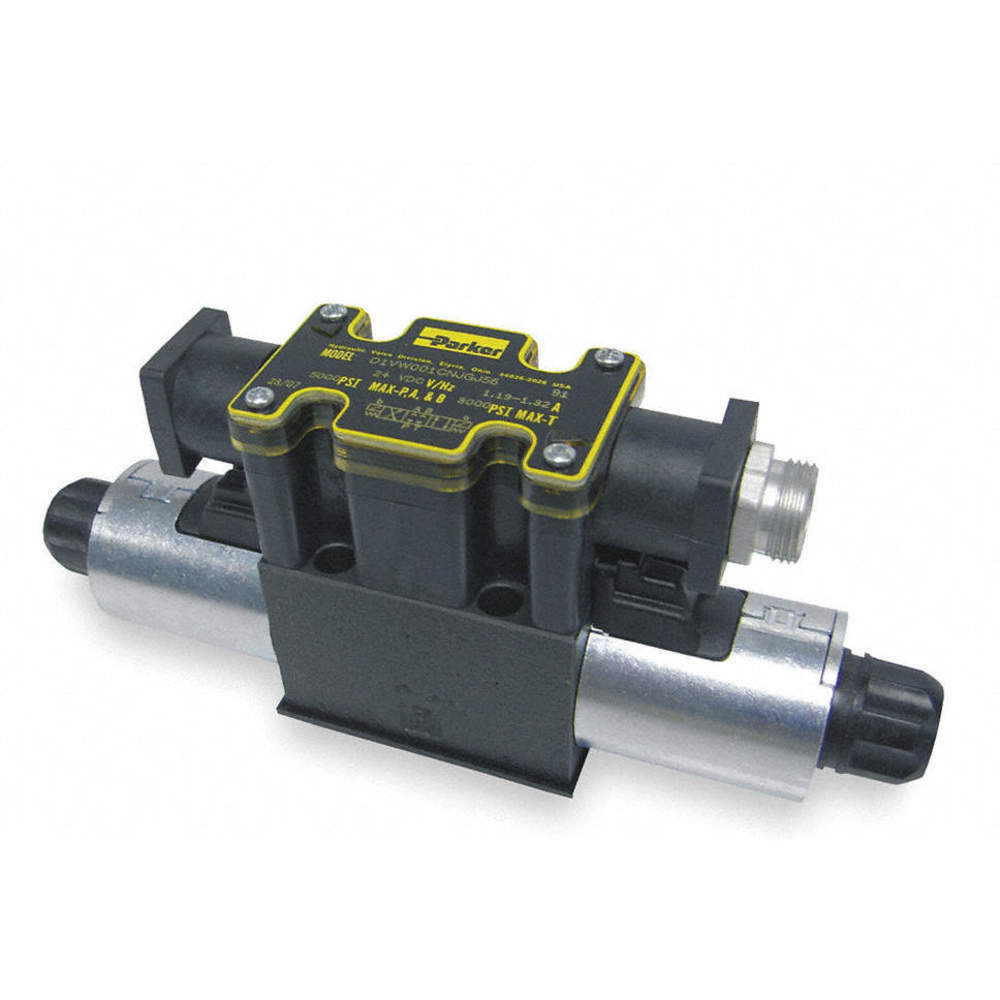

D1VW004CNYGF5 | Float Center | - | Float | 0.42A | 1.4A | 12 GPM | NBR | 5000 psi | €580.94 | |
|
D1VW009CNYGF5 | Tandem Center | 12.5 GPM | - | 0.42A | 1.4A | 12.5 GPM | NBR | 5000 psi | €528.23 | |
 |

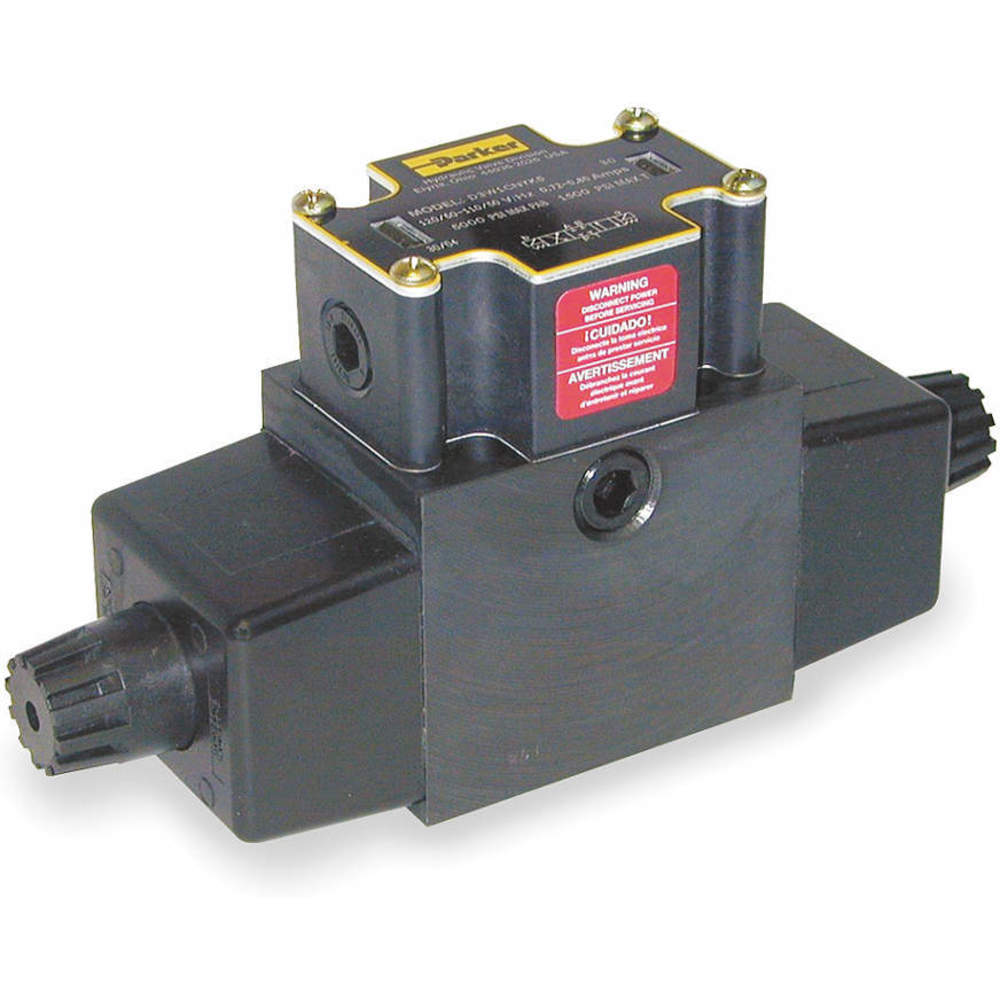

D3W001CNYK5 | Closed | 28 GPM | - | 95 VA | 3.5A | - | Nitrile | 5000 psi | €571.03 | |
 |
MBV1SPSA | - | - | - | - | - | - | - | - | €328.48 | |
 |

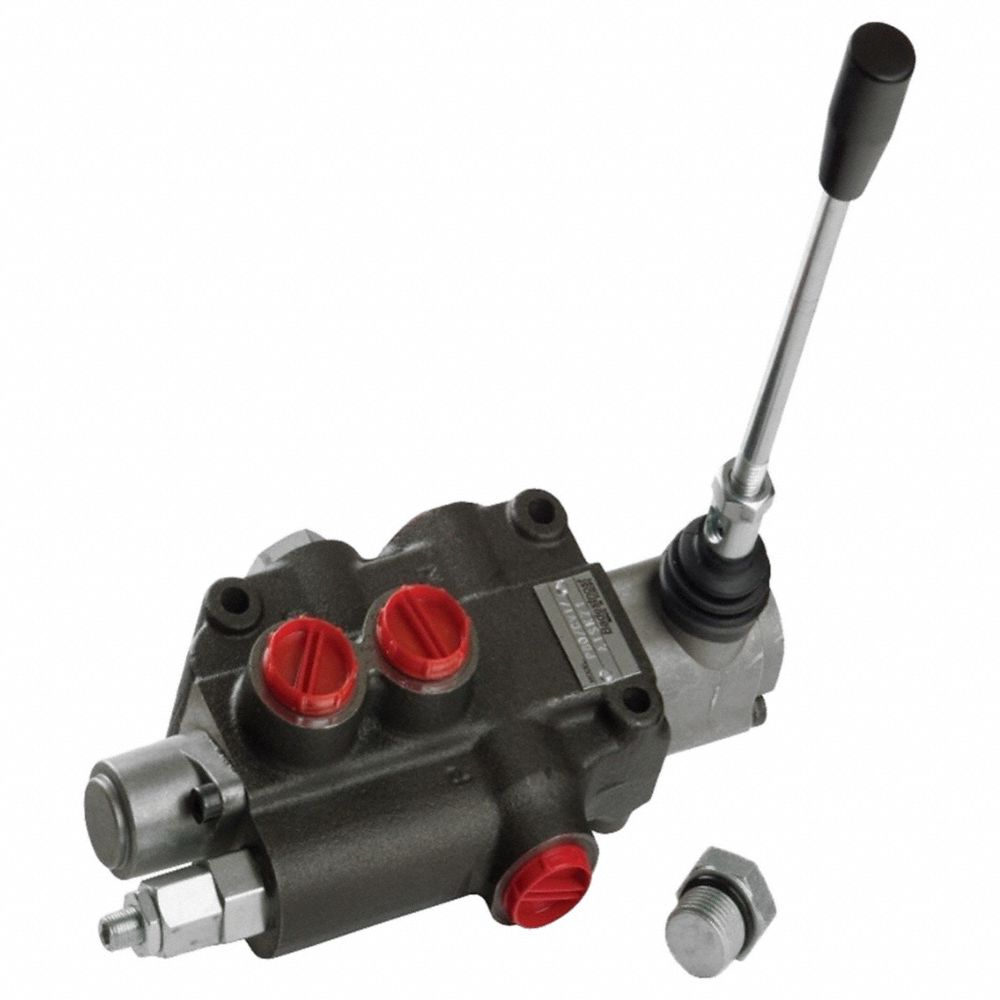

MBV1SPCONVDET | - | - | - | - | - | - | - | - | €242.28 | |
|
MBV1SPDET | - | - | - | - | - | - | - | - | €339.62 | |
 |

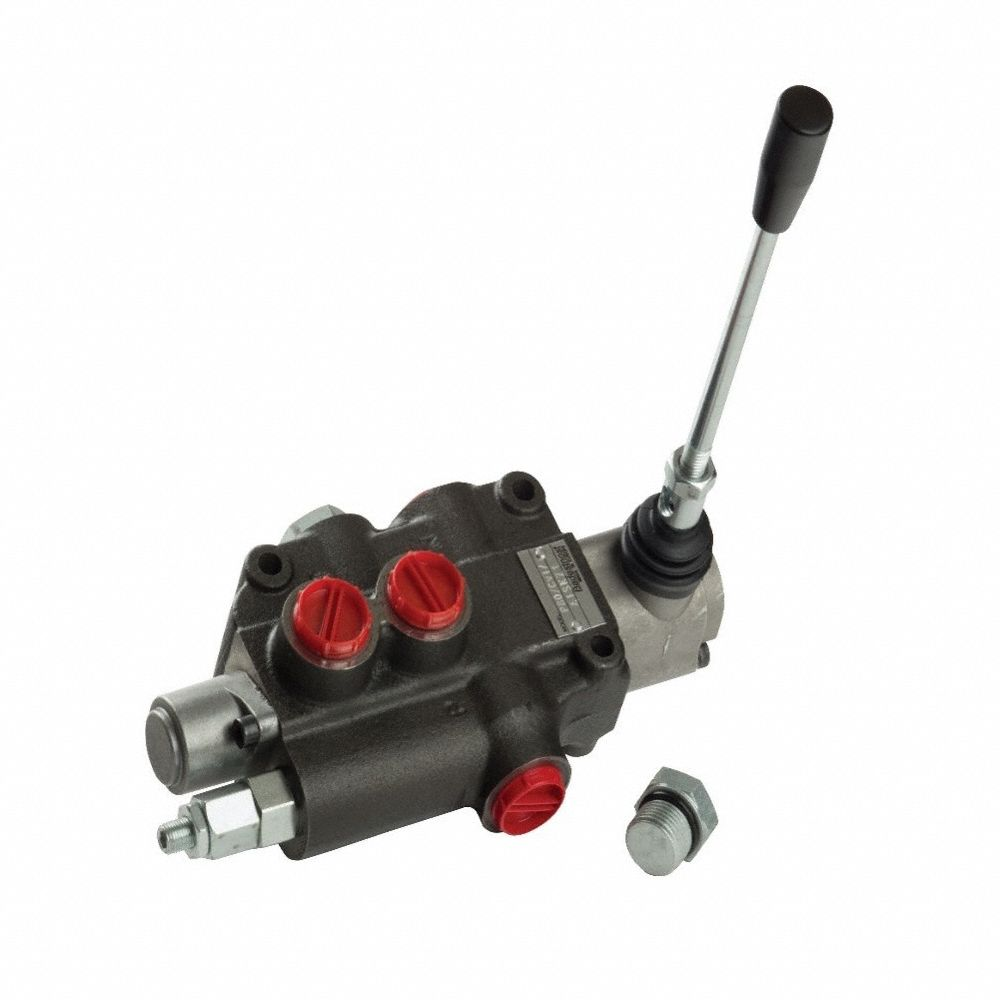

MBV1SP60 | - | - | - | - | - | - | - | - | €228.92 |
