PARKER D1VW004CNYGF5 Directional Valve Solenoid Float 120 VAC
Item: AC2WKRModel: D1VW004CNYGF5Cross Ref: 2NMU4
7 In Stock
Ships within 2 days via
5.00% off
€551.90 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Directional Valve |
| Center Position | Float Center |
| Center Position-hydraulic Valves | Float |
| Coil Voltage | 110-120V AC |
| Electrical Connection Type | Conduit Box Plug In |
| Frequency | 50/60 Hz |
| Gpm @ 3000 Psi | 12 GPM |
| Height | 3.81" |
| Holding Amps | 0.42 |
| Holding Amps | 0.42A |
| Included Seals | Seals Included |
| Inrush Amps | 1.4 |
| Inrush Amps | 1.4A |
| Length | 8.3" |
| Max. Flow Rate3 | 12 GPM |
| Max. Operating Temp. | 140°F |
| Max. Pressure | 5000 psi |
| Max. Tank Pressure | 1500 psi |
| Max. Tank Pressure (psi) | 1500 |
| Min. Operating Temp. | -4°F |
| Nfpa Size | D03 |
| No. Of Positions | 3 |
| No. Of Ways | 4 |
| Number Of Positions | 3 |
| Number Of Ways | 4 |
| Overall Height | 3.81" |
| Overall Length | 8.3" |
| Overall Width | 1.81" |
| Return Mechanism | Solenoid |
| Return Type-hydraulic Valves | Spring Centered |
| Seal Material | NBR |
| Seal Type | Nitrile O Ring |
| Series | D1VW Series |
| Spool Type | Float |
| Valve Control | Directional Control |
| Valve Type | Ball |
| Voltage | 115V AC |
| Width | 1.81" |
Shipping Info:
| Ship weight (kg) | 2.12 |
| Ship height (cm) | 4.6 |
| Ship length (cm) | 21.08 |
| Ship width (cm) | 9.68 |
| HS code | 8481809005 |
| Country of Origin | US |
Product Variants
| Product | Model | Overall Height | Overall Width | No. Of Ways | Center Position | Max. Flow Rate | Max. Pressure Setting | No. Of Spools | Spool Action | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
D1VW009CNYGF5 | 3.81" | 1.81" | 4 | Tandem Center | - | - | - | - | €528.23 | |
 |
D3W009CNYK5 | - | - | 4 | - | - | - | - | - | €641.68 | |
 |
D3W001CNYK5 | 5.06" | 2 19/25" | 4 | Closed | 28 GPM | - | - | - | €571.03 | |
 |

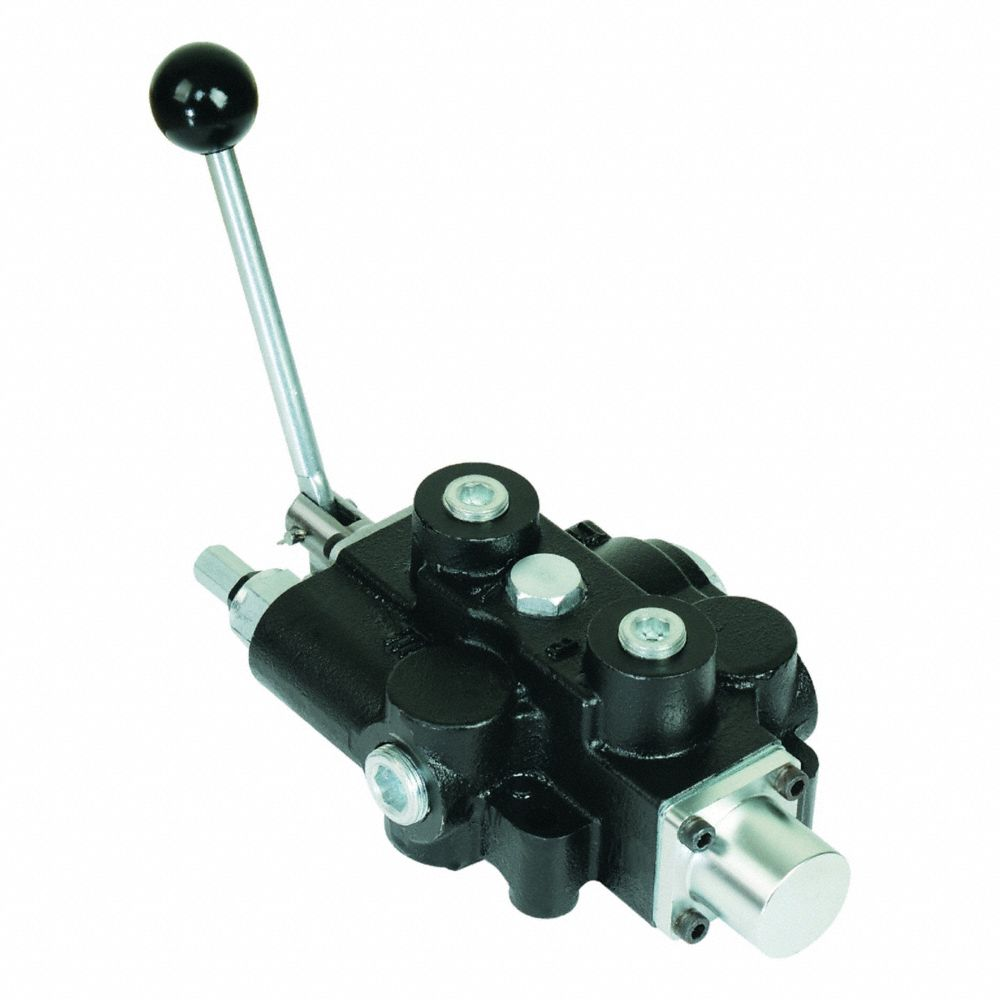

MBV1SPSA | - | - | 3 | Open Center | 30 GPM | 3000 psi | 1 | Spring Center To Neutral | €328.48 | |
 |

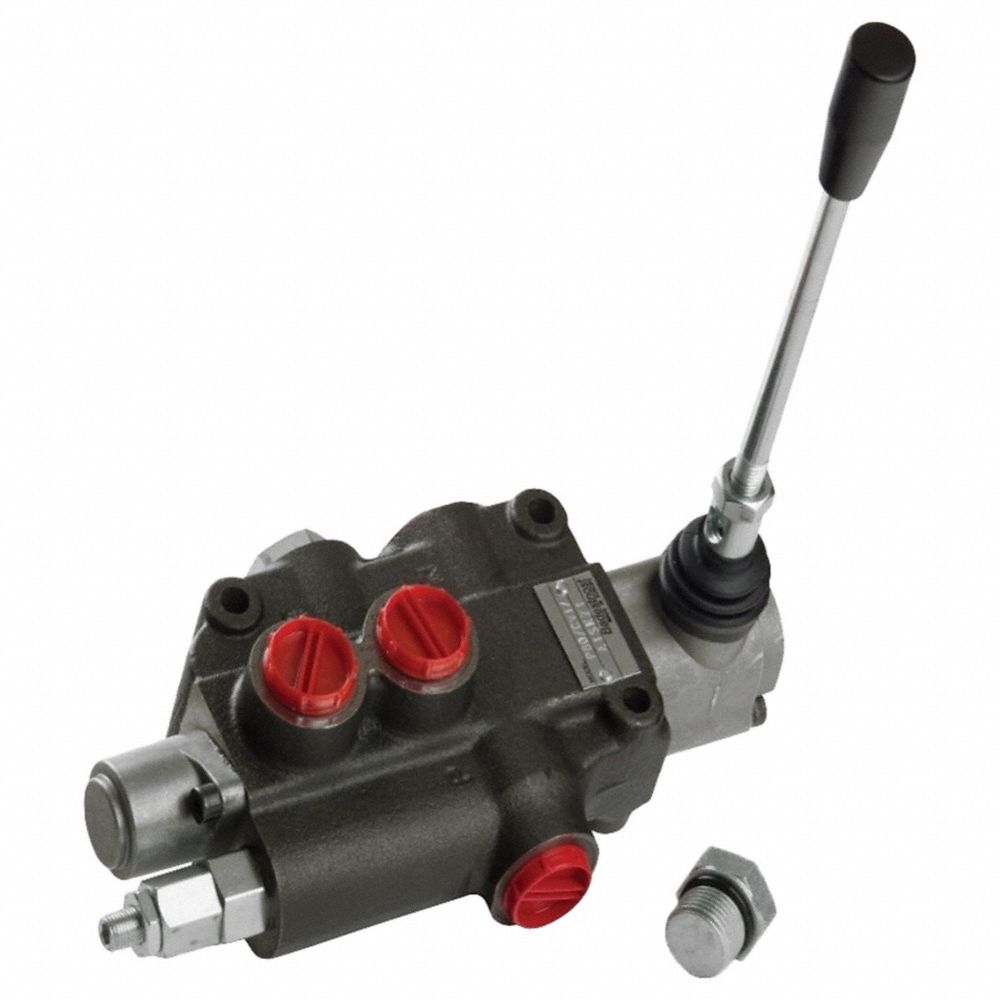

MBV1SPCONVDET | - | - | 4 | Open Center | 20 GPM | 3500 psi | 1 | Detent | €269.20 | |
|
MBV1SPDET | - | - | 4 | Open Center | 30 GPM | 3000 psi | 1 | Detent | €339.62 | |
 |

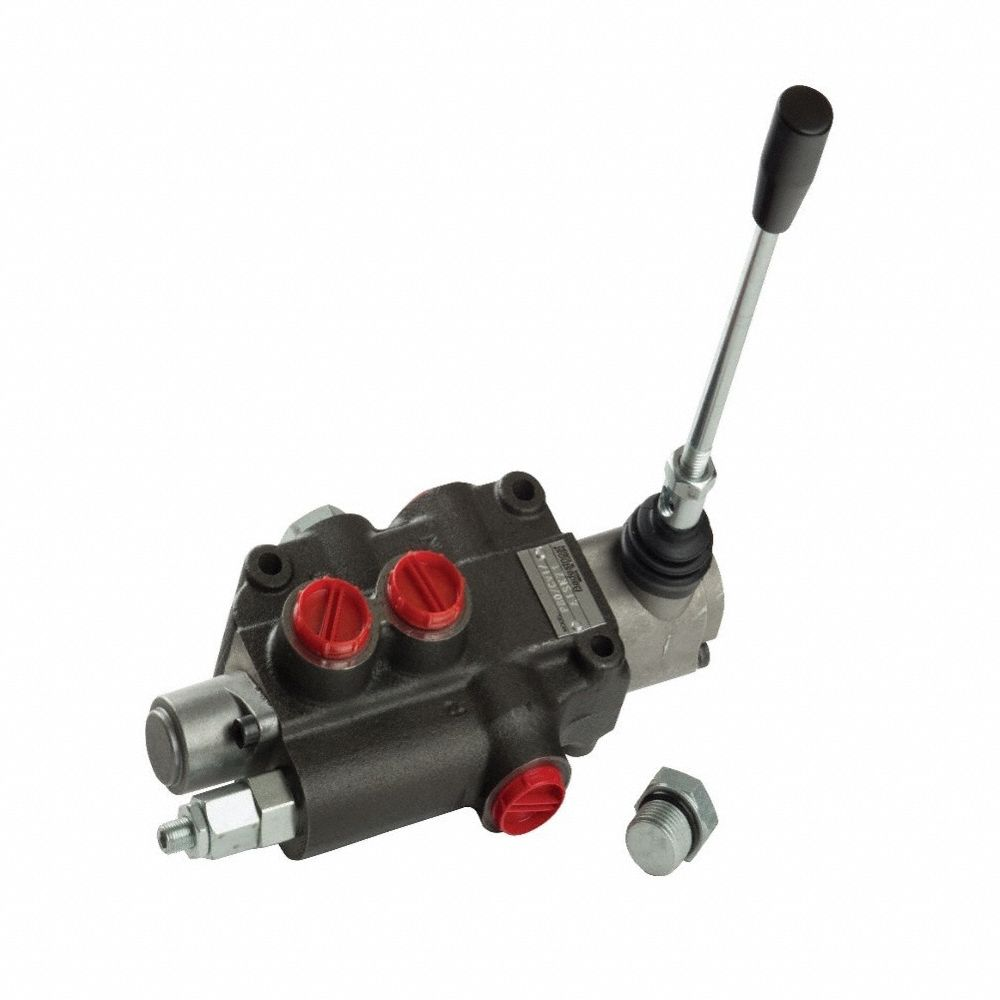

MBV1SP60 | - | - | 4 | Open Center | 16 GPM | 3500 psi | 1 | Spring Center To Neutral | €254.35 |
