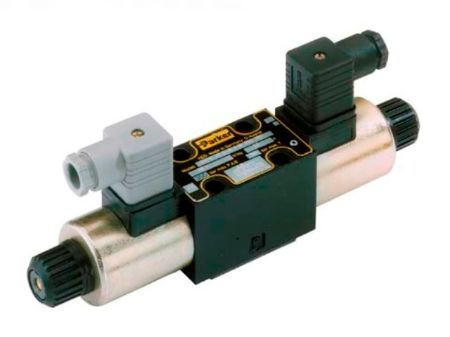

PARKER D1VW020DNYC Solenoid Valve, 4 Way, 2-Position 4/2 Directional Control Hydraulic
Get it by Thursday, Aug 20
€903.70 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Solenoid Valve |
| Ambient Air Temp. For Operation | -25°C to +60°C |
| Connection Type | NFPA Pattern D03 Wiring Chamber With 1/2" NPT Cond. Opening |
| Control Voltage (ac) | 110/120V AC (50/60 Hz) |
| Degree Of Protection | IP67 NEMA 4 |
| Design | Manual Override Circuit Diagram "020D" Class F Coil For Oil Media |
| Flow Rate | 21 GPM |
| Function | Hydraulic Direct-Acting Double Solenoid Valve |
| Main Function | Valve (Electrically Actuated) |
| Material | Ductile Iron Body NBR Seal |
| Max. Operating Pressure | 5000 psi |
| Media Temp. | -25°C to +70°C |
| Mounting Mode | Mounting On Sub Plate |
| Power Consumption | 30 W |
| Tank Pressure | 1500 psi |
| Valve Function | 4-Way 2-Positions (4/2) Directional Control Mech. Detent Dual Operator Bistable |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Tank Pressure | Material | Power Consumption | Max. Flow Rate | Ip Rating | Flow Rate | Max. Operating Pressure | No. Of Ways | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| D1VW020DNJG5 | 3000 psi | Ductile Iron Bodynbr Seal | 30 W | 78 LPM | IP67 | - | 5000 psi | 4 | €906.22 | |
| D1VW020DNYCF | 1500 psi | Ductile Iron Bodynbr Seal | 23 W | 45 LPM | IP67 | - | 5000 psi | 4 | €886.74 | |
| D1VW020DNYG5 | 1500 psi | Ductile Iron Bodynbr Seal | 30 W | 80 LPM | IP67 | - | 5000 psi | 4 | €906.22 | |
| D1VW020DNYW | 1500 psi | Ductile Iron Bodynbr Seal | 30 W | 80 LPM | IP65 | - | 5000 psi | 4 | €837.41 | |
| D1VW020DNYWF | 1500 psi | Ductile Iron Bodynbr Seal | 23 W | 45 LPM | IP65 | - | 5000 psi | 4 | €837.41 | |
| D1VW020DNJC | 3000 psi | Ductile Iron Body NBR Seal | 30 W | - | - | 78 LPM | 5000 psi | - | €903.70 |
