GENERAL ELECTRIC TED Series Circuit Breakers


General Electric TED Series circuit breakers safeguard electrical equipment, machinery and power distribution systems from overloads & short circuits.

Filter
GENERAL ELECTRIC TED124010WLA
GENERAL ELECTRIC TED113Y100B
GENERAL ELECTRIC TED124040WLC

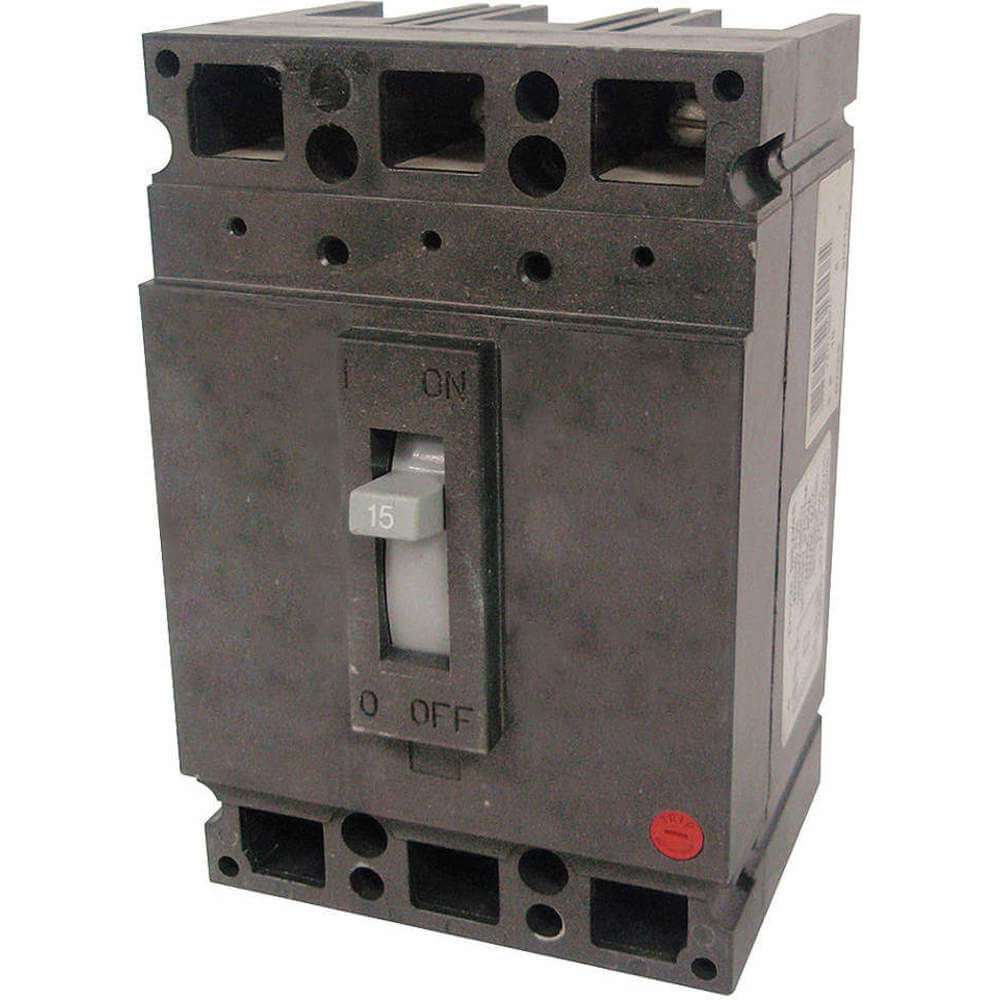

GENERAL ELECTRIC TED124015WLD
StyleModelAmpsMin. Wire SizeDc VoltageMax. Wire SizeVoltageAic RatingCircuit Breaker TypeFrame SizePrice
A
TED124010WL		----480V18 kAIC @ 480V--€224.91
RFQ
B
TED113Y100		----277V14 kAIC @ 240V--€277.47
RFQ
C
TED124040WL		-12 AWG, 14 AWG250V DC1/0 AWG, 3 AWG--Standard150A/TED€1,357.95
C
TED124060WL		-12 AWG, 14 AWG250V DC1/0 AWG, 3 AWG--Standard150A/TED€1,470.77
D
TED124015WL		15A14 AWG250V DC8 AWG--Standard150A/TED€1,470.77
C
TED124020WL		20A14 AWG250V DC8 AWG--Standard150A/TED€1,370.68
C
TED124025WL		25A14 AWG250V DC8 AWG--Standard150A/TED€1,319.03
C
TED124030WL		30A14 AWG250V DC8 AWG--Standard150A/TED€1,357.95
C
TED124035WL		35A12 AWG, 14 AWG250V DC1/0 AWG, 3 AWG--Standard150A/TED€1,428.58
C
TED124045WL		45A12 AWG, 14 AWG250V DC1/0 AWG, 3 AWG--Standard150A/TED€1,428.58
C
TED124050WL		50A12 AWG, 14 AWG250V DC1/0 AWG, 3 AWG--Standard150A/TED€1,357.95
C
TED124070WL		70A4 AWG, 6 AWG250V DC2 AWG--Standard150A/TED€1,711.71

TED Series Circuit Breakers

General Electric TED Series moulded case circuit breakers provide overcurrent and short circuit protection when used with GE panelboards. These feed-thru breakers feature a thermal magnetic trip for instantaneous and long-time overcurrent protection and a toggle actuator for manual tripping operation & indicating the status of the trip. They are equipped with line & load side lug terminals to accommodate aluminium and copper wires of sizes between 14 AWG and 2/0 AWG. Selected models feature bolt-on mounting style for installation in vertical or horizontal orientation. These TED circuit breakers are available in 277VAC & 480VAC voltage ratings on Raptor Supplies.

Features

  • General Electric TED Series circuit breakers offer a thermal-magnetic trip to provide instantaneous and long-time overcurrent protection.
  • They feature a feed-thru facility for easy mounting to switchboards & panelboards allowing quick installation.
  • These single-phase moulded case circuit breakers have load and line lugs terminals for better cable connection.
  • They are equipped with 2-poles and have amperage ratings ranging from 10A to 100A.

Standards and Approvals

  • CSA
  • UL

Frequently Asked Questions

What wire sizes can these circuit breakers accommodate?

They can accommodate wire sizes ranging from 14 to 1/0 AWG aluminium wires and 14 to 3 AWG copper wires.

What is the interrupt rating of General Electric TED Series circuit breakers?

These circuit breakers have an interrupt rating of 18kAIC at 480V.

How to maintain these circuit breakers?

  • Conduct regular visual inspections to check for loose or damaged connections.
  • Keep the circuit breakers clean by removing dirt and debris periodically.
  • Ensure terminal connections are tight and secure to prevent overheating.
  • Test the circuit breakers periodically to verify proper tripping and resetting.
