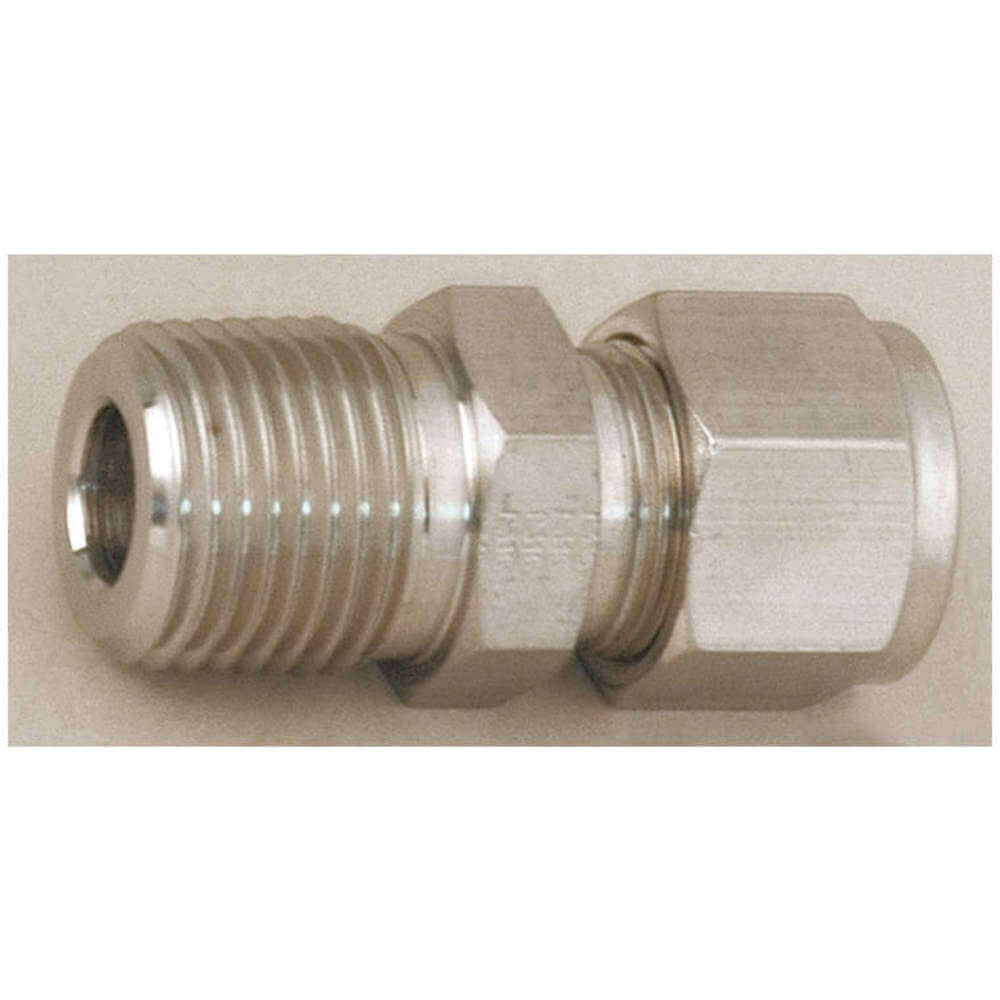

PARKER 8MSC8N-S Compression Fitting, Two Ferrule Compression, 1/2 Inch Size, Steel
Item: AB4CJLModel: 8MSC8N-SCross Ref: 1WVR9
7 In Stock
Carbon Steel
6700 psi
1/2"
1/2"
Ships within 2 days via
10.00% off
€36.32 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Fitting |
| Application | Compressed Natural Gas, Fuels, Gases, Hydrogen, Liquids, Oils, Petroleum Oil, Steam |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Adapter |
| Body Material | Carbon Steel |
| Compression Thread Size | 1/2" |
| Configuration Sub-type | Male Connector Flareless, NPT |
| Configuration Type | Straight |
| Connection Type | Compression x MNPT |
| End 2 Size | 1/2" |
| End 2 Type | NPT |
| Ferrule Type | Double |
| Finish | Zinc Plated |
| Finish/coating | Zinc Plated |
| Fits Brand | A-Lok |
| Fitting Material | Steel |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 1/2" |
| Fitting Side B Connection Type | MNPT |
| Fitting Side B Pipe Size | 1/2" |
| Hex Size | 7/8" |
| Material | Steel |
| Max. Operating Pressure | 6700 psi |
| Max. Pressure | 6200 psi |
| Maximum Operating Temperature | 800°F |
| Minimum Operating Temperature | 20°F |
| Overall Length | 1 15/16" |
| Pipe Size | 1/2" |
| Product Datasheet | parker-8msc8n-s.pdf |
| Resistance Properties | Corrosion Resistant, Gall Resistant |
| Series | A LOK Series |
| Shape | NPT Male Connector |
| Specific Fitting Shape | Straight Adapter |
| Specific Pipe Fitting Shape | Connector |
| Style | Tube To Male Pipe |
| System Of Measurement | Imperial |
| Temp. Range | -20°F to +800°F |
| Thread Size A | 3/4"-20 |
| Tube Fitting/adapter Type | Bite Type, A Lok Double Ferrule Flareless |
| Tube Size | 1/2" |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.22 |
| Ship length (cm) | 4.92 |
| Ship width (cm) | 2.22 |
| HS code | 7307995045 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Pipe Size | Fitting Material | Connection Type | Temp. Range | Material | Tube Size | Basic Material | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4MSC2N-316 | 1/8" | Stainless Steel | A LOK x MNPT | -425°F to +1200°F | Stainless Steel | 1/4" | Metal | 1 9/32" | €34.54 | |
| 4MSC4N-316 | 1/4" | Stainless Steel | Two Ferrule | -425°F to +1200°F | Stainless Steel | 1/4" | Metal | 1 1/2" | €31.55 | |
| 4MSC6N-316 | 3/8" | Stainless Steel | A LOK x MNPT | -425°F to +1200°F | Stainless Steel | 1/4" | - | 1 1/2" | €48.21 | |
| 4MSC8N-316 | 1/2" | Stainless Steel | Two Ferrule | -425°F to +1200°F | Stainless Steel | 1/4" | Metal | 1 3/4" | €65.23 | |
| 6MSC4N-316 | 1/4" | Stainless Steel | Two Ferrule | -425°F to +1200°F | Stainless Steel | 3/8" | Metal | 1 9/16" | €45.85 | |
| 6MSC6N-316 | 3/8" | Stainless Steel | Two Ferrule | -425°F to +1200°F | Stainless Steel | 3/8" | Metal | 1 9/16" | €48.48 | |
| 6MSC8N-316 | 1/2" | Stainless Steel | Two Ferrule | -425°F to +1200°F | Stainless Steel | 3/8" | Metal | 1 13/16" | €66.24 |
