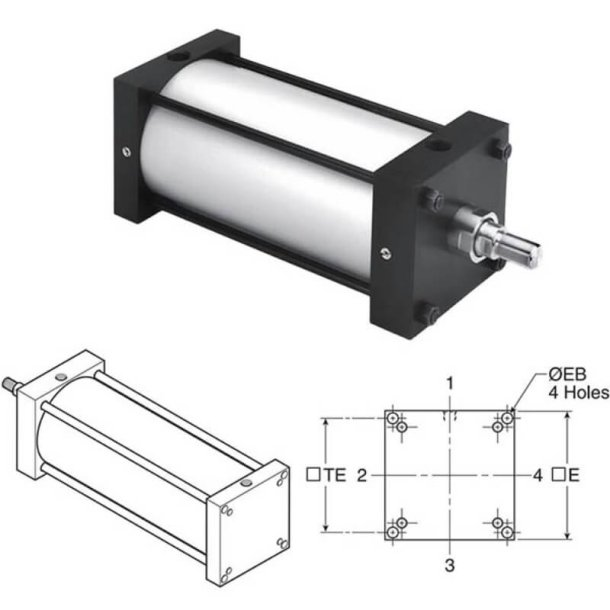

PARKER 8.00HB4MAU38A08.00 Pneumatic Cylinder
Get it by Friday, Aug 21
€2,220.83 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 8" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 x 3/4" NPT Threaded Pneumatic Ports 1 1/2"-12 UNF Male Intermediate Threaded Rod-End , 2 x 3/4" NPT Threaded Pneumatic Ports 1-1/2"-12 UNF Male Intermediate Threaded Rod End |
| Design | Lipseal Piston Intermediate Male Rod End Thread NFPA Interchangeable Model Repairable |
| Dia. | 1 3/4" |
| Function | Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Cap Square Mounting (NFPA ME4) |
| Mounting Mode | Cap Square Mounting NFPA ME4 |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Rod Dia. | 1 3/4" |
| Shape | Rectangular |
| Stroke Length | 8" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Dia. | Mounting | Max. Air Service Pressure | Bore Size | Pressure | Shape | Rod Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
8.00HB4MA3U14A04.00 | 4" | 1 3/8" | Cap Square Mounting (NFPA ME4) | 250 psig | 8" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | - | €1,675.15 | |
 |
8.00TB4MAU14A14.50 | - | - | - | - | - | - | - | - | - | RFQ
|
 |
8.00JB4MAU14AC18.00 | 18" | 1 3/8" | Head Square Mounting (NFPA ME3) | 250 psig | 8" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | - | €2,183.73 | |
 |
8.00BC4MAU18A10.00 | 10" | 1 3/8" | Cap Detachable Clevis Mounting (NFPA MP2) | 250 psig | 8" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | - | €1,883.76 | |
 |
8.00HB4MAU14A08.00 | 8" | 1 3/8" | Cap Square Mounting (NFPA ME4) | 250 psig | 8" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | - | €1,724.65 | |
 |
8.00CF4MAU19AC10.00 | 10" | 1 3/8" | Side Tap Mounting (NFPA MS4) | 250 psig | 8" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | - | €1,954.95 | |
 |
8.00BC4MAU18A06.00 | 6" | 1 3/8" | Cap Detachable Clevis Mounting (NFPA MP2) | 250 psig | 8" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | - | €1,730.66 |
