PARKER 6FSC4N-B Connector Brass A-lok x F 3/8in x 1/4in
Item: AB2ZUKModel: 6FSC4N-BCross Ref: 1PZR8
7 In Stock
Brass
1/4"
6600 psi
Ships within 2 days via
10.00% off
€35.45 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Female Connector |
| Application | Compressed Natural Gas, Fuels, Gases, Hydrogen, Liquids, Oils, Petroleum Oil, Steam |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Adapter |
| Body Material | Brass |
| Compatible Fitting Brands | A LOK |
| Compression Thread Size | 9/16"-20 |
| Connection Type | A Lok x FNPT |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 3/8" |
| Fitting Side B Connection Type | FNPT |
| Fitting Side B Pipe Size | 1/4" |
| Hex Size | 3/4" |
| Material | Brass |
| Max. Operating Pressure | 6600 psi |
| Max. Pressure | 4300 psi |
| Maximum Operating Temperature | 400°F |
| Minimum Operating Temperature | 40°F |
| Overall Length | 1 15/32" |
| Pipe Size | 1/4" |
| Product Datasheet | parker-6fsc4n-b.pdf |
| Resistance Properties | Corrosion Resistant, Gall Resistant |
| Specific Fitting Shape | Straight Adapter |
| Specific Pipe Fitting Shape | Connector |
| System Of Measurement | Imperial |
| Temp. Range | -40°F to +400°F |
| Thread Size | 9/16"-20 |
| Thread Size A | 9/16"-20 |
| Tube Fitting Material | Brass |
| Tube Outside Dia. | 3/8" |
| Tube Size | 3/8" |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 1.91 |
| Ship length (cm) | 3.73 |
| Ship width (cm) | 1.91 |
| HS code | 7412200035 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Tube Size | Pipe Size | Body Material | Hex Size | Max. Operating Pressure | Connection Type | Max. Pressure | Shape | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4FSC4N-316 | 1/4" | 1/4" | Stainless Steel | 3/4" | 10300 psi | A LOK x FNPT | 6600 psi | - | €58.05 | |
|
6FSC4N-316 | 3/8" | 1/4" | Stainless Steel | 3/4" | 6600 psi | A LOK x FNPT | 6600 psi | - | €61.78 | |
|
8FSC8N-316 | 1/2" | 1/2" | Stainless Steel | 1 1/16" | 6700 psi | Two Ferrule | 5200 psi | NPT Female Connector | €115.89 | |
|
4FSC4N-B | 1/4" | 1/4" | Brass | 3/4" | 10300 psi | A LOK x FNPT | 4300 psi | - | €28.27 | |
|
8FSC8N-B | 1/2" | 3/4" | Brass | 1 1/16" | 6700 psi | A LOK x FNPT | 3000 psi | - | €58.80 | |
|
10FSC8N-B | 5/8" | 1/2" | Brass | 1 1/16" | 6100 psi | A LOK x FNPT | - | - | €66.93 | |
 |

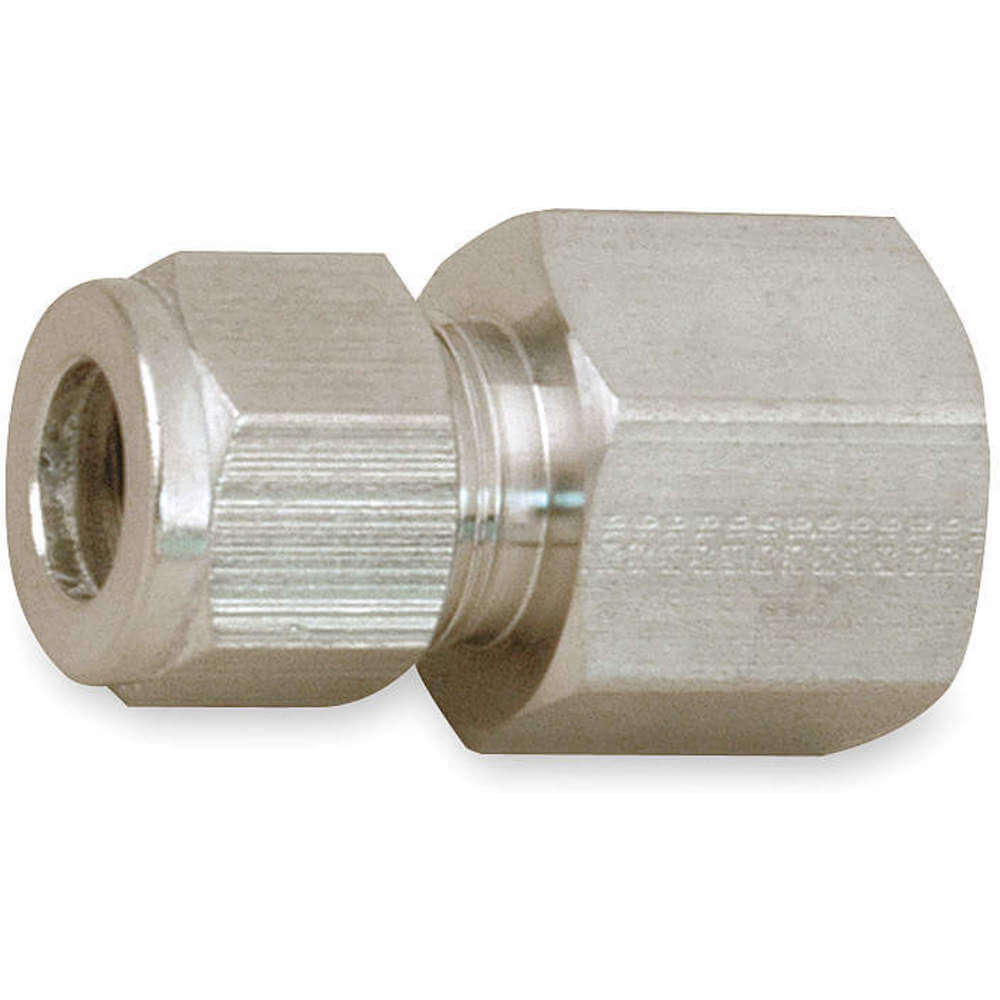

4FSC4N-S | 1/4" | 1/4" | Carbon Steel | 3/4" | - | A LOK x FNPT | 7000 psi | - | €58.35 |
