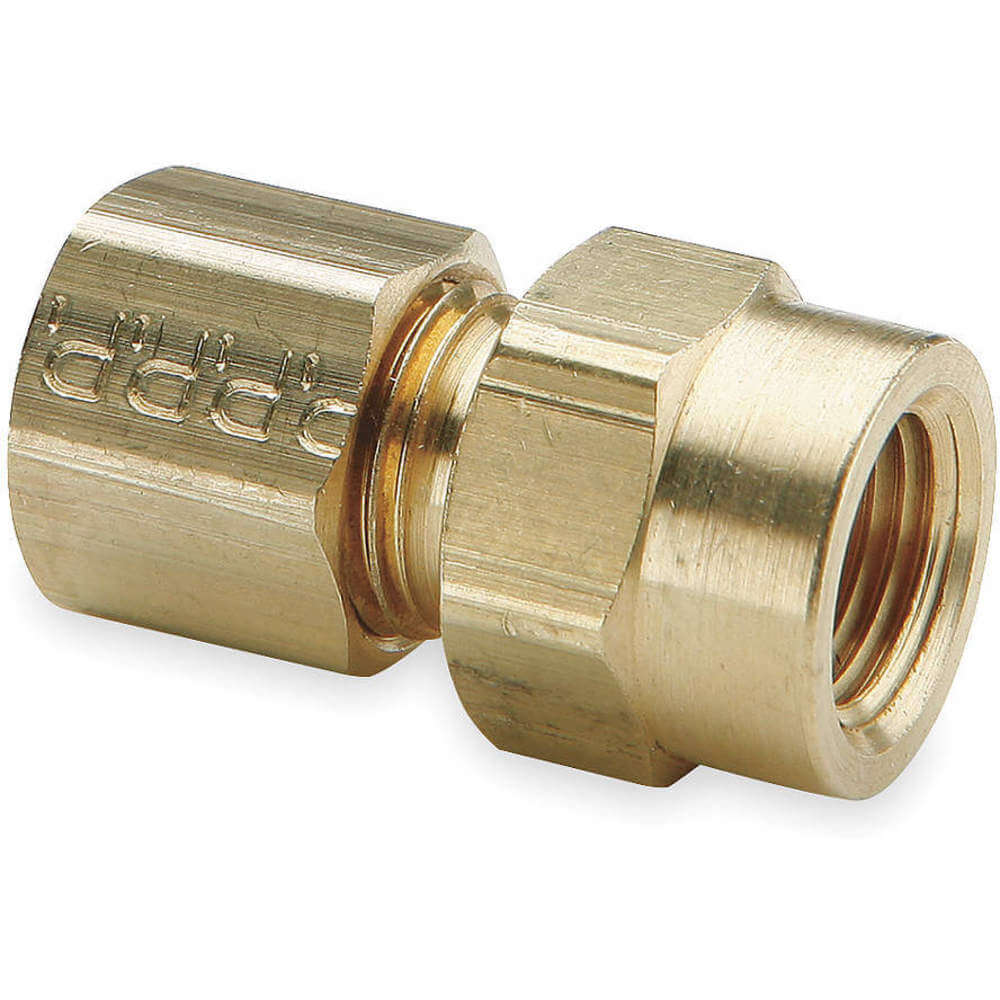

PARKER 66C-2-2 Connector, 1/8 Inch Outside Diameter, Brass
Item: AB3TTLModel: 66C-2-2Cross Ref: 1VDC8
7 In Stock
Ships within 2 days via
10.00% off
€53.04 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Fitting |
| Application | Air, Inert Gases, Non-Combustible Gases, Potable Water |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Adapter |
| Body Material | Brass |
| Compatible Tube Material | Aluminum, Copper, Thermoplastic |
| Compression Thread Size | 5/16" |
| Configuration Sub-type | Female Connector |
| Configuration Type | Tube To Female |
| Connection Type | FNPT x Compression |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 1/8" |
| Fitting Side B Connection Type | FNPTF |
| Fitting Side B Pipe Size | 1/8" |
| Hex Size | 9/16" |
| Material | Brass |
| Max. Operating Pressure | 400 psi |
| Max. Operating Temp. | 121°C |
| Max. Operating Temp. | 121 Deg C |
| Max. Pressure | 75 psi to 400 psi |
| Maximum Operating Pressure | 2800 psi |
| Maximum Operating Temperature | 200°F |
| Min. Operating Temp. | -54°C |
| Minimum Operating Temperature | 65°F |
| Nut Material | Brass |
| Overall Length | 15/16" |
| Pipe Size | 1/8" |
| Product Datasheet | parker-66c-2-2.pdf |
| Series | Compression Series |
| Shape | Connector |
| Sleeve Material | Brass, Acetal |
| Specific Fitting Shape | Straight Adapter |
| Specific Pipe Fitting Shape | Connector |
| Style | Tube To Female Pipe |
| System Of Measurement | Imperial |
| Thread 1 Size | 1/8" |
| Thread 1 Type | NPT |
| Thread Size B | 5/16"-24 |
| Thread Type | NPTF |
| Tube Outside Dia. | 1/8" |
| Tube Size | 1/8" |
| Type | Compression |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 1.43 |
| Ship length (cm) | 2.38 |
| Ship width (cm) | 1.43 |
| HS code | 7412200035 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Pipe Size | Tube Size | Connection Type | Max. Pressure | Hex Size | Max. Operating Pressure | Fitting Side A Tube Outer Diameter | Tube Outside Dia. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 66C-3-2 | 1/8" | 3/16" | FNPT x Compression | 75 psi to 400 psi | 9/16" | 400 psi | 3/16" | 0.188" | 10 | €62.23 | |
| 66C-5-2 | 1/8" | 5/16" | FNPT x Compression | 75 psi to 400 psi | 9/16" | 300 psi | 5/16" | 0.312" | 10 | €84.38 | |
| 66C-5-4 | 1/4" | 5/16" | FNPT x Compression | 75 psi to 400 psi | 11/16" | 300 psi | 5/16" | 0.312" | 10 | €127.62 | |
| 66C-6-2 | 1/8" | 3/8" | FNPT x Compression | 75 psi to 400 psi | 9/16" | 200 psi | 3/8" | 3/8" | 10 | €77.32 | |
| 66C-6-8 | 1/2" | 3/8" | FNPT x Compression | 75 psi to 400 psi | 1" | 200 psi | 3/8" | 3/8" | 10 | €189.75 | |
| 66C-8-4 | 1/4" | 1/2" | FNPT x Compression | 75 psi to 400 psi | 11/16" | 200 psi | 1/2" | 1/2" | 10 | €194.23 | |

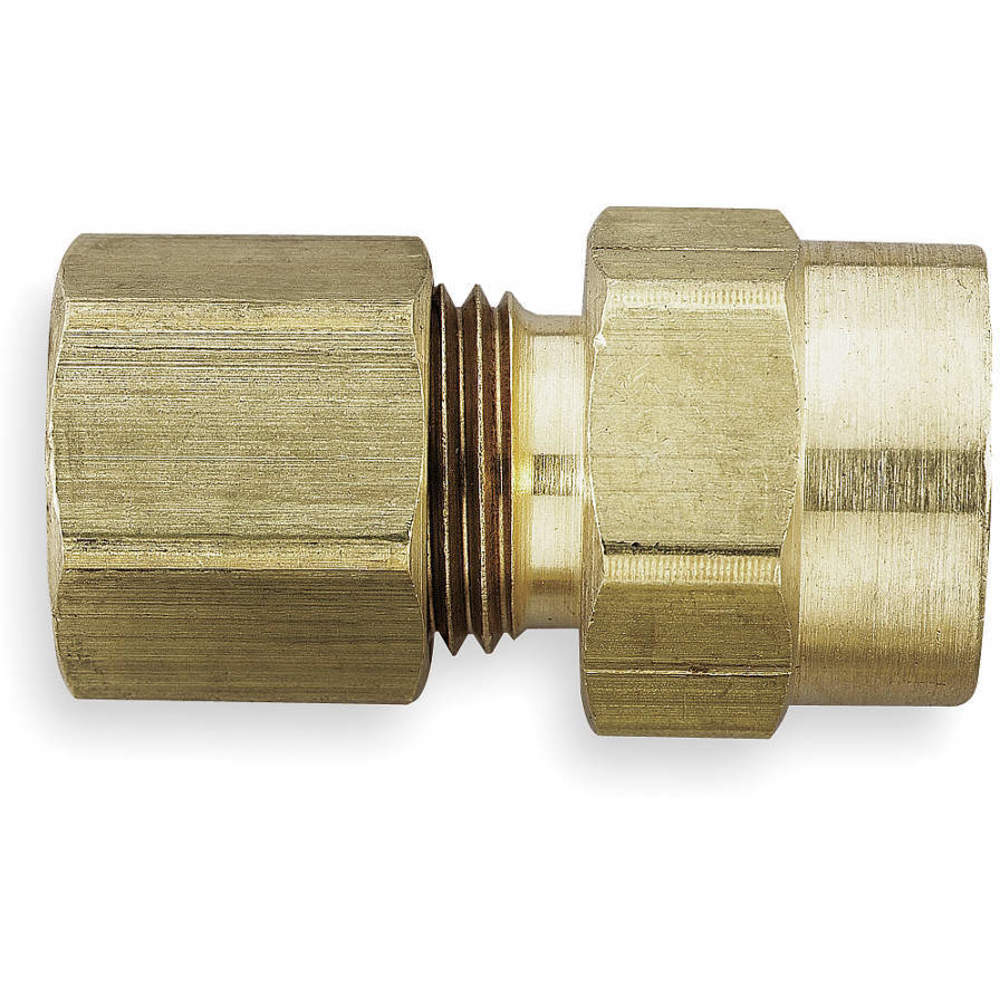

| 66C-4-2 | 1/8" | 1/4" | FNPT x Compression | 300 psi | 9/16" | 300 psi | 1/4" | 1/4" | 10 | €52.33 |
