OSG Powdered Metal Straight Flute Hand Taps
Filter
A
B
C| Style | Model | Thread Size | Overall Length | 75% Thread Drill Size | Shank Dia. | Thread Standard | Tap Length Standard | Tap Style | Shank Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1005701408 | 1/2"-13 | 3 11/32" | 27/64" | 23/64" | Coarse | ANSI | Straight Flute Hand | 1 13/32" | €103.34 | |
| A | 1005701508 | 1/2"-13 | 3 11/32" | 27/64" | 23/64" | Coarse | ANSI | Straight Flute Hand | 1 13/32" | €104.93 | |
| A | 1005701708 | 1/2"-20 | 3 11/32" | 11.4 mm | 23/64" | Fine | ANSI | Straight Flute Hand | 1 13/32" | €104.86 | |
| A | 1005701608 | 1/2"-20 | 3 11/32" | 11.4 mm | 23/64" | Fine | ANSI | Straight Flute Hand | 1 13/32" | €104.93 | |
| A | 1005700208 | 1/4"-20 | 2 1/2" | #7 | 1/4" | Coarse | ANSI | Straight Flute Hand | 1 1/2" | €75.08 | |
| A | 1005700108 | 1/4"-20 | 2 1/2" | #7 | 1/4" | Coarse | ANSI | Straight Flute Hand | 1 1/2" | €70.16 | |
| A | 1005700308 | 1/4"-28 | 2 1/2" | 5.45 mm | 1/4" | Fine | ANSI | Straight Flute Hand | 1 1/2" | €69.22 | |
| A | 1005700708 | 3/8"-16 | 2 29/32" | 5/16" | 3/8" | Coarse | ANSI | Straight Flute Hand | 1 21/32" | €82.74 | |
| A | 1005700808 | 3/8"-16 | 2 29/32" | 5/16" | 3/8" | Coarse | ANSI | Straight Flute Hand | 1 21/32" | €75.87 | |
| A | 1005700908 | 3/8"-24 | 2 29/32" | 8.5 mm | 3/8" | Fine | ANSI | Straight Flute Hand | 1 21/32" | €75.87 | |
| A | 1005700508 | 5/16"-18 | 2 23/32" | F | 5/16" | Coarse | ANSI | Straight Flute Hand | 1 19/32" | €75.72 | |
| A | 1005700408 | 5/16"-18 | 2 23/32" | F | 5/16" | Coarse | ANSI | Straight Flute Hand | 1 19/32" | €75.72 | |
| A | 1005700608 | 5/16"-24 | 2 23/32" | I | 5/16" | Fine | ANSI | Straight Flute Hand | 1 19/32" | €81.45 | |
| A | 1005701008 | 7/16"-14 | 3 1/8" | U | 5/16" | Coarse | ANSI | Straight Flute Hand | 1 7/16" | €82.00 | |
| A | 1005701108 | 7/16"-14 | 3 1/8" | U | 5/16" | Coarse | ANSI | Straight Flute Hand | 1 7/16" | €76.57 | |
| A | 1005701208 | 7/16"-20 | 3 1/8" | 9.95 mm | 5/16" | Fine | ANSI | Straight Flute Hand | 1 7/16" | €82.00 | |
| A | 1005701308 | 7/16"-20 | 3 1/8" | 9.95 mm | 5/16" | Fine | ANSI | Straight Flute Hand | 1 7/16" | €89.38 | |
| B | 1105700108 | M6 x 1 | 63 mm | 5 mm | 6.47 mm | Metric Coarse | ANSI | Straight Flute Hand | 38 mm | €65.75 | |
| B | 1105700208 | M8 x 1.25 | 69 mm | H | 8.07 mm | Metric Coarse | ANSI | Straight Flute Hand | 40 mm | €74.70 | |
| B | 1105700408 | M10 x 1.5 | 74 mm | 8.5 mm | 9.67 mm | Metric Coarse | ANSI | Straight Flute Hand | 42 mm | €82.57 | |
| B | 1105700308 | M10 x 1.25 | 74 mm | 11/32" | 9.67 mm | Metric Fine | ANSI | Straight Flute Hand | 42 mm | €82.00 | |
| B | 1105700508 | M12 x 1.5 | 85 mm | 10.5 mm | 9.32 mm | Metric Fine | ANSI | Straight Flute Hand | 36 mm | €89.94 | |

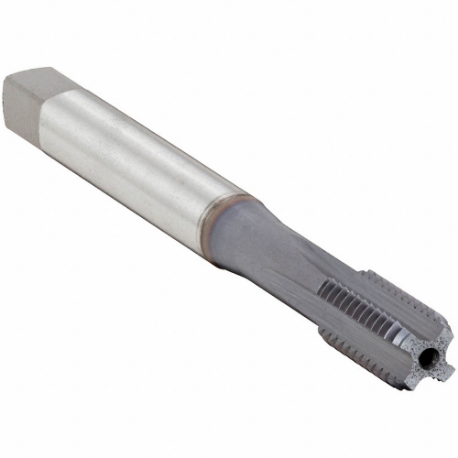

| C | 1105302508 | M12 x 1.25 | 100 mm | 10.78 mm | 9.32 mm | Metric Fine | DIN | Straight Flute Hand | 51 mm | €93.30 | |
| B | 1105700608 | M12 x 1.75 | 85 mm | 10.3 mm | 9.32 mm | Metric Coarse | ANSI | Straight Flute Hand | 36 mm | €97.21 | |
| B | 1105700708 | M14 x 1.5 | 91 mm | 12.5 mm | 10.89 mm | Metric Fine | ANSI | - | 41 mm | €140.94 | |
| B | 1105700808 | M14 x 2 | 91 mm | - | 10.89 mm | Metric Coarse | ANSI | Straight Flute | - | €140.94 |
