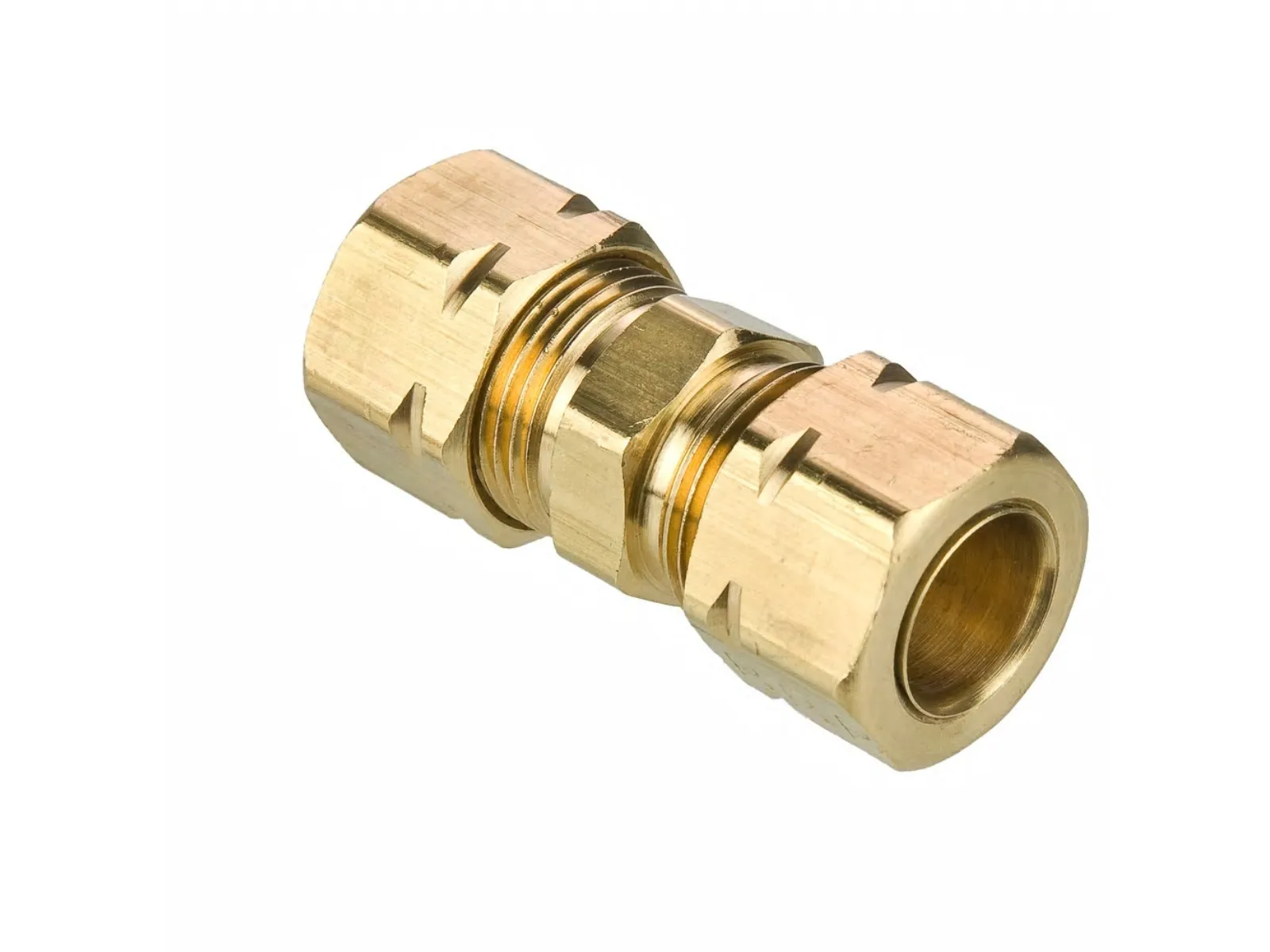

PARKER 62CA-2 Union, 1/8 Inch Outside Diameter, Brass
Item: AE9QHMModel: 62CA-2Cross Ref: 6LH24
7 In Stock
Ships within 2 days via
10.00% off
€168.35 /pkg. of 25
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Fitting |
| Application | Air, Inert Gases, Non-Combustible Gases, Potable Water |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Union |
| Body Material | Brass |
| Compatible Tube Material | Aluminum, Copper, FEA, PFA, TFE, Thermoplastic |
| Connection Type | NPTF |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 1/8" |
| Fitting Side B Connection Type | Compression |
| Fitting Side B Tube Outer Diameter | 1/8" |
| Hex Size | 5/16" |
| Material | Brass |
| Max. Operating Pressure | 2800 psi |
| Max. Operating Temp. | 121 Deg C |
| Max. Operating Temp. | 121°C |
| Max. Pressure | 2800 psi |
| Maximum Operating Temperature | 200°F |
| Min. Operating Temp. | -54°C |
| Minimum Operating Temperature | 65°F |
| Nut Material | Brass |
| Overall Length | 1 1/8" |
| Product Datasheet | parker-62ca-2.pdf |
| Series | Compression |
| Shape | Union |
| Sleeve Material | Brass |
| Specific Fitting Shape | Straight Connector |
| Specific Pipe Fitting Shape | Union |
| Style | Tube To Tube |
| System Of Measurement | Imperial |
| Temp. Range | -65°F to +250°F |
| Thread Size A | 5/16"-24 |
| Thread Size B | 5/16"-24 |
| Tube Outside Dia. | 1/8" |
| Tube Size | 1/8" |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 0.79 |
| Ship length (cm) | 2.86 |
| Ship width (cm) | 0.79 |
| HS code | 7412200045 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Tube Size | Hex Size | Max. Pressure | Specific Fitting Shape | Fitting Side A Tube Outer Diameter | Thread Size B | Fitting Side B Tube Outer Diameter | Thread Size A | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 62CA-10-6 | 5/8" | 13/16" | - | Straight Reducing Connector | 3/8" | 13/16"-18 | 5/8" | 9/16"-24 | 1 | €488.87 | |
| 62CA-12 | 3/4" | 1" | 550 psi | Straight Connector | 3/4" | 1"-18 | 3/4" | 1"-18 | 10 | €801.24 | |
| 62CA-14 | 7/8" | 1 1/8" | - | Straight Connector | 7/8" | 1 1/8"-18 | 7/8" | 1 1/8"-18 | 10 | €1,034.67 | |
| 62CA-3 | 3/16" | 3/8" | 1900 psi | Straight Connector | 3/16" | 3/8"-24 | 3/16" | 3/8"-24 | 25 | €229.82 | |
| 62CA-4 | 1/4" | 7/16" | 1400 psi | Straight Connector | 1/4" | 7/16"-24 | 1/4" | 7/16"-24 | 50 | €421.93 | |
| 62CA-4-3 | 1/4" | 7/16" | 1400 psi | Straight Reducing Connector | 3/16" | 7/16"-24 | 1/4" | 3/8"-24 | 10 | €200.35 | |
| 62CA-5 | 5/16" | 1/2" | 1200 psi | Straight Connector | 5/16" | 1/2"-24 | 5/16" | 1/2"-24 | 50 | €695.37 |
