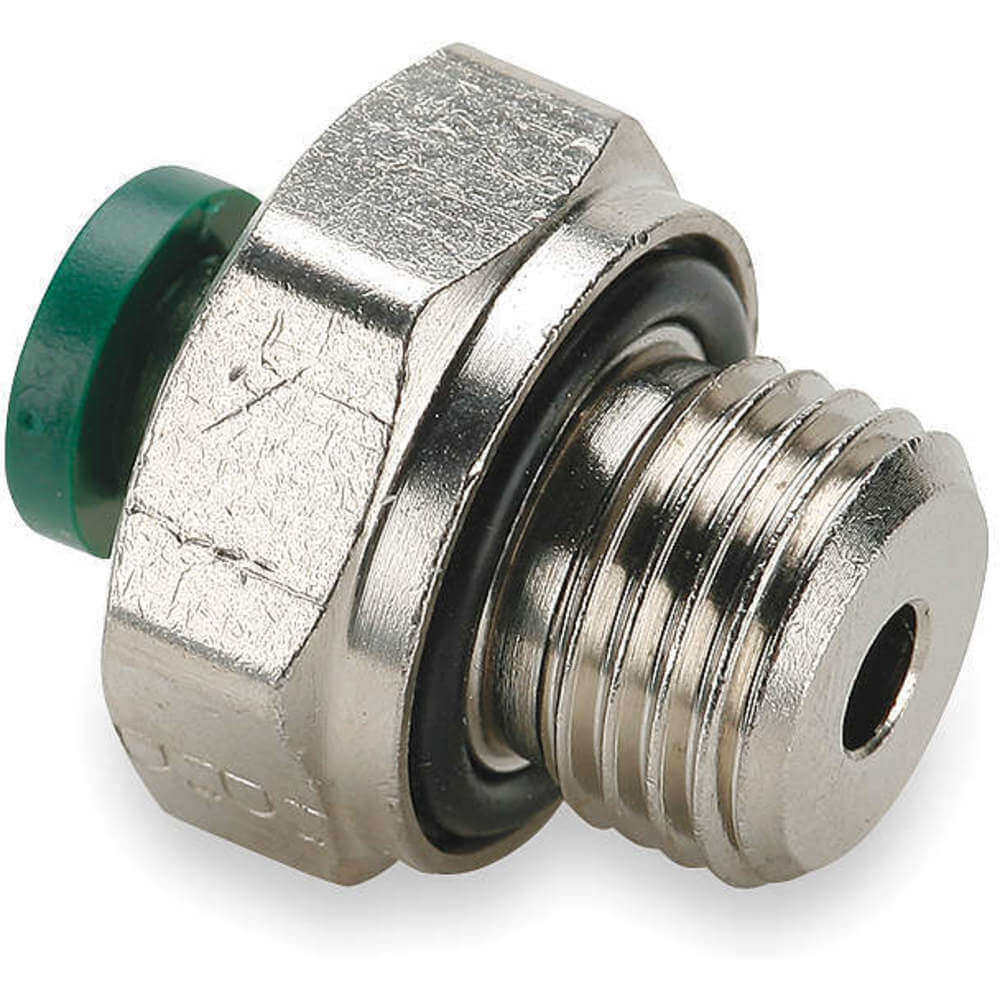

PARKER 4-1/4PLPHBF4-B Fitting, 1/4 Inch Outside Diameter, Nickel Plated Brass
Get it by Tuesday, Aug 25
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fitting |
| Application | Air, Inert Gases, Oils, Vacuum |
| Basic Material | Metal |
| Body Finish | Nickel Plated |
| Body Material | Brass |
| Color | Silver |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Polyethylene, Polypropylene, Polyurethane, Rigid Nylon, Semi Rigid Nylon |
| Configuration Sub Type | Male Connector |
| Configuration Type | Tube To Male |
| Connection Type | BSPP x BSPT x NPTF x UNF |
| Finish, Coating | Nickel Plated |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Push-To-Connect |
| Fitting Side A Tube Outside Dia. | 1/4" |
| Fitting Side B Connection Type | MBSPP |
| Fitting Side B Pipe Size | 1/4" |
| Fitting Thread Size | 1/4" |
| Hex Size | 3/4" |
| Included Pre-applied Thread Sealant | Yes |
| Material | Brass |
| Max. Operating Pressure | 300 psi |
| Max. Operating Temp. | 93 Deg C |
| Max. Operating Temp. | 200°F , 93°C |
| Max. Pressure | 300 psi |
| Min. Operating Temp. | -18°C , 0°F |
| Overall Length | 1 1/8" |
| Pipe Size | 1/4" |
| Release Type | Button |
| Resistance Properties | Corrosion Resistant |
| Ring Material | Stainless Steel |
| Seal Material | Nitrile |
| Series | PRESTOLOK METAL INCH Series |
| Shape | Connector |
| Specific Fitting Shape | Straight Adapter |
| Style | Tube To Pipe |
| System Of Measurement | Imperial |
| Temp. | 0°F to +200°F |
| Thread 1 Type | BSPP |
| Tube Outside Dia. | 1/4" |
| Vacuum | 28 in. hg |
| Vacuum Pressure | 28 Inch-Hg |
Shipping Info:
| Ship weight (kg) | 0.65 |
| Ship height (cm) | 1.91 |
| Ship length (cm) | 2.86 |
| Ship width (cm) | 6.86 |
| HS code | 7419995010 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | Max. Operating Temp. | Min. Operating Temp. | Max. Operating Pressure | Color | Fitting Material | Fitting Side A Connection Type | Fitting Side B Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4-3/8PLPHBF4-B | Brass Body (Nickel-Plated) | - | - | - | - | - | - | - | €26.84 |
