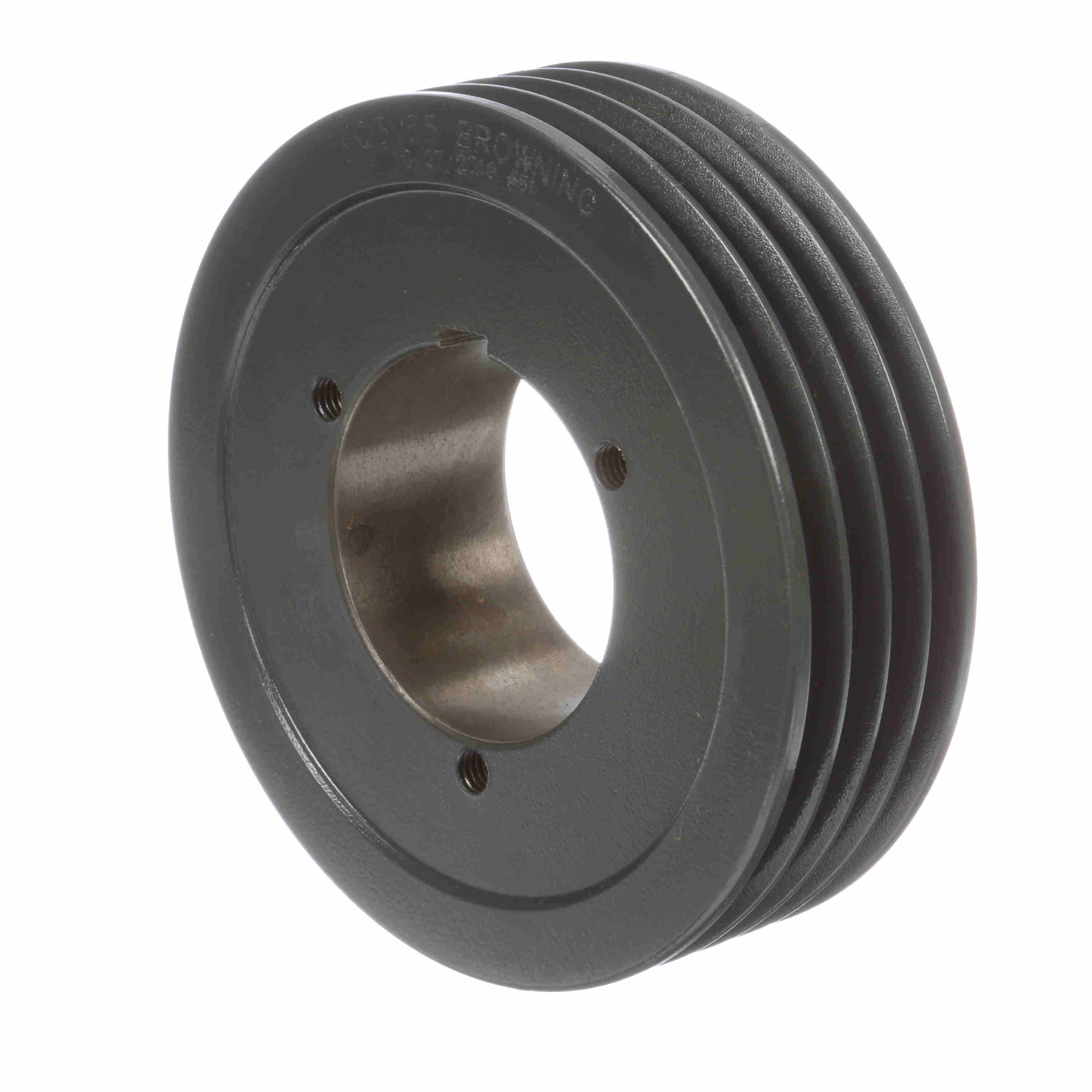

BROWNING 1060599 4Q3V65 V-Belt Sheave, Multiple, Bushed Bore, 4 Groove, Cast Iron
Item: BA3NYVModel: 1060599Cross Ref: 4Q3V65
7 In Stock
Ships within 2 days via
€308.70 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 3V Series |
| Bore Dia. | 3/4" to 2 11/16" |
| Bore Type | Split Taper |
| Bushing Type | Q1 |
| Face Width | 1 29/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Min. Plain Bore | No |
| No. Of Grooves | 4 |
| Outside Dia. | 6 1/2" |
| Overall Length | 2 55/64" |
| Pitch Dia. | 6.45" |
| Suitable For Use With | Gripbelt 3V Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 13 Web |
| Weight | 11.1 lbs. |
Shipping Info:
| Ship weight (kg) | 5 |
| Ship height (cm) | 5.84 |
| Ship length (cm) | 17.02 |
| Ship width (cm) | 17.02 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Outside Dia. | Face Width | Overall Length | Type | Bore Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1060912 | 3/4" to 2 11/16" | 14" | 1 29/32" | 2 55/64" | Type 13 Arm | Split Taper | Cast Iron | €792.06 | |
 |
1061431 | 3/4" to 2 11/16" | 6.3" | 3 1/16" | 4 3/32" | Type 13 Solid | Split Taper | Cast Iron | €534.61 | |
 |
1062553 | 1.13" to 3.75" | 21 1/5" | 3 1/16" | 3 11/32" | Type 13 Arm | Split Taper | Cast Iron | €1,445.00 | |
 |
1060672 | 3/4" to 2 11/16" | 6.9" | 1 29/32" | 2 55/64" | Type 13 Web | Split Taper | Cast Iron | €294.49 | |
 |
1060219 | 1/2" to 1 3/4" | 5" | 1 29/32" | 2 3/16" | Type 13 Solid | Split Taper | Cast Iron | €390.78 | |
 |
1061472 | 3/4" to 2 11/16" | 6.7" | 3 1/16" | 4 3/32" | Type 13 Solid | Split Taper | Cast Iron | €548.17 | |
 |
1061571 | 3/4" to 2 11/16" | 7 1/2" | 3 1/16" | 3 11/32" | Type 13 Web | Split Taper | Cast Iron | €630.72 |
