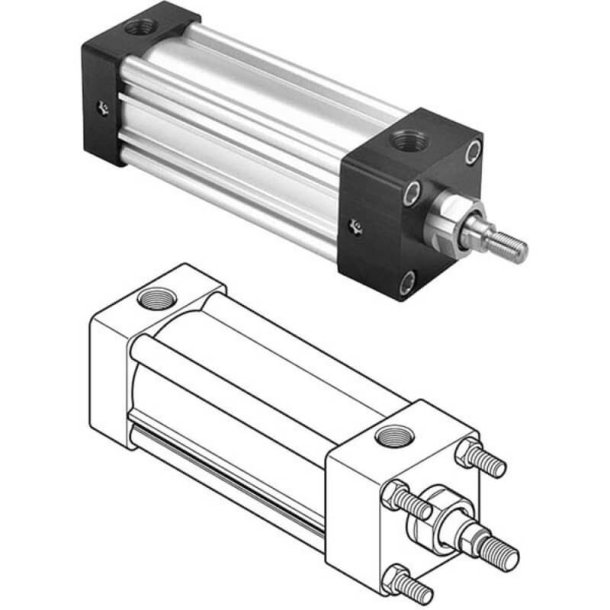

PARKER 3.25TB4MA1U14A03.00 Pneumatic Cylinder
Get it by Tuesday, Aug 25
€470.55 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 3 1/4" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 1/2" NPT Threaded Pneumatic Ports 3/4"-16 UNF Male Small Threaded Rod-End |
| Design | "Lipseal" Piston Small Male Rod-End Thread NFPA Interchangeable Model Repairable |
| Dia. | 1" , 1" No.1 |
| Function | Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Anodized Aluminium Cylinder Body Aluminium Piston With Nylon Wear Band Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Tie-Rods Extended Head End Mounting (NFPA MX3) |
| Mounting Mode | Tie-Rods Extended Head End Mounting NFPA Mx3) |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 3" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Dia. | Mounting | Rod End Style | Piston No. | Rod End Thread | Max. Air Service Pressure | Bore Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3.25CG4MA2U14AC11.00 | 11" | 1" , 1" No.1 | Side End Lug Mounting (NFPA MS7) | - | - | - | 250 psig | 3 1/4" | €751.17 | |
 |
3.25J4MA2U19A03.19 | 3.19" | 1" , 1" No.1 | Head Rectangular Flange Mounting (NFPA MF1) | - | - | - | 250 psig | 3 1/4" | €504.57 | |
 |
3.25CF4MA2U18AC04.00 | 4" | 1" No.1 | Side Tap Mounting (NFPA MS4) | Male, Intermediate | 1 | 7/8"-14 | - | 3 1/4" | €573.93 | |
 |
3.25CBB4MA1U14AC03.25 | 3 1/4" | 1" , 1" No.1 | Cap Fixed Clevis Mounting (NFPA MP1) | - | - | - | 250 psig | 3 1/4" | €638.64 | |
 |
3.25CC4MA2UM14AC08.38 | 8.38" | 1" , 1" No.1 | Side Lug Mounting (NFPA MS2) | - | - | - | 250 psig | 3 1/4" | €831.61 | |
 |
3.25F4MA2U19A10.00 | 10" | 1" , 1" No.1 | Side Tap Mounting (NFPA MS4) | - | - | - | 250 psig | 3 1/4" | €561.57 | |
 |
3.25C4MA1U14A20.00 | 20" | 1" , 1" No.1 | Side Lug Mounting (NFPA MS2) | - | - | - | 250 psig | 3 1/4" | €804.67 |
