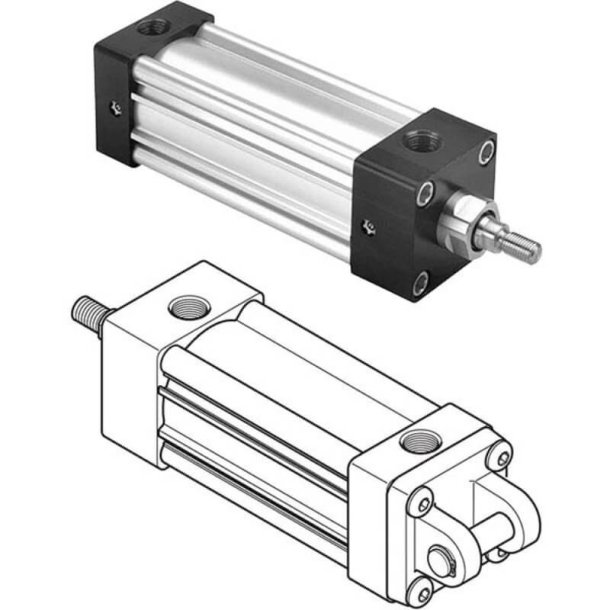

PARKER 3.25CBC4MA3U38HA16.00 Pneumatic Cylinder
16"
Get it by Thursday, Aug 20
€1,101.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 3 1/4" |
| Bumpers | W, O Bumpers |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 x 1/2" NPT Threaded Pneumatic Ports 1 1/4"-12 UNF Male Intermediate Threaded Rod-End , 2 x 1/2" NPT Threaded Pneumatic Ports 1-1/4"-12 UNF Male Intermediate Threaded Rod-End |
| Cylinder Bore Size | 3 1/4" |
| Cylinder Material | Clear Anodized Aluminum Alloy |
| Cylinder Style | Tie Rod, NFPA |
| Design | Piston Magnet "Lipseal" Piston Intermediate Male Rod-End Thread Composite High-Load Rod Bearing Cushion At Head End Only Nfpa Interchangeable Model Repairable, Piston Magnet LipSeal Piston Intermediate Male Rod End Thread Composite High-Load Rod Brg. Cushion At Head End Only NFPA Interchangeable Model Repairable |
| Dia. | 1 3/8" |
| End Type | Single Rod |
| Filter Media | Filtered Air |
| Filtration Requirement | 40 μm |
| Function | Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Anodized Aluminium Cylinder Body Aluminium Piston With Nylon Wear Band Composite Piston Bearing Composite Bearing Pressed Into Bronze Alloy Gland Hard Chrome-Plated Carbon Steel Piston Rod |
| Min. Temp. | -10°F |
| Mounting | Cap Detachable Clevis Mounting (NFPA MP2) |
| Mounting Mode | Cap Detachable Clevis Mounting NFPA MP2 |
| Piston Material | Aluminum |
| Piston No. | 3 |
| Port Size | 0.5 |
| Port Type | NPTF |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Rod End Style | Male, Intermediate |
| Rod End Thread | 1 1/4"-12 |
| Rod Material | Case Hardened Chrome Plated Carbon Steel |
| Rod Thread Type | UNF |
| Seal Material | Nitrile |
| Seal Type | Lip Seal |
| Series | 4MA Series |
| Shape | Rectangular |
| Stroke Length | 16" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Dia. | Mounting | Rod End Thread | Rod End Style | Piston No. | Max. Air Service Pressure | Bore Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3.25CBE4MA3U34AC03.50 | 3 1/2" | 1 3/8" | Cap Detachable Eye Mounting (NFPA MP4) | - | - | - | 250 psig | 3 1/4" | €717.41 | |
 |
3.25CF4MA3U19AC12.00 | 12" | 1" , 1" No.1 | Side Tap Mounting (NFPA MS4) | - | - | - | 250 psig | 3 1/4" | €702.41 | |
 |
3.25CBC4MA3U34AC72.00 | 72" | 1 3/8" | Cap Detachable Clevis Mounting (NFPA MP2) | - | - | - | 250 psig | 3 1/4" | €1,941.80 | |
 |
3.25CBC4MA3U34AC70.00 | 70" | 1 3/8" | Cap Detachable Clevis Mounting (NFPA MP2) | - | - | - | 250 psig | 3 1/4" | €1,905.81 | |
 |
3.25CF4MA3U14AC38.00 | 38" | 1" , 1" No.1 | Side Tap Mounting (NFPA MS4) | - | - | - | 250 psig | 3 1/4" | €1,121.91 | |
 |
3.25BB4MA3UE14A00.75 | - | - | - | - | - | - | - | - | - | RFQ
|
 |
3.25BC4MA3UE14AC14.00 | 14" | 1" , 1" No.1 | Cap Detachable Clevis Mounting (NFPA MP2) | - | - | - | 250 psig | 3 1/4" | €787.44 |
