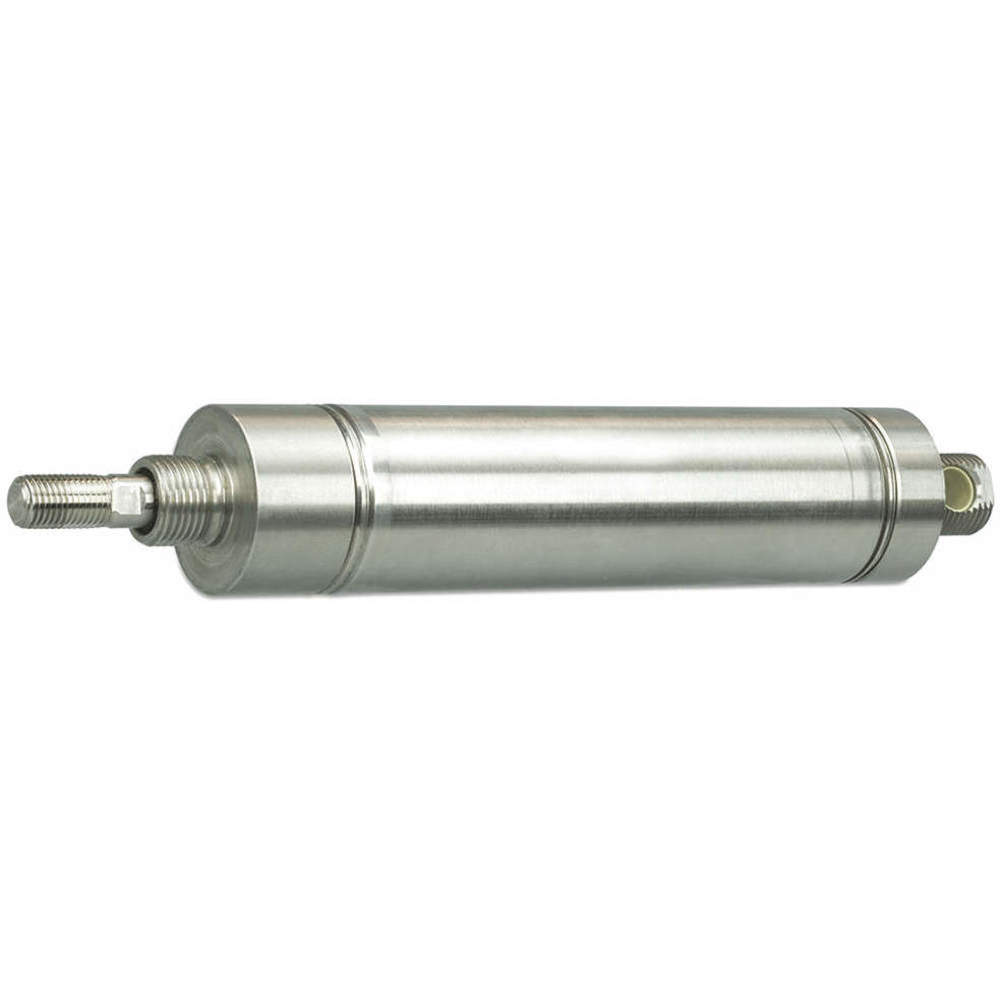

PARKER 3.00DXPSR03.00 Round Air Cylinder 3 Inch Bore 3 Inch Stroke
Item: AJ2EQCModel: 3.00DXPSR03.00Cross Ref: 49J934
7 In Stock
3"
Ships within 2 days via
5.00% off
€260.29 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Cylinder |
| Air Cylinder Type | Round Body |
| Air Inlet Size | 3/8" |
| Air Inlet Type | NPT |
| Body Dia. | 3 3/16" |
| Body Material | Stainless Steel |
| Body Material Grade | Grade 304 |
| Bore Dia. | 3" |
| Color | Silver |
| Cushion Type | None |
| Cylinder Action | Double Acting |
| Cylinder Type | Round Body |
| End Cap Material | Aluminum |
| Features | Non-Switch Ready |
| Finish | Silver |
| For Fluid Type | Air |
| Inlet Gender | Female |
| Magnetic Piston | Non-Magnetic Piston |
| Max. Operating Pressure | 250 psi |
| Max. Operating Temp. | 165°F |
| Max. Pressure | 250 psi |
| Min. Operating Temp. | -10°F |
| Mounting Style | Nose, Pivot |
| Mounting Type | Nose, Pivot |
| No. Of Rods | 1 |
| Nose Mount Thread Size | 1 1/2"-12 |
| Overall Length | 11 2/5" |
| Piston Material | Aluminum |
| Piston Rod Finish | Chrome Plated |
| Piston Rod Material | Steel |
| Piston Rod Material Finish | Chrome Plated |
| Pivot Hole Dia. | 1/2" |
| Repairable Cylinder | Non Repairable |
| Rod Dia. | 3/4" |
| Rod Rotation | Rotating Rod |
| Rod Thread Length | 1 1/4" |
| Rod Thread Size | 5/8"-18 |
| Rod Thread Type | Fine |
| Series | SR Series |
| Single Acting/double Acting | Double Acting |
| Spring Retraction Force | Not Applicable |
| Stroke | 3" |
| Stroke Length | 3" |
| System Of Measurement | Imperial |
| Tube Material | Stainless Steel |
| Type | Round Body |
Shipping Info:
| Ship weight (kg) | 2.09 |
| Ship height (cm) | 8.1 |
| Ship length (cm) | 28.96 |
| Ship width (cm) | 8.03 |
| Country of Origin | US |
Product Variants
| Model | Stroke Length | Mounting | Mounting Type | Mounting Style | Stroke | Max. Air Service Pressure | Max. Pressure | Rod Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 3.00DSR01.00 | 1" | - | Nose | Nose | 1" | - | 250 psi | 3/4" | €271.29 | |
| 3.00DSR02.00 | 2" | - | Nose | Nose | 2" | - | 250 psi | 3/4" | €276.08 | |
| 3.00DSR03.00 | 3" | - | Nose | Nose | 3" | - | 250 psi | 3/4" | €288.65 | |
| 3.00DSR04.00 | 4" | - | Nose | Nose | 4" | - | 250 psi | 3/4" | €297.35 | |
| 3.00DSR05.00 | 5" | - | Nose | Nose | 5" | - | 250 psi | 3/4" | €278.26 | |
| 3.00DSR06.00 | 6" | - | Nose | Nose | 6" | - | 250 psi | 3/4" | €314.71 | |
| 3.00DXPSR01.00 | 1" | - | Nose, Pivot | Nose, Pivot | 1" | - | 250 psi | 3/4" | €238.66 |
