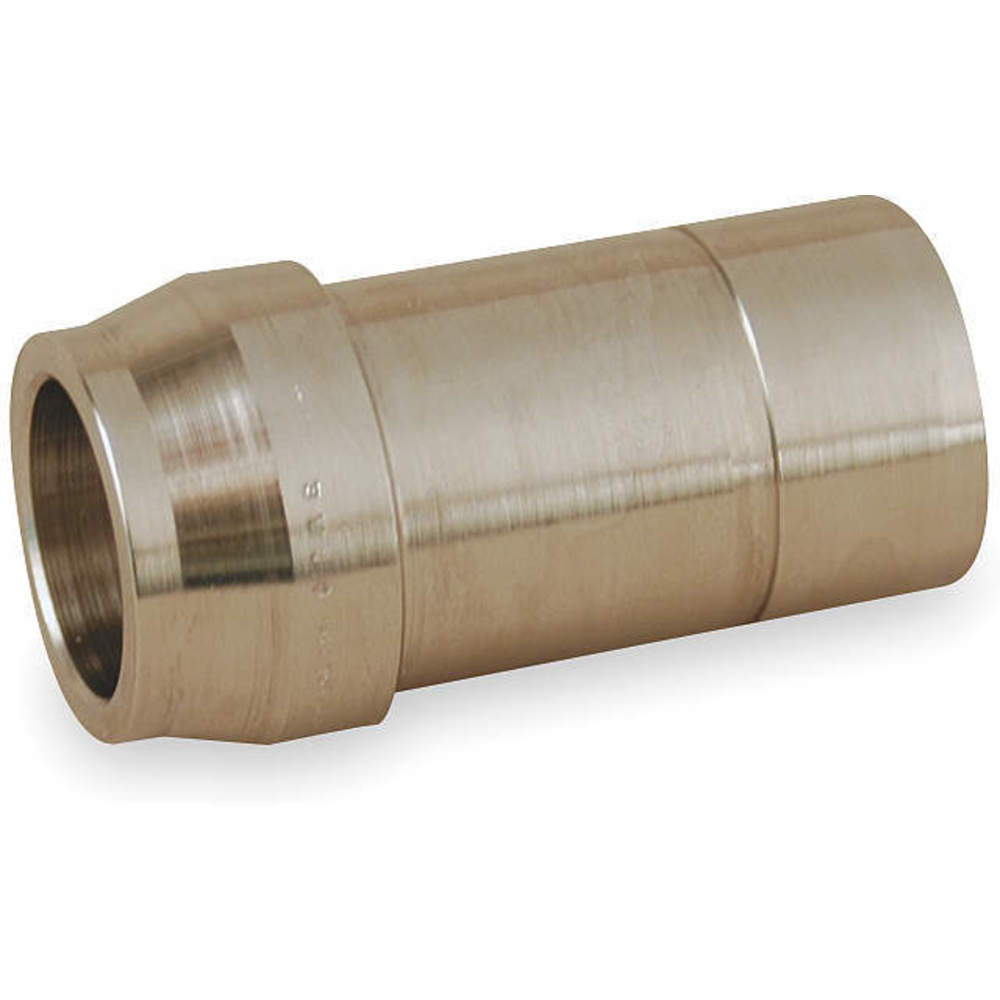

PARKER 2PC2-316 Port Connector Stainless Steel A-LOK 1/ 8 Inch
Item: AF7GMGModel: 2PC2-316Cross Ref: 20YX98
7 In Stock
Ships within 2 days via
10.00% off
€49.62 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Port Connector |
| Application | Gases, Liquids |
| Basic Material | Stainless Steel |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Connector |
| Body Material | Stainless Steel |
| Compatible Fitting Brands | A LOK |
| Compression Thread Size | 1/8" |
| Configuration Sub-type | Port Connector Flareless |
| Configuration Type | Straight |
| Connection Type | A LOK |
| Diameter | 1/8" |
| End 2 Type | Inch |
| Ferrule Type | Double |
| Fitting Material | Stainless Steel |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 1/8" |
| Fitting Side B Connection Type | Compression |
| Fitting Side B Tube Outer Diameter | 1/8" |
| Material | Stainless Steel |
| Material Grade | Grade 316 |
| Max. Operating Pressure | 10900 psi |
| Max. Pressure | 10900 psi |
| Maximum Operating Temperature | 649°C |
| Minimum Operating Temperature | 255°C |
| Overall Length | 15/16" |
| Product Datasheet | parker-2pc2-316.pdf |
| Resistance Properties | Corrosion Resistant, Gall Resistant |
| Series | A LOK Series |
| Specific Fitting Shape | Straight Port Connector |
| Specific Pipe Fitting Shape | Connector |
| System Of Measurement | Imperial |
| Temp. Range | -425°F to +1200°F |
| Thread Size A | 5/16"-20 |
| Thread Size B | 5/16"-20 |
| Tube Fitting Material | Stainless Steel |
| Tube Fitting/adapter Type | Bite Type, A Lok Double Ferrule Flareless |
| Tube Size | 1/8" |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.38 |
| Ship width (cm) | 6.83 |
| HS code | 7307290000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Tube Size | Max. Pressure | Max. Operating Pressure | Fitting Side A Tube Outer Diameter | Thread Size B | Fitting Side B Tube Outer Diameter | Thread Size A | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
12PC12-316 | 3/4" | 5800 psi | 5800 psi | 3/4" | 1-20 | 3/4" | 1-20 | 1 21/32" | €88.84 | |
|
2PC4-316 | 1/8" x 1/4" | 10300 psi | 10300 psi | 1/8" | 7/16"-20 | 1/4" | 5/16"-20 | 1 1/16" | €91.15 |
