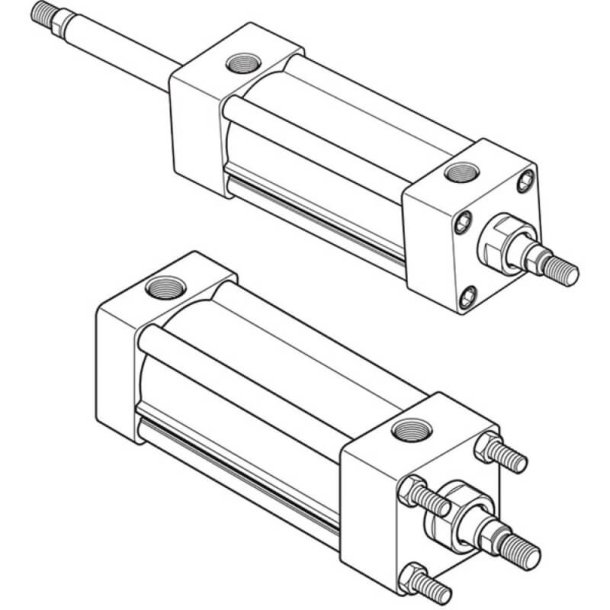

PARKER 1P4MA0039293 Pneumatic Cylinder
19 1/2"
Get it by Tuesday, Sep 1
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 2" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 3/8" NPT Threaded Pneumatic Ports 3/4"-16 UNF Male Small Threaded Rod-Ends (Both Ends) |
| Design | "Lipseal" Piston Small Male Rod-End Threads (Both Ends) Cushion At Both Ends Nfpa Interchangeable Model Based On Model 2.00Cktb4Ma2U34A34Ac19.50 Repairable |
| Dia. | 2 X 1" No.3 Rods (Both Ends) , 2" X 1" |
| Function | Double-Acting Non-Lube NFPA Double-Ended Tie-Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Tie-Rods Extended Head End Mounting (NFPA MX3) |
| Mounting Mode | Tie-Rods Extended Head End Mounting NFPA Mx3) |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 19 1/2" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Max. Air Service Pressure | Dia. | Bore Size | Pressure | Mounting | Rod Dia. | Shape | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1P4MA0039046 | 3 22/25" | 250 psig | 5/8" | 1 1/2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cap Detachable Clevis Mounting (NFPA MP2) | - | Rectangular | - | RFQ
|
 |
1P4MA0039570 | 2 1/2" | 250 psig | 5/8" | 1 1/2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Head Trunnion Mounting (NFPA MT1) | - | Rectangular | €423.52 | |
 |
1P4MA0039463 | 2" | 250 psig | 1 3/8" | 6" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Head Rectangular Flange Mounting (NFPA MF1) | - | Rectangular | €1,314.42 | |
 |
1P4MA0039609 | 8" | 250 psig | 1" , 1" No.1 | 4" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Side Tap Mounting (NFPA MS4) | - | Rectangular | €788.21 | |
 |
1P4MA0039081 | 17" | 250 psig | 1" | 2 1/2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cap Fixed Clevis Mounting (NFPA MP1) | - | Rectangular | - | RFQ
|
 |
1P4MA0039772 | 9 1/2" | 250 psig | 1" , 1" No.1 | 5" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | No Mount (NFPA MX0) | - | Rectangular | €7,878.31 | |
 |
1P4MA0039792 | 8 1/2" | 250 psig | 5/8" | 1 1/2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Side Lug Mounting (NFPA MS2) | - | Rectangular | - | RFQ
|
