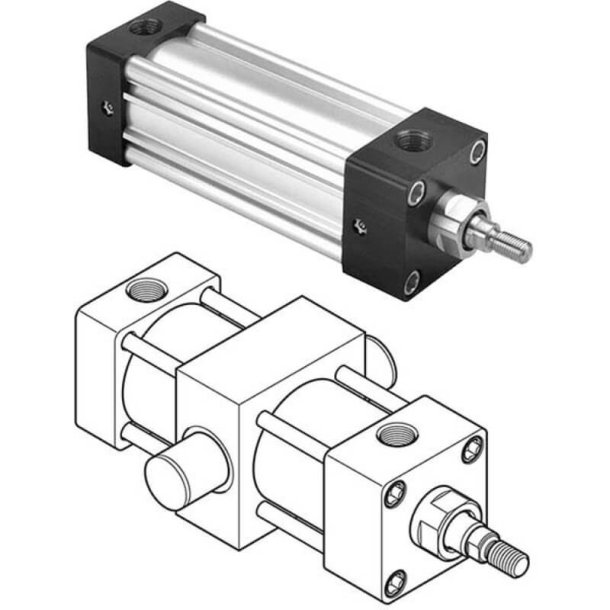

PARKER 1P4MA0024180 Pneumatic Cylinder

Item: EB9DQDModel: 1P4MA0024180

Check Availability

In Stock

15"

Stroke Length

Get it by Thursday, Aug 20

€715.21 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Cylinder
Ambient Air Temp.	-10°F to +165°F
Ambient Air Temp. For Operation	-10°F to +165°F
Application Type	General Industry Conveyors Assembly Packaging
Bore Size	2"
Bumpers	W, O Bumpers
Chemical Resistance	Corrosion Resistance
Connection Type	2 x 3/8" NPT Threaded Pneumatic Ports 1/2"-20 UNF Male Intermediate Threaded Rod End , 2 x 3/8" NPT Threaded Pneumatic Ports 1/2"-20 UNF Male Intermediate Threaded Rod-End
Cylinder Material	Clear Anodized Aluminum Alloy
Cylinder Style	Tie Rod, NFPA
Design	Piston Magnet "Lipseal" Piston Intermediate Male Rod-End Thread Cushion At Both Ends Aluminium Body (Steel Tie-Rods & Nuts) Nfpa Interchangeable Model Based On Model 2.00Cddt4Ma3U18Ac15.00 Repairable
Dia.	5/8"
End Type	Single Rod
Filter Media	Filtered Air
Filtration Requirement	40 μm
Function	Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder
Main Function	Pneumatic Cylinder
Material	Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod
Min. Temp.	-10°F
Mounting	Intermediate Trunnion Mounting (NFPA MT4)
Mounting Mode	Intermediate Trunnion Mounting NFPA MT4
Piston Material	Aluminum
Piston No.	1
Port Size	0.375
Port Type	NPTF
Pressure	250 psig (Max. Air Service) 17 Bar (Max. Air Service)
Rod End Style	Male, Intermediate
Rod End Thread	1/2"-20
Rod Material	Case Hardened Chrome Plated Carbon Steel
Rod Thread Type	UNF
Seal Material	Nitrile
Seal Type	Lip Seal
Series	4MA Series
Shape	Rectangular
Stroke Length	15"

Shipping Info:

Ship weight (kg)	1.13
Ship height (cm)	2.54
Ship length (cm)	2.54
Ship width (cm)	2.54

Product Variants

Model	Stroke Length	Dia.	Bore Size	Mounting	Rod Dia.	Max. Air Service Pressure	Pressure	Shape	Price
1P4MA0024131	6"	5/8"	2 1/2"	Cap Detachable Clevis Mounting (NFPA MP2)	-	250 psig	250 psig (Max. Air Service) 17 Bar (Max. Air Service)	Rectangular	€405.28
1P4MA0044189	14"	1" , 1" No.1	4"	Sleeve Nut Mounting (NFPA MX5)	-	250 psig	250 psig (Max. Air Service) 17 Bar (Max. Air Service)	Rectangular	-	RFQ
1P4MA0024065	16"	1 3/8"	8"	Cap Fixed Clevis Mounting (NFPA MP1)	-	250 psig	250 psig (Max. Air Service) 17 Bar (Max. Air Service)	Rectangular	€2,369.59
1P4MA0044742	18"	5/8"	2 1/2"	Head Rectangular Flange Mounting (NFPA MF1)	-	250 psig	250 psig (Max. Air Service) 17 Bar (Max. Air Service)	Rectangular	-	RFQ
1P4MA0024050	1"	1" No.1	5"	Head Rectangular Flange Mounting (NFPA MF1)	-	250 psig	250 psig (Max. Air Service) 17 Bar (Max. Air Service)	Rectangular	-	RFQ
1P4MA0034076	6"	1"	2"	Cap Detachable Clevis Mounting (NFPA MP2)	-	250 psig	250 psig (Max. Air Service) 17 Bar (Max. Air Service)	Rectangular	-	RFQ
1P4MA0034160	6 3/4"	1" , 1" No.1	3 1/4"	Head Rectangular Flange Mounting (NFPA MF1)	-	250 psig	250 psig (Max. Air Service) 17 Bar (Max. Air Service)	Rectangular	€750.36
