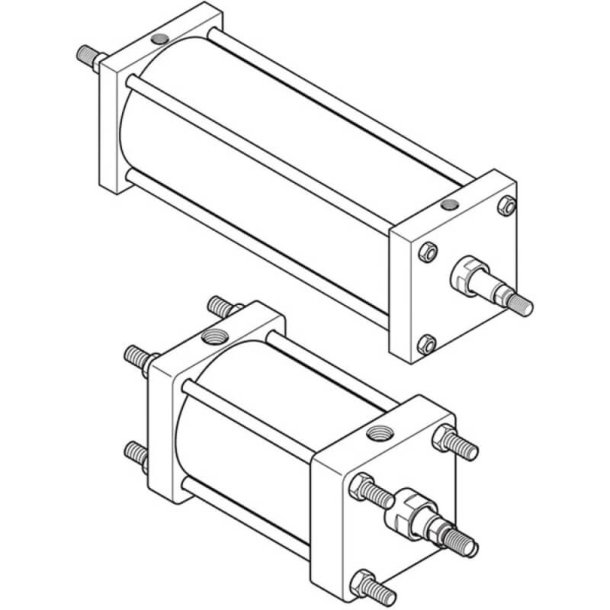

PARKER 1P4MA0018700 Pneumatic Cylinder
8.94"
Get it by Tuesday, Sep 1
€2,695.51 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 6" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 x 3/4" NPT Threaded Pneumatic Ports Special UNF Rod-End Threading (Please Specify At Order Time) (End 1) 1"-14 UNF Male Small Threaded Rod (End 2) |
| Design | Piston Magnet "Lipseal" Piston Small Male Rod-End Threads (Both Ends) Nfpa Interchangeable Model Based On Model 6.00Ktd4Ma3Us13Ya14Ya08.94 Special Model Special Unf Rod-End Thread Repairable , Piston Magnet LipSeal Piston Small Male Rod End Threads (Both Ends) NFPA Interchangeable Model Based On Model 6.00KTD4MA3US13YA14YA08.94 Special Model Special UNF Rod End Thread Repairable |
| Dia. | 2 X 1-3/8" No.1 Rods (Both Ends) , 2" X 1 3/8" |
| Function | Double-Acting Non-Lube NFPA Double-Ended Tie-Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing 17-4 PH Stainless Steel Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Tie-Rods Extended Both Ends Mounting (NFPA MX1) |
| Mounting Mode | Tie-Rods Extended Both Ends Mounting (NFPA MX1) |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 8.94" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Bore Size | Dia. | Mounting | Port Size | Rod End Style | Piston No. | Rod Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1P4MA0018811 | 4" | 1 1/2" | 5/8" | Sleeve Nut Mounting (NFPA MX5) | - | - | - | - | - | RFQ
|
 |
1P4MA0018263 | 6" | 2 1/2" | 1" | Cap Fixed Clevis Mounting (NFPA MP1) | - | - | - | - | - | RFQ
|
 |
1P4MA0018919 | 4" | 1 1/2" | 5/8" | Side Lug Mounting (NFPA MS2) | - | - | - | - | - | RFQ
|
 |
1P4MA0018871 | 11" | 4" | 1" , 1" No.1 | Cap Trunnion Mounting (NFPA MT2) | - | - | - | - | €1,110.16 | |
 |
1P4MA0018219 | 1 1/2" | 3 1/4" | 1" , 1" No.1 | Cap Fixed Clevis Mounting (NFPA MP1) | - | - | - | - | €606.38 | |
 |
1P4MA0018895 | 14 1/2" | 2 1/2" | 5/8" | Cap Fixed Clevis Mounting (NFPA MP1) | - | - | - | - | - | RFQ
|
 |
1P4MA0018983 | 3" | 4" | 1 3/8" | Cap Rectangular Flange Mounting (NFPA MF2) | - | - | - | - | - | RFQ
|
