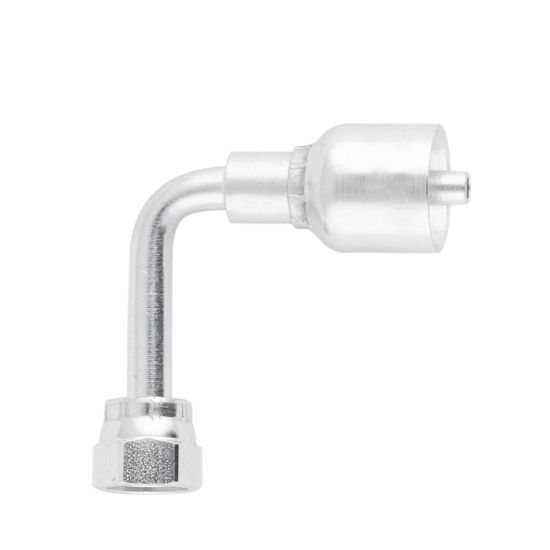

PARKER 1J143-6-4 Hydraulic Crimp Fitting, Steel x Steel, 90 Deg Long Elbow, 4 Hose Dash Size
Item: CT7ELWModel: 1J143-6-4Cross Ref: 55DD30
7 In Stock
Ships within 2 days via
5.00% off
€58.87 /unit
This product can only be shipped in multiples of 5Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Fitting Angle | 90° |
| Fitting Material | Steel |
| Fitting Movement | Swivel |
| Fitting Shape Angle | 90° , Long Elbow |
| For Hose Dash Size | -4 |
| For Hose Inside Dia. | 1/4" |
| For Use With Hose Series | 787TC Series, 787ST Series, 797TC Series, 797ST Series |
| Hose Fitting A Connection Type | Ors |
| Hose Fitting A Gender | Female |
| Hose Fitting A Size | 0.511" |
| Hose Fitting A Type | ORS |
| Hose Fitting B Connection Type | Crimp |
| Hose Fitting B Gender | Genderless |
| Hose Fitting B Size | 1/4" |
| Hose Inside Dia. | 1/4" |
| Material | Steel |
| Max. Working Pressure @ 70 Deg. F | 9200 psi |
| Reusable | No |
| Series | 43 Series |
| Standard Thread Size | 3/8" |
| Standard/metric | Standard Fitting |
| Style | Seal Lok (O Ring Face Seal) |
| Thread Size | 0.511"-27 |
| Thread Type | ORS |
| Type | Parkrimp (Crimp) Fittings |
| Vacuum | Not Rated |
Shipping Info:
| Ship weight (kg) | 0.81 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | CH |
Product Variants
| Model | Hose Fitting B Size | Hose Fitting A Size | Hose Inside Dia. | For Hose Dash Size | For Hose Inside Dia. | Standard Thread Size | Fitting Shape Angle | Max. Working Pressure @ 70 Deg. F | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1J143-20-20 | 1 1/4" | 1 1/16" | 1 1/4" | -20 | 1 1/4" | - | - | - | €348.48 | |
| 1J143-10-10 | 5/8" | 0.511" | 5/8" | -10 | 5/8" | 5/8" | 90° | 6000 psi | €108.08 | |
| 1J143-10-12 | 5/8" | 0.511" | 3/4" | -12 | 5/8" | 5/8" | 90° | 6000 psi | €139.56 | |
| 1J143-12-12 | 3/4" | 0.511" | 3/4" | -12 | 3/4" | 3/4" | 90° | 6000 psi | €130.45 | |
| 1J143-4-4 | 1/4" | 0.511" | 1/4" | -4 | 1/4" | 1/4" | 90° | 9200 psi | €56.37 | |
| 1J143-10-8 | 1/2" | 0.511" | 1/2" | -8 | 1/2" | 5/8" | 90° | 6000 psi | €96.76 | |
| 1J143-8-8 | 1/2" | 0.511" | 1/2" | -8 | 1/2" | 1/2" | 90° | 6000 psi | €82.56 |
