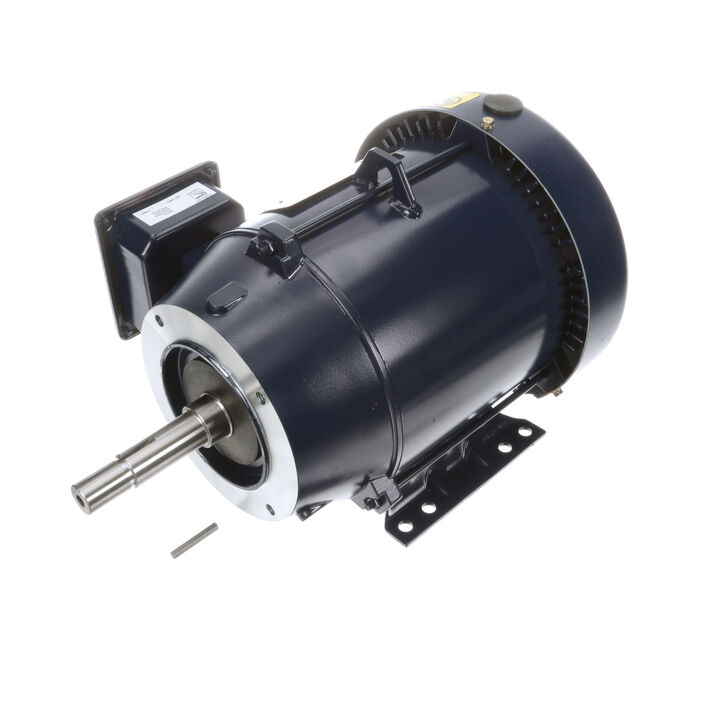

MARATHON MOTORS 184TTFBD6006 GT3112A / 184TTFBD6006CB Close Coupled Pump Motor, 5/3 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 RPM
Item: CT2FPCModel: 184TTFBD6006Cross Ref: 52NU15 / GT3112A / 184TTFBD6006CB
In Stock
Get it by Friday, Aug 28
€2,149.02 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Bolt Circle Dia. | 5 7/8" |
| Cc Number | CC003A |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1, F2 |
| Duty Cycle | Continuous |
| Efficiency | 88.5% |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 12.4/6.2A |
| Height | 9 13/16" |
| Hp | 5 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Inverter Rating | 10:1 |
| Length Less Shaft | 14 1/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face, Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | JM Threaded |
| Motor Shaft Rotation | CW, CCW |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Sub Application | Close Coupled Pump |
| Motor Thermal Protection | None |
| Motor Type | Three Phase |
| Mounting Type | Face, Base |
| Nameplate Speed | 3525 RPM |
| Nema Design | A |
| No. Of Speeds | 1 |
| Nominal Efficiency | 88.5% |
| Overall Height | 9 13/16" |
| Overall Length | 18 3/8" |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/4" |
| Shaft Length | 4 1/4" |
| Speed | 3001-3600 RPM |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 40.5 |
| Ship height (cm) | 32.59 |
| Ship length (cm) | 54.36 |
| Ship width (cm) | 40.01 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Phase | Frequency | Motor Enclosure Design | Hp | Full Load Amps | Mounting Type | Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
182TTDW17008 | 208-230/460V AC | 3 | 50/60 Hz | - | 5 hp | 13.6-12.4/6.2A | Face | 1.15 | €1,523.55 | |
 |
256TTDBD6085 | 230/460V AC | 3 | 60 Hz | Open Dripproof | 10 hp | 25.6/12.8A | Face, Base | 1.15 | €4,204.87 | |
 |
286TTDBD6085 | 230/460V AC | 3 | 60 Hz | Open Dripproof | 20 hp | 52.5/26.3A | Face, Base | 1.15 | €4,722.02 | |
 |
256TTDBD6037 | 230/460V AC | 3 | 60 Hz | Open Dripproof | 20 hp | 48.5/24.3A | Face, Base | 1.15 | €3,147.27 | |
 |
284TTDBD6037 | 230/460V AC | 3 | 60 Hz | Open Dripproof | 25 hp | 62.5/31A | Face, Base | 1.15 | €5,143.51 | |
 |
256TTDBD6012 | 230/460V AC | 3 | 60 Hz | Open Dripproof | 25 hp | 59.5/29.7A | Face, Base | 1.15 | €3,172.32 | |
 |
284TTDBD6032 | 230/460V AC | 3 | 60 Hz | Open Dripproof | 25 hp | 62.5/31A | Face, Base | 1.15 | €5,143.51 |
