PARKER 16E Quick Coupling, 3/8 Inch Thread Size, Steel
Item: AC4WBVModel: 16ECross Ref: 30N357
7 In Stock
Ships within 2 days via
10.00% off
€66.61 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Quick Coupler |
| Application | Pneumatic |
| Barbed | No |
| Body Material | Steel |
| Body Size | 1/2" |
| Configuration Type | Male NPTF |
| Connection Type | NPT |
| Coupler/nipple/shell | Coupler |
| Coupling Component | Socket |
| Coupling Locking Type | Sleeve |
| Finish | Trivalent Chrome |
| Finish, Coating | Trivalent Chromium Plated |
| Fitting Type | MNPT |
| Hose Connection Type | MNPT |
| Hose Fitting Gender | Male |
| Hose Fitting Size | 3/8" |
| Includes Valve | Yes |
| Interchange Type | Automotive, Tru Flate |
| Length | 2.93" |
| Lock Type | Sleeve |
| Locking Type - Quick Connect Air Couplings | Sleeve |
| Material | Steel |
| Max. Flow Rate | 3114.85 LPM |
| Max. Operating Pressure | 300 psi |
| Max. Operating Temp. | 250 Deg F |
| Max. Operating Temp. | 250°F |
| Max. Outside Dia. | 1 3/16" |
| Max. Pressure | 300 psi |
| Max. Pressure Range | 250 psi to 499 psi |
| Max. Working Pressure | 300 psi |
| Max. Working Pressure @ 70 F | 300 psi |
| Min. Operating Temp. | -40°F |
| Overall Length | 2 15/16" |
| Pipe Size | 3/8" |
| Plating | Zinc |
| Quick Connect Air Coupling Locking Type | Sleeve |
| Quick Connect Air Coupling Material | Steel |
| Quick Connect Air Coupling Seals | Nitrile |
| Quick Coupler Type | Pneumatic Manual Connect |
| Seal | Nitrile |
| Seal Material | Nitrile |
| Seals | Nitrile |
| Seals - Quick Connect Air Couplings | Nitrile |
| Series | 10 Series |
| System Of Measurement | Inch |
| Temp. Range | -40°F to +250°F |
| Thread 1 Size | 3/8" |
| Thread Size | 3/8"-18 |
| Thread Type | Male |
| Valve Type | Tubular |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 3.02 |
| Ship length (cm) | 7.46 |
| Ship width (cm) | 3.05 |
| HS code | 8481803090 |
| Country of Origin | US |
Product Variants
| Model | Body Size | Hose Fitting Size | Thread Size | Interchange Type | Body Material | Max. Flow Rate | Max. Outside Dia. | Coupling Component | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 3/8" | 3/8" | 3/8"-18 | Automotive, Tru Flate | Steel | 1415.84 LPM | 1 1/16" | Socket | €61.37 | |
| 14C | 3/8" | 1/4" | 1/4"-18 | Automotive, Tru Flate | Steel | 1415.84 LPM | 1 1/16" | Socket | €70.70 | |
| 14F | 3/8" | 1/2" | 1/2"-14 | Automotive, Tru Flate | Steel | 1415.84 LPM | 1 1/16" | Socket | €78.93 | |
| 16 | 1/2" | 1/2" | 1/2"-14 | Automotive, Tru Flate | Steel | 3114.85 LPM | 1 3/16" | Socket | €60.66 | |
| 16G | 1/2" | 3/4" | 3/4"-14 | Automotive, Tru Flate | Steel | 3114.85 LPM | 1 5/16" | Socket | €77.71 | |

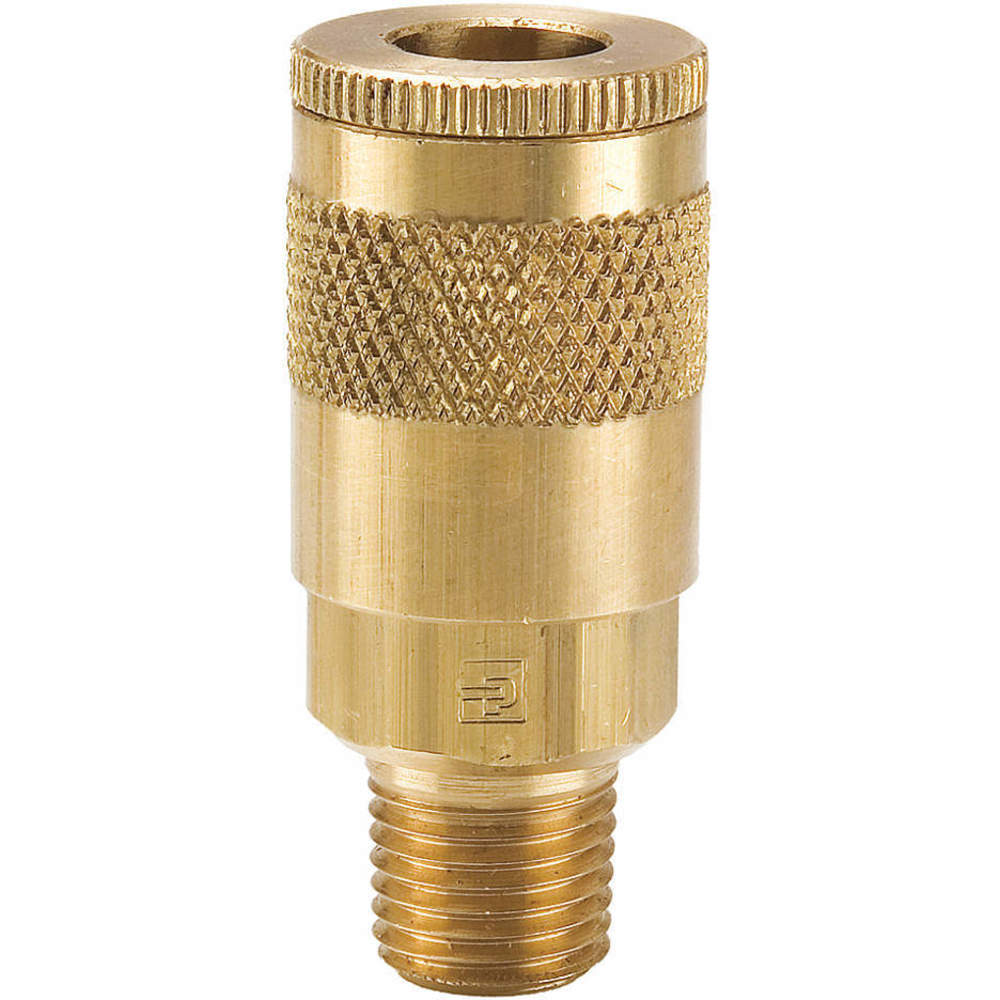

| B12 | 1/4" | 1/4" | 1/4"-18 | Tru Flate Automotive | Brass | 707.92 LPM | 15/16" | Socket | €34.95 | |
| B12A | 1/4" | 1/8" | 1/8"-27 | Automotive, Tru Flate | Brass | 707.92 LPM | 15/16" | Socket | €46.10 |
