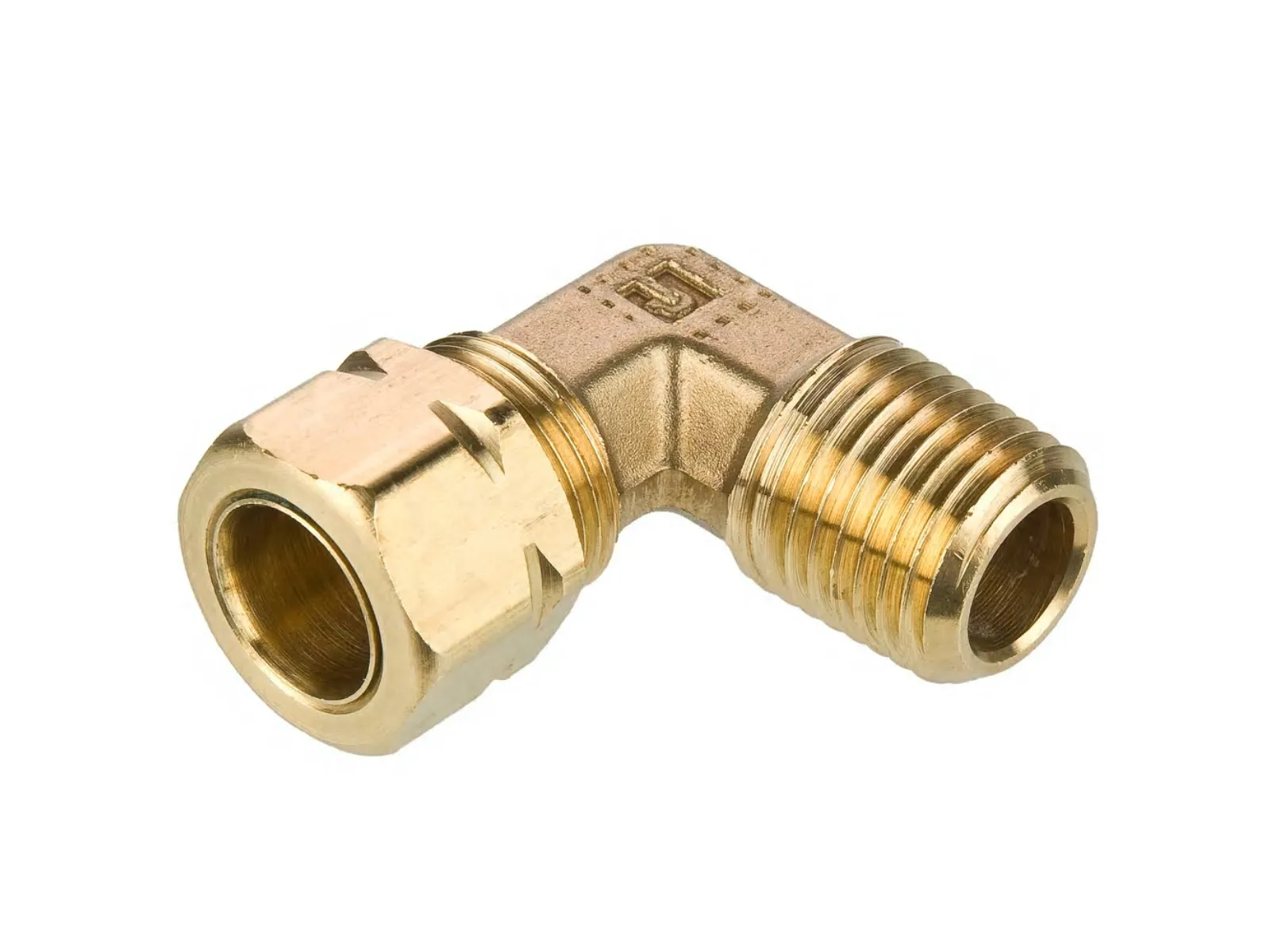

PARKER 169CA-5-2 90 Deg Elbow, 5/16 Inch Outside Diameter, Brass
Item: AE9QDFModel: 169CA-5-2Cross Ref: 6LG06
7 In Stock
Ships within 2 days via
10.00% off
€101.41 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Fitting |
| Application | Air, Inert Gases, Non-Combustible Gases, Potable Water |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Elbow |
| Body Material | Forged Brass |
| Compatible Tube Material | Aluminum, Copper, FEA, PFA, TFE, Thermoplastic |
| Compression Thread Size | 1/8" |
| Configuration Sub-type | Male Elbow 90° |
| Configuration Type | Tube To Male |
| Connection Type | NPTF |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 5/16" |
| Fitting Side B Connection Type | MNPT |
| Fitting Side B Pipe Size | 1/8" |
| Material | Brass |
| Max. Operating Pressure | 2800 psi |
| Max. Operating Temp. | 121°C |
| Max. Operating Temp. | 121 Deg C |
| Max. Pressure | 1200 psi |
| Maximum Operating Pressure | 1200 psi |
| Maximum Operating Temperature | 200°F |
| Min. Operating Temp. | -54°C |
| Minimum Operating Temperature | 65°F |
| Nut Material | Brass |
| Outer Dia. 1 | 5/16" |
| Overall Length | 27/32" |
| Pipe Size | 1/8" |
| Product Datasheet | parker-169ca-5-2.pdf |
| Series | Compression Series |
| Sleeve Material | Brass |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow Adapter |
| Style | Tube To Pipe |
| System Of Measurement | Imperial |
| Temp. Range | -65°F to +250°F |
| Thread 1 Size | 1/8" |
| Thread 1 Type | NPT |
| Thread Size B | 1/2"-24 |
| Tube Outside Dia. | 0.312" |
| Tube Size | 5/16" |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 0.79 |
| Ship length (cm) | 2.14 |
| Ship width (cm) | 6.86 |
| HS code | 7412200035 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Tube Size | Max. Pressure | Pipe Size | Fitting Side A Tube Outer Diameter | Fitting Side B Pipe Size | Thread Size B | Overall Length | Tube Outside Dia. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 169CA-12-12 | 3/4" | 550 psi | 3/4" | 3/4" | 3/4" | 1"-18 | 1 21/32" | 3/4" | 5 | €421.93 | |
| 169CA-3-4 | 3/16" | 1900 psi | 1/4" | 3/16" | 1/4" | 3/8"-24 | 7/8" | 0.188" | 10 | €228.17 | |

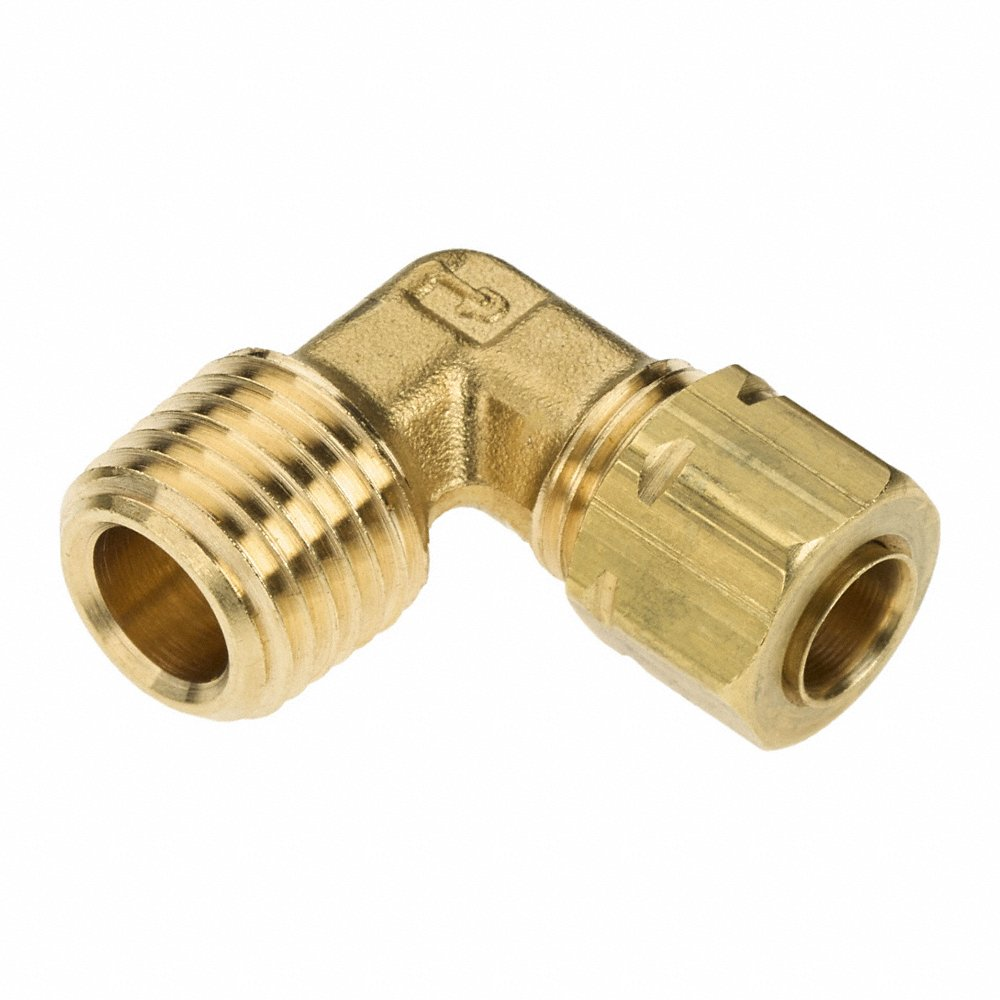

| 169CA-4-4 | 1/4" | 1400 psi | 1/4" | 1/4" | 1/4" | 7/16"-24 | 7/8" | 1/4" | 1 | €11.22 | |
| 169CA-4-6 | 1/4" | 1400 psi | 3/8" | 1/4" | 3/8" | 7/16"-24 | 29/32" | 1/4" | 10 | €255.03 | |
| 169CA-5-4 | 5/16" | 1200 psi | 1/4" | 5/16" | 1/4" | 1/4" | 15/16" | 0.312" | 25 | €344.13 | |
| 169CA-6-2 | 3/8" | 1000 psi | 1/8" | 3/8" | 1/8" | 9/16"-24 | 31/32" | 3/8" | 10 | €148.50 | |
| 169CA-6-4 | 3/8" | 1000 psi | - | 3/8" | 1/4" | 9/16"-24 | 31/32" | 3/8" | 25 | €337.07 |
