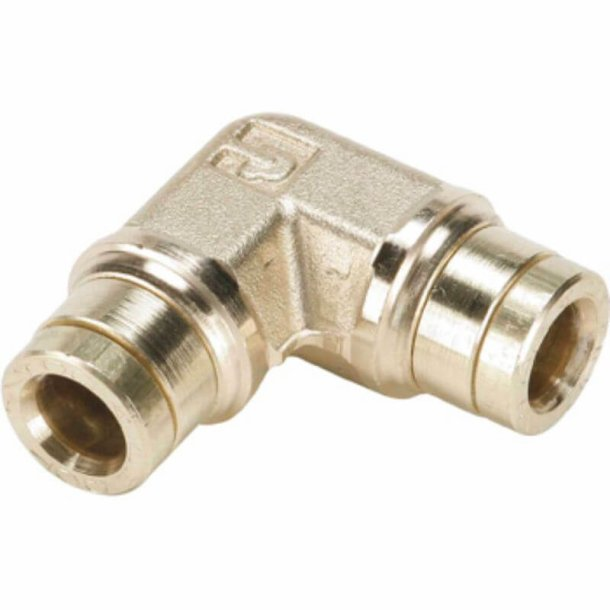

PARKER 165PLP-8 Union Elbow, Push-To-Connect Fitting
Get it by Thursday, Aug 20
€23.80 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Union Elbow |
| Angle | 90° |
| Application | Air, Inert Gases, Oils, Vacuum |
| Color | Silver |
| Compatible Tube Hardness | 95 Shore A, 90 Shore A |
| Compatible Tube Material | Polyethylene, Polypropylene, Polyurethane, Rigid Nylon, Semi Rigid Nylon |
| Connection Type | 1/2" Push To Connect Connection On All Ends , Tube x Tube |
| Design | Push-In Design#165PLP Model |
| Equivalent To | 165PLP8 |
| Finish, Coating | Nickel Plated |
| Fitting Material | Brass |
| Fitting Shape | Elbow |
| Fitting Side A Connection Type | Push-To-Connect |
| For Tube Outside Dia. | 1/2" |
| For Use With | General Purpose |
| Function | Pneumatic Instant 90° Union Elbow Angled Fitting |
| Includes Pre-applied Thread Sealant | No |
| Main Function | Air Fitting |
| Material | Brass Body (Nickel-Plated) , Nickle Plated Brass |
| Material Grade | Grade C37700 |
| Max. Operating Pressure | 300 psi |
| Min. Operating Temp. | 0°F |
| Mm | 0.5 mm |
| No. Of Inlet | 1 |
| No. Of Outlet | 1 |
| O - Ring Material | Nitrile |
| Overall Length | 1 5/32" |
| Product Datasheet | parker-164plp-2.pdf |
| Release Ring Color | Black |
| Release Ring Material | Nitrile Rubber |
| Release Type | Button |
| Resistance Properties | Chemical Resistant |
| Shape | L |
| Size | 1/2" Tube x 1/2" Tube |
| Style | Push To Connect |
| Sub Range Name | Prestolok Series |
| System Of Measurement | Imperial |
| Temp. | 0°F to 200°F |
| Thread Sealant Type | Acrylic |
| Type | Prestolok |
| Vacuum Rating | 28 in. hg |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Overall Length | Size | Type | Color | Resistance Properties | Fitting Side A Connection Type | Thread Sealant Type | Min. Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
165PLP-2 | 3/4" | - | - | Silver | Chemical Resistant | Push-To-Connect | Acrylic | 0°F | €12.29 | |
|
165PLP-4 | 27/32" | - | - | Silver | Chemical Resistant | Push-To-Connect | Acrylic | 0°F | €9.94 | |
 |
165PLP-5 | 31/32" | 5/16" Tube x 5/16" Tube | Prestolok | Silver | Chemical Resistant | Push-To-Connect | Acrylic | 0°F | €17.20 | |
|
165PLP-5/32 | 25/32" | - | - | Silver | Chemical Resistant | Push-To-Connect | Acrylic | 0°F | €12.96 | |
 |
165PLP-6 | 1" | 3/8" Tube x 3/8" Tube | - | Silver | Chemical Resistant | Push-To-Connect | Acrylic | 0°F | €16.93 |
