WELLER Soldering Tips
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1
N1
O1
P1
Q1
R1
S1
T1
U1
V1
W1
X1
Y1
Z1
A2| Style | Model | Tip Type | Tip Width | Tip Length | Tip Thickness | Tip Angle | Type | Size | Esd Safe | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | CT5C7 | - | - | - | - | - | - | - | - | 1 | €15.37 | |
| B | MT1 | - | - | - | - | - | - | - | - | 2 | €15.88 | |
| C | EPH101 | - | - | - | - | - | - | - | - | 1 | €18.41 | |
| D | XNTB | - | - | - | - | - | Chisel | 2.4 mm | - | 1 | €20.55 | |
| E | XNT1SC | - | - | - | - | - | Fine Chisel | 0.2 mm | - | 1 | €38.40 | |
| F | RT5MS | Bent Chisel | 0.8 mm | 24 mm | 0.4 mm | 30° | RT5MS Needle | 0.8 mm | - | 1 | €65.47 | |
| G | RT5 | Bent Chisel | 0.8 mm | 24 mm | 0.4 mm | 30° | Bent Chisel | 0.032" | - | 1 | €62.87 | |
| H | XNT1X | Bent Conical | 0.4 mm | 28 mm | - | - | - | 0.4 mm | - | 1 | €23.50 | |
| I | RT13MS | Bent Conical | 0.4 mm | 26.5 mm | - | 30° | RT13MS Pointed | 0.4 mm | - | 1 | €92.33 | |
| J | XTGW1 | Bevel | 2.3 mm | 37 mm | - | - | Gull Wing | 2.3 mm | - | 1 | €44.89 | |
| K | XTF30 | Bevel | 1.2 mm | 37 mm | - | 30° | Round Slope | 1.2 mm | - | 1 | €33.96 | |
| L | RT6 | Bevel | 1.2 mm | 19 mm | - | 45° | Round Slope | 0.048" | - | 1 | €62.67 | |
| M | XTAA | Bevel | 1.6 mm | 37 mm | - | 60° | Round, Sloped | 1.6 mm | - | 1 | €33.93 | |
| N | XTCC | Bevel | 3.2 mm | 37 mm | - | 45° | Chisel | 3.2 mm | - | 1 | €44.16 | |
| O | RT6MS | Bevel | 1.2 mm | 19 mm | - | 45° | RT6MS Needle | 1.2 mm | - | 1 | €65.92 | |
| P | XNT4 | Bevel | 1.2 mm | 29.5 mm | - | 45° | Cylindrical | 1.2 mm | - | 1 | €20.07 | |
| Q | RT10 | Bevel | 2 mm | 21 mm | 1.2 mm | - | Gull Wing | 0.048" | - | 1 | €63.22 | |

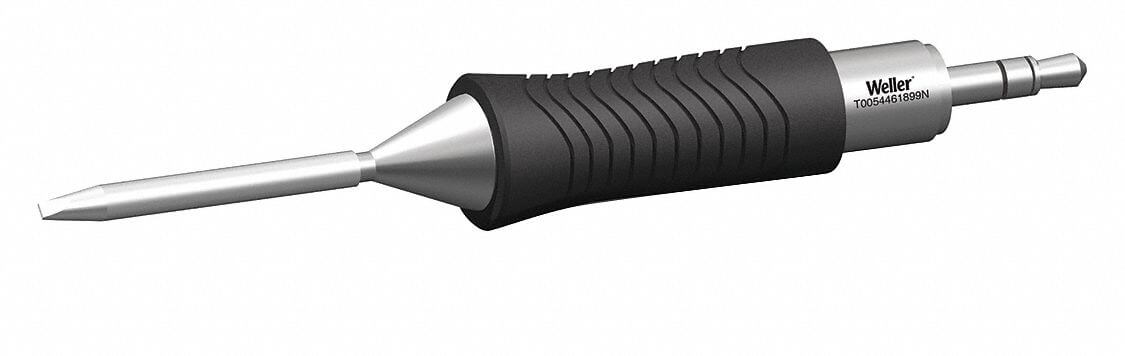

| R | RT4MS | Chisel | 1.5 mm | 19 mm | 0.4 mm | - | Chisel | 1 1/2" | - | 1 | €66.85 | |

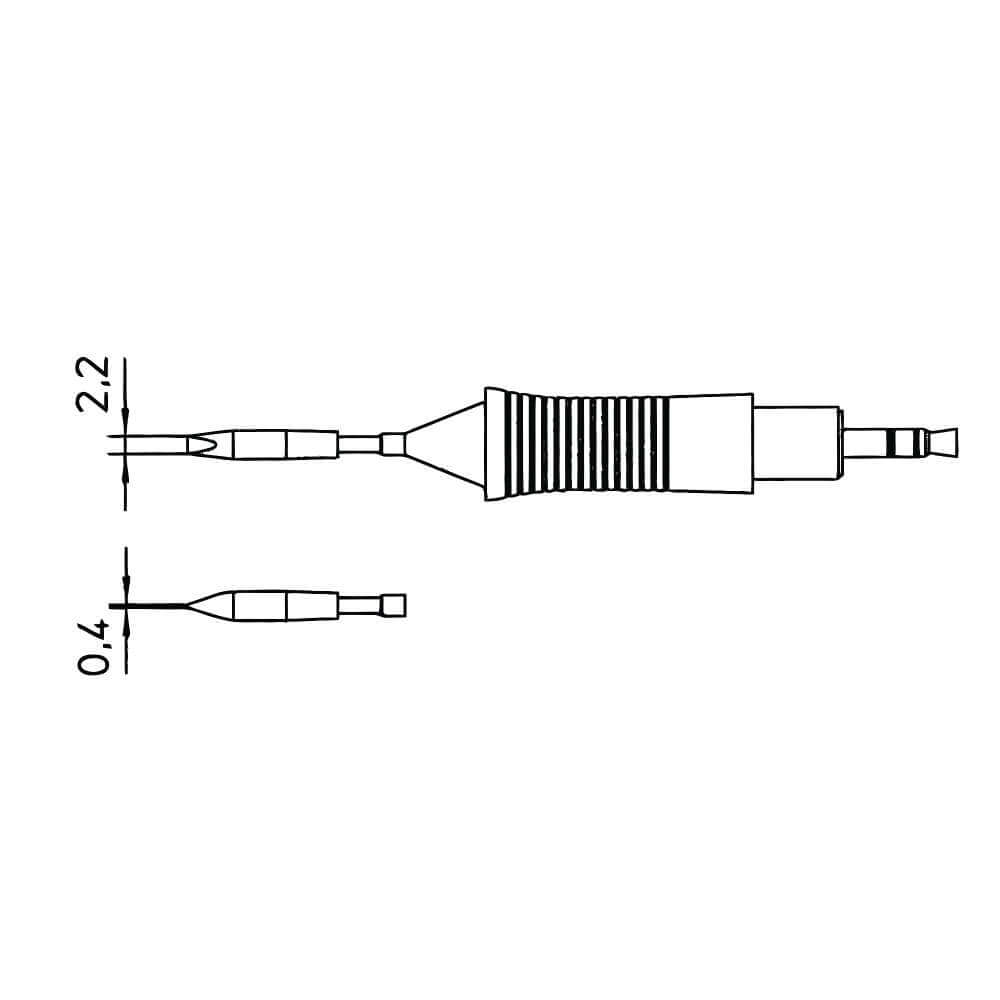

| S | RT8MS | Chisel | 2.2 mm | 19 mm | 0.4 mm | - | RT8MS Needle | 2.2 mm | - | 1 | €63.17 | |

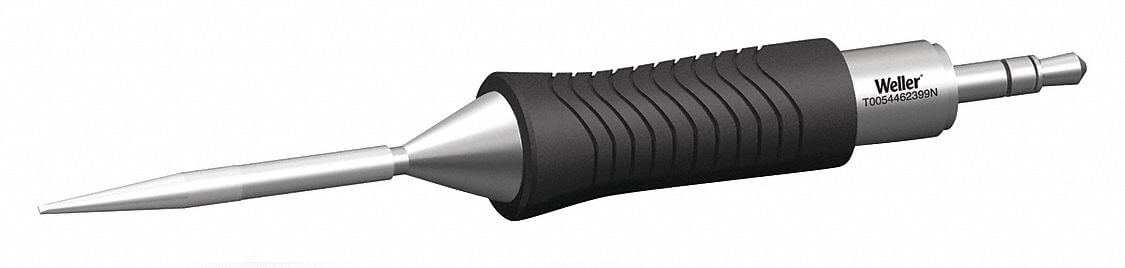

| T | RT9MS | Chisel | 0.8 mm | 24 mm | 0.4 mm | - | RT9MS Needle | 0.8 mm | - | 1 | €63.43 | |

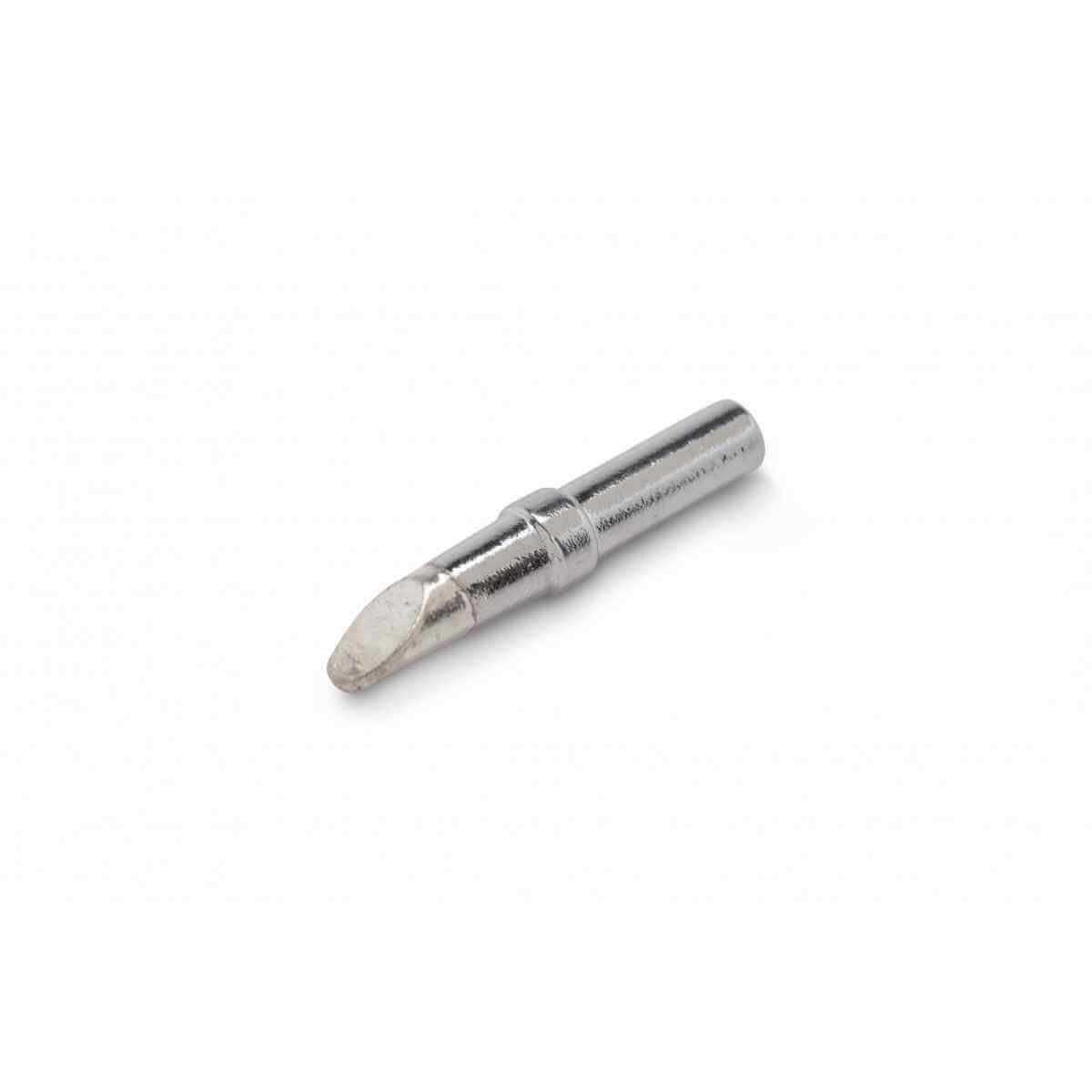

| U | ETDD | Chisel | 4.8 mm | 15.9 mm | 0.8 mm | - | Flat | 4.8 mm | - | 1 | €10.34 | |
| V | ETAA | Chisel | 1.6 mm | 34.5 mm | 0.8 mm | - | Flat | 1.6 mm | - | 1 | €10.76 | |

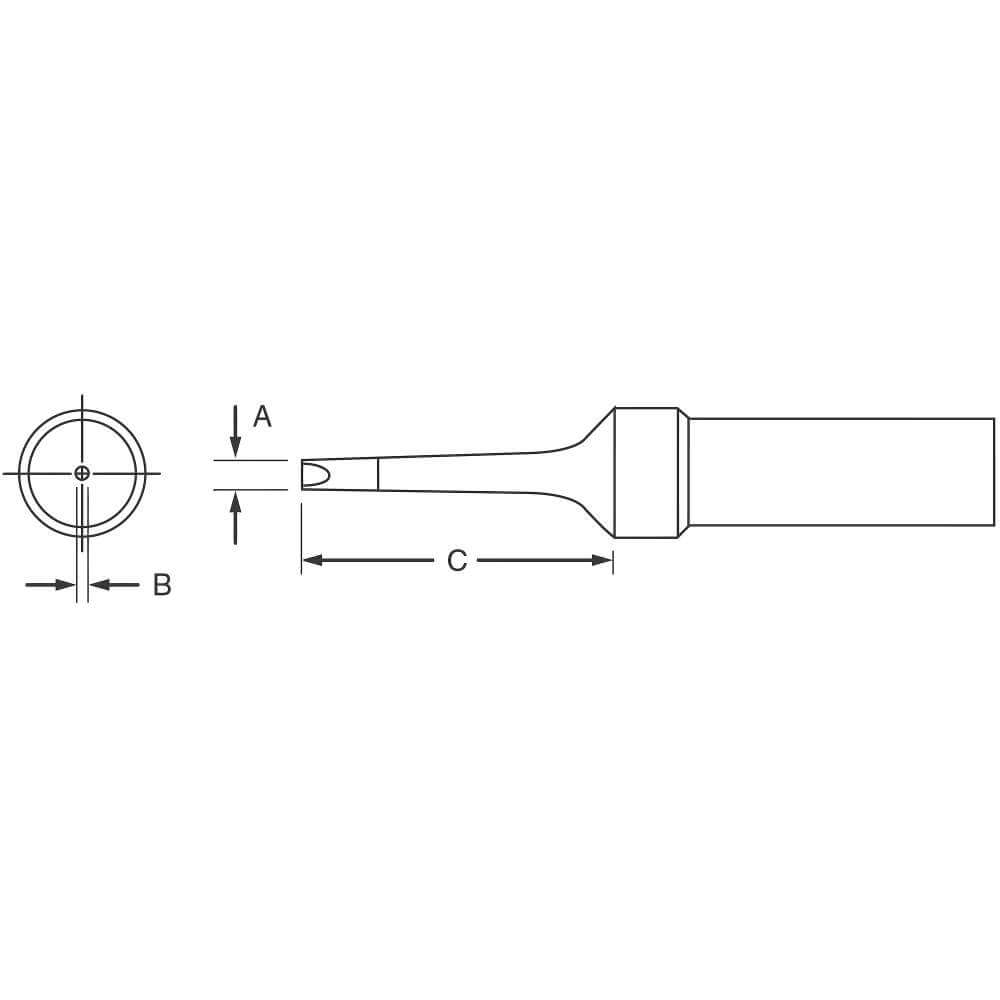

| W | ETR | Chisel | 1.6 mm | 34.5 mm | 0.7 mm | - | Narrow Screwdriver | 1.6 mm | - | 1 | €10.21 | |

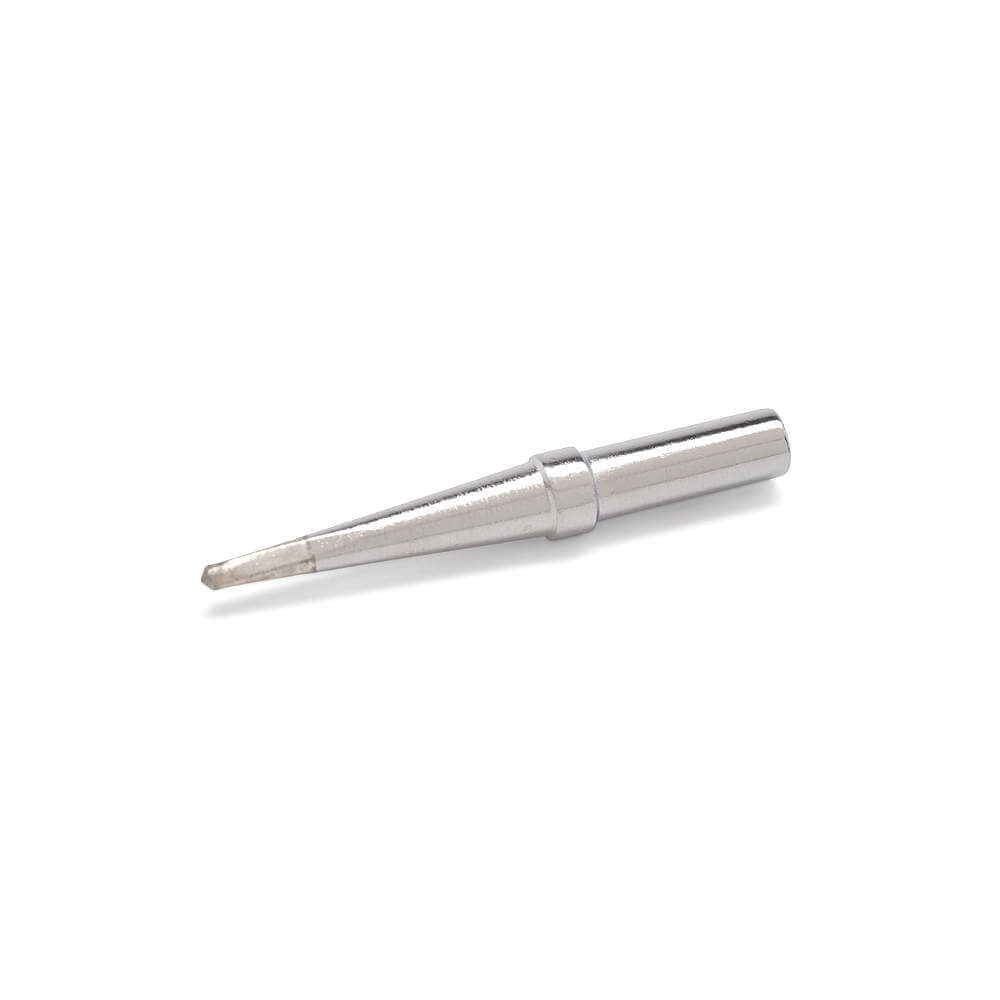

| X | ETL | Chisel | 2 mm | 43.5 mm | 1 mm | - | Screwdriver | 2 mm | - | 1 | €10.55 | |
| Y | XNTC | Chisel | 3.2 mm | 27 mm | 0.8 mm | - | Chisel | 3.2 mm | - | 1 | €20.55 | |
| Z | XNTD | Chisel | 4 mm | 28 mm | 0.8 mm | - | Chisel | 4 mm | - | 1 | €52.17 | |
| A1 | T0054461699N | Chisel | 1.3 mm | 20 mm | 0.4 mm | - | Chisel | 1.3 mm | - | 1 | €63.65 | |
| B1 | RT11 | Chisel | 3.6 mm | 19 mm | 0.9 mm | - | Chisel | 0.144" | - | 1 | €81.84 | |

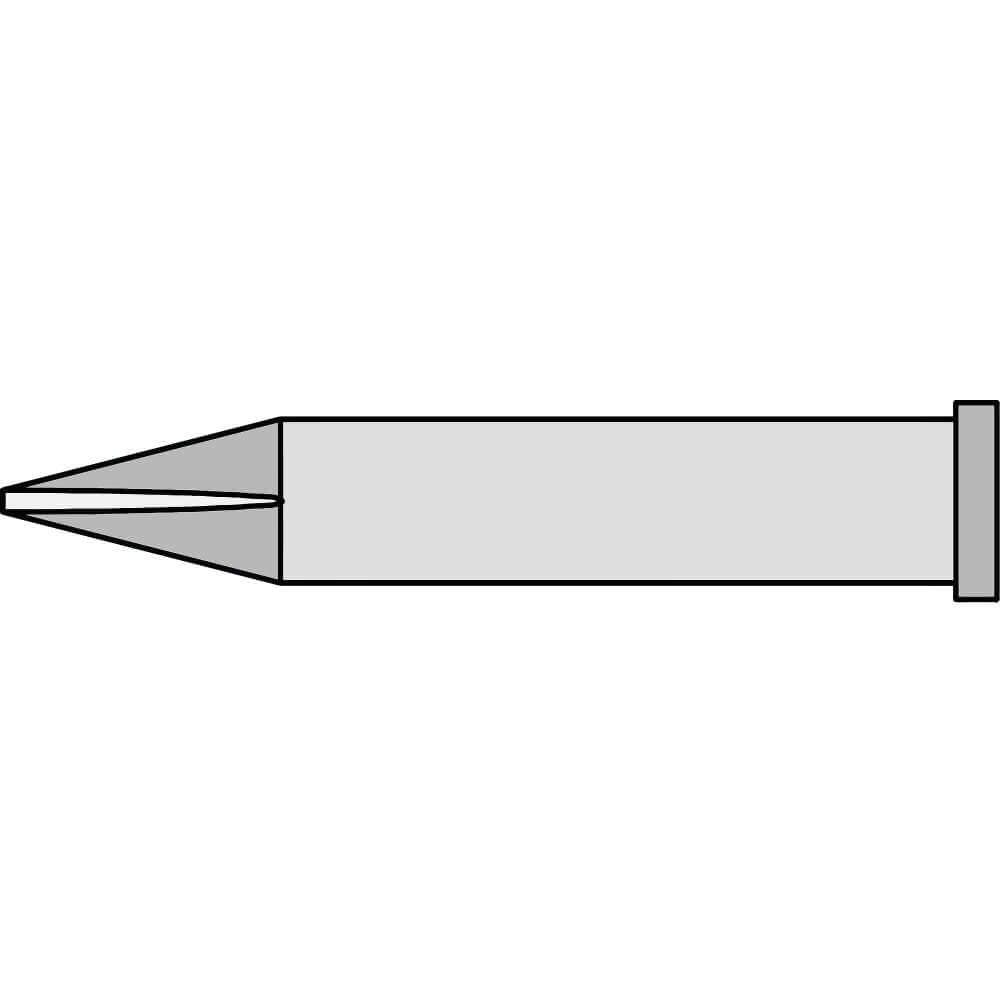

| C1 | XTH | Chisel | 0.8 mm | 37 mm | 0.4 mm | - | Chisel | 0.8 mm | - | 1 | €35.88 | |
| B1 | RT9 | Chisel | 0.8 mm | 24 mm | 0.4 mm | - | Chisel | 0.032" | - | 1 | €62.63 | |

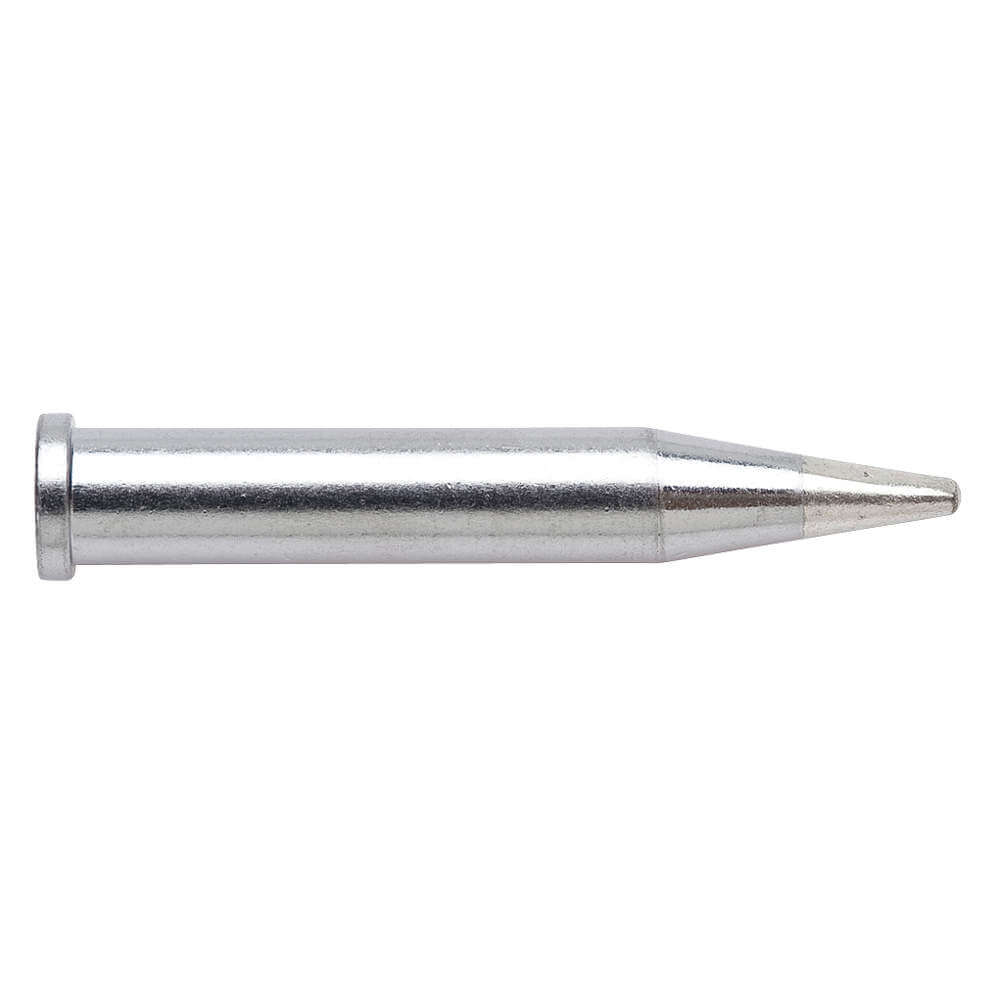

| D1 | XTAL | Chisel | 1.6 mm | 40 mm | 1 mm | - | Chisel XTAL | 1 mm | - | 1 | €34.31 | |
| B1 | RT8 | Chisel | 2.2 mm | 19 mm | 0.4 mm | - | Chisel | 0.088" | - | 1 | €63.15 | |
| E1 | ETH | Chisel | 0.8 mm | 34.5 mm | 0.4 mm | - | Screwdriver | 0.63" | - | 1 | €9.86 | |
| F1 | ETA | Chisel | 1.6 mm | 34.5 mm | 0.7 mm | - | Screwdriver | 0.63" | No | 1 | €11.15 | |
| G1 | ETD | Chisel | 4.6 mm | 34.5 mm | 0.8 mm | - | Screwdriver | - | No | 1 | €11.10 | |
| H1 | RT4 | Chisel | 1.5 mm | 19 mm | 0.4 mm | - | Chisel | 0.062" | - | 1 | €62.63 | |

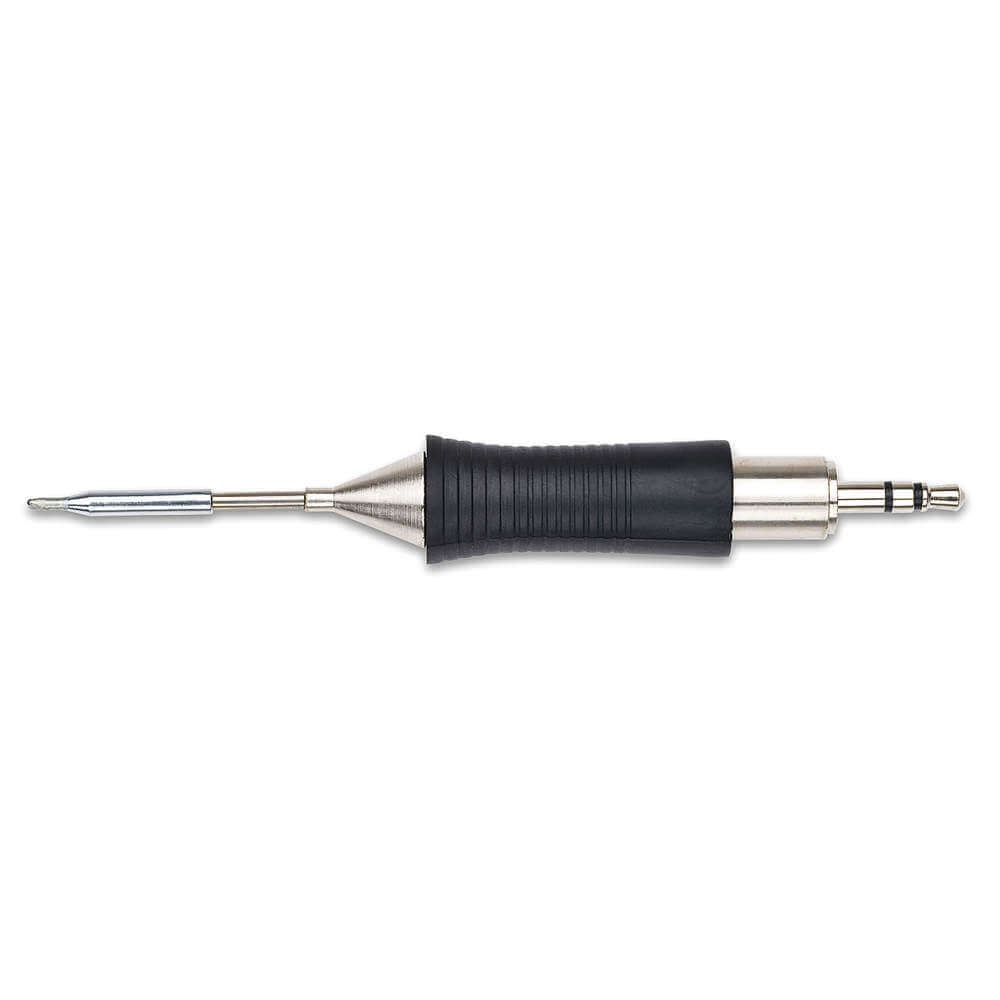

| I1 | RT3 | Chisel | 1.3 mm | 20 mm | 0.4 mm | - | Chisel | 0.052" | - | 1 | €66.22 | |

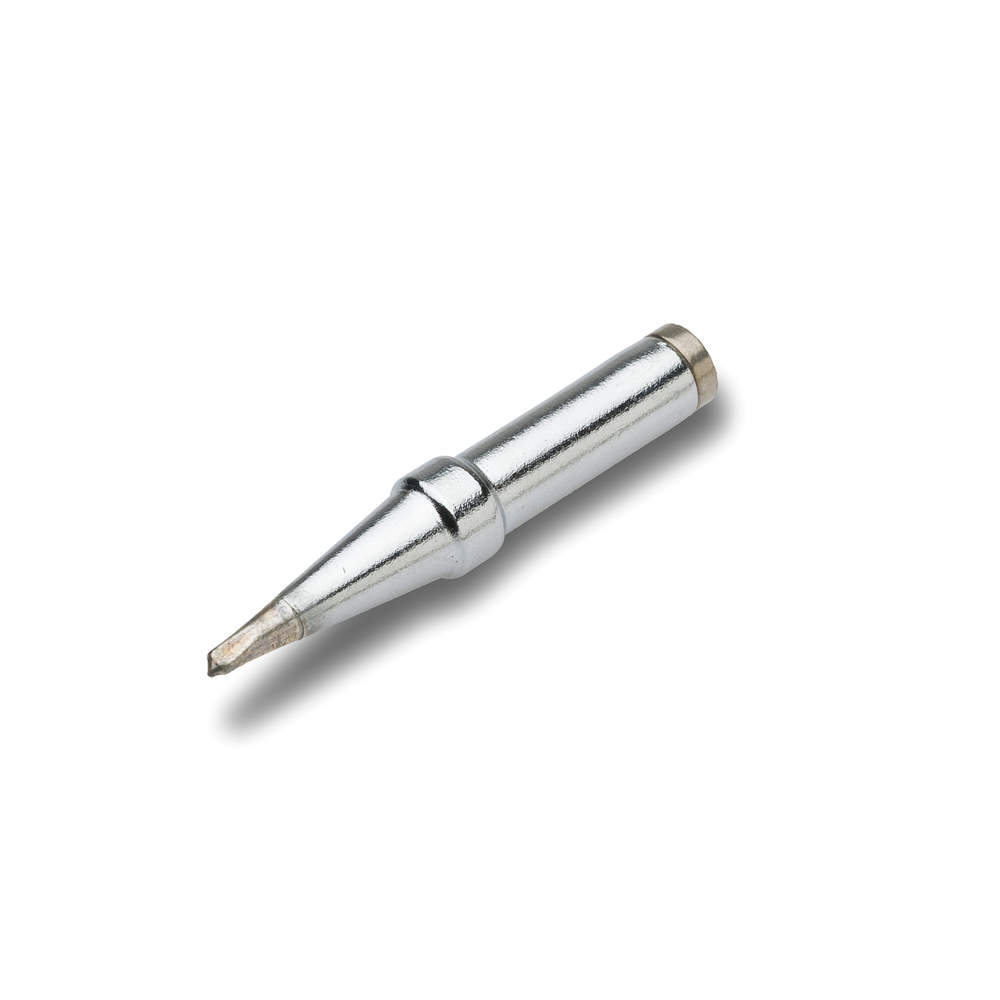

| J1 | PTR7 | Chisel | 1.6 mm | 33 mm | 0.7 mm | - | Narrow | - | - | 1 | €10.46 | |
| K1 | T0054443699 | Conical | 0.2 mm | 15 mm | - | - | Round | 0.59" | No | 1 | €12.73 | |
| L1 | ETP | Conical | 0.8 mm | 34.5 mm | - | - | Conical | 0.63" | - | 1 | €9.84 | |
| J1 | PTP7 | Conical | 0.79 mm | 15.87 mm | 0.3 mm | - | Conical | - | - | 1 | €9.71 | |
| M1 | RT1MS | Conical | 0.2 mm | 20 mm | - | - | RT1 Needle | 0.2 mm | - | 1 | €66.29 | |

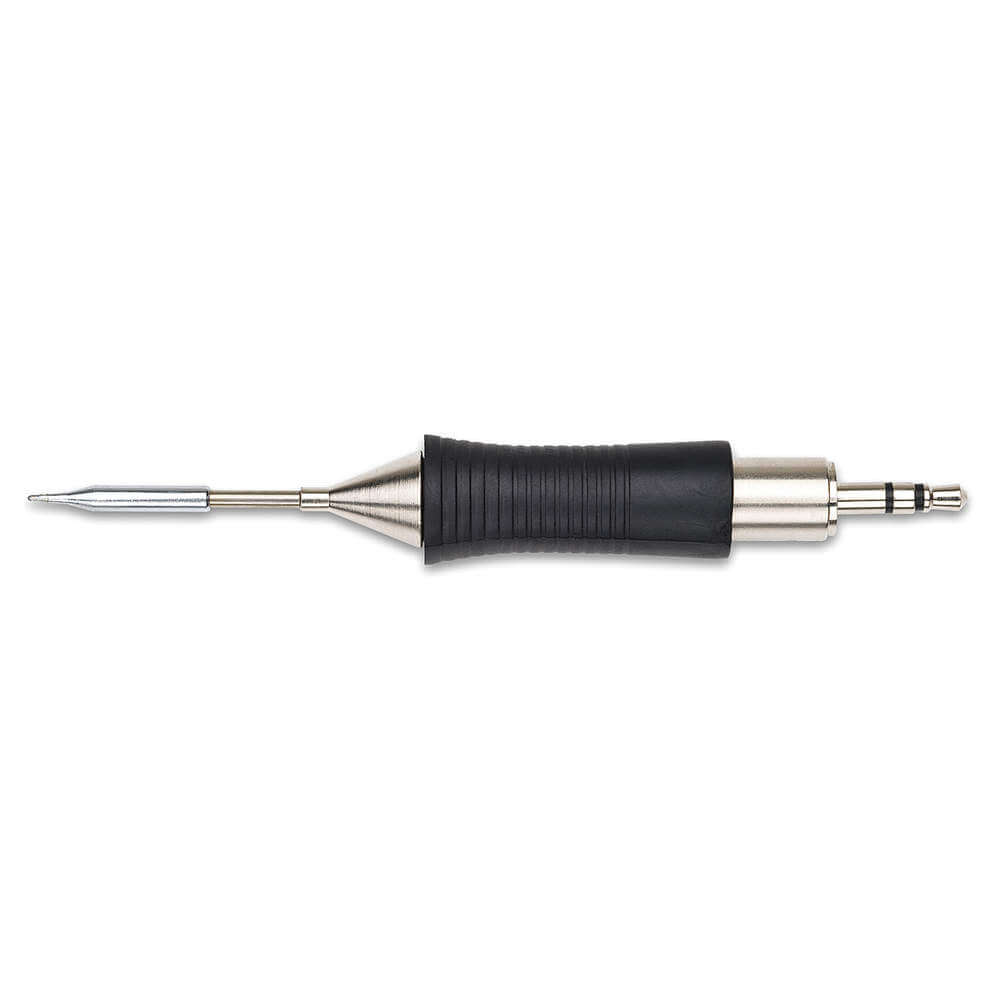

| N1 | RT2 | Conical | 0.8 mm | 19 mm | - | - | Fine Point | 0.032" | - | 1 | €65.84 | |

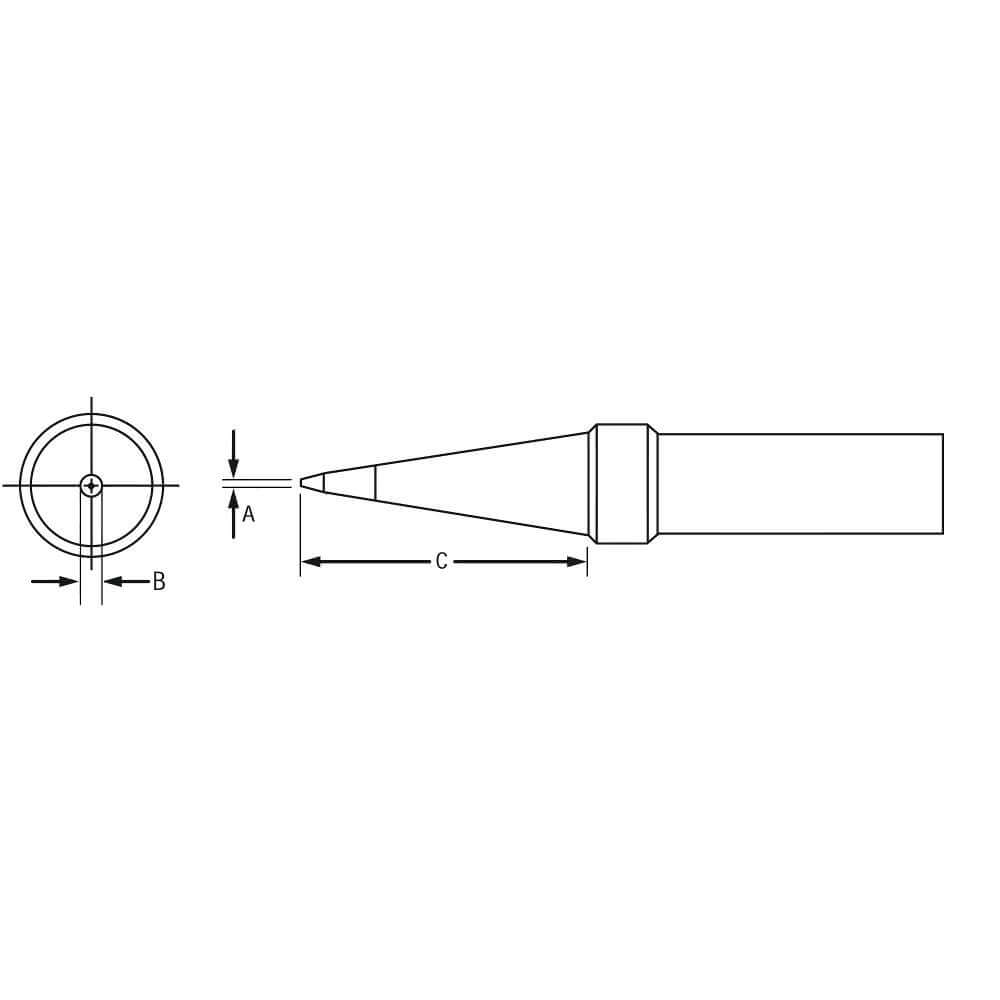

| O1 | ETT | Conical | 0.6 mm | 15.9 mm | - | - | Conical | - | No | 1 | €10.14 | |
| P1 | ETO | Conical | 0.8 mm | 43.5 mm | - | - | Long Conical | 0.015" | - | 1 | €10.31 | |

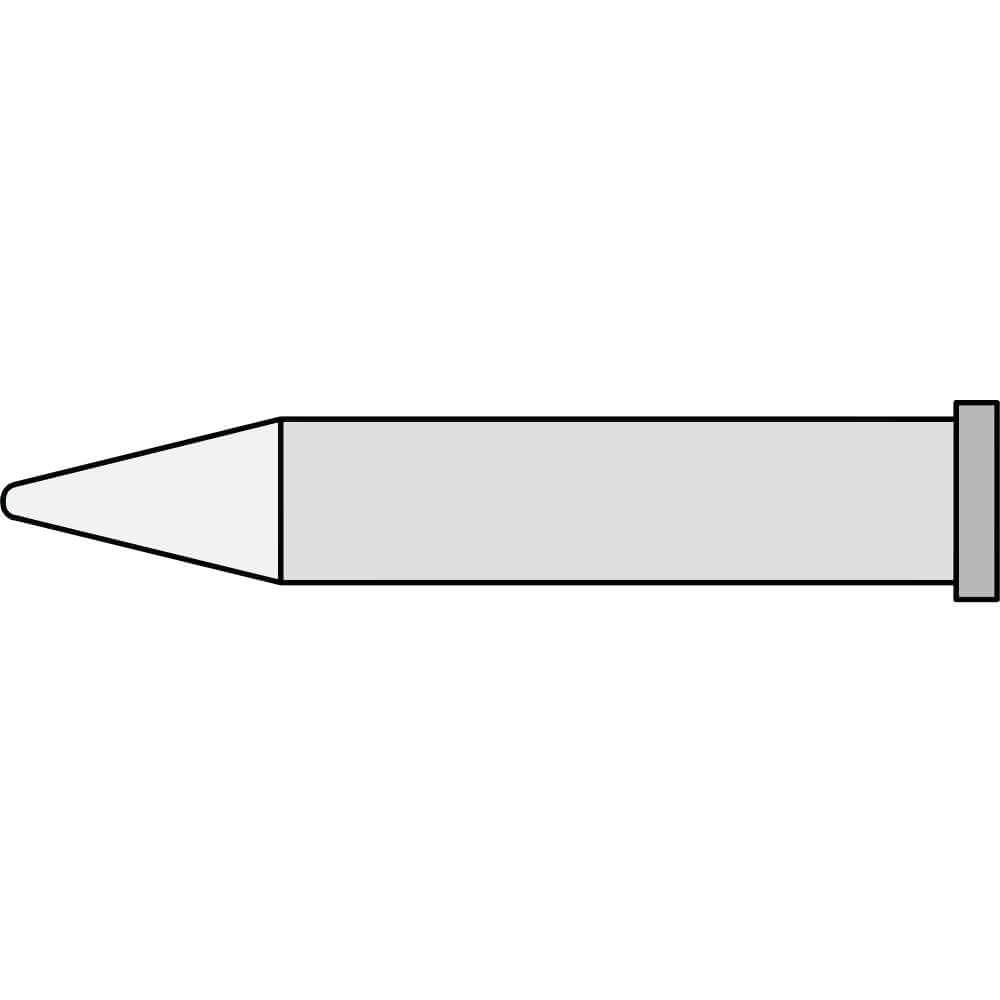

| Q1 | XTO | Conical | 1 mm | 37 mm | - | - | Long Conical | 1 mm | - | 1 | €35.77 | |
| R1 | ETS | Conical | 0.4 mm | 25.4 mm | - | - | Long Conical | 0.015" | - | 1 | €9.14 | |

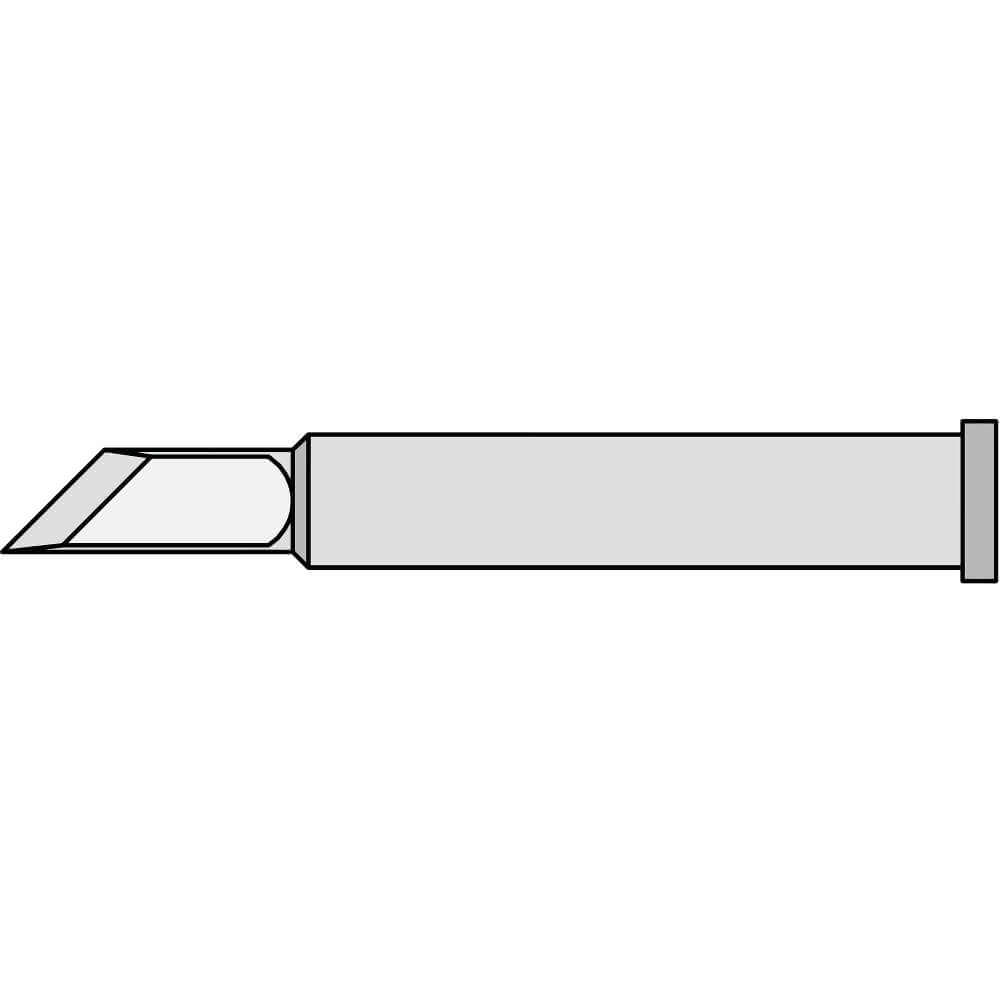

| S1 | XTKN | Knife | 2 mm | 45 mm | - | 60° | Knife | 2" | - | 1 | €34.10 | |
| T1 | RT7MS | Knife | 2.2 mm | 20 mm | 0.9 mm | 45° | RT7MS Needle | 2.2 mm | - | 1 | €68.52 | |
| U1 | ETK | Knife | 4.57 mm | 15.9 mm | 1.6 mm | - | Screwdriver | 1.2 mm | - | 1 | €9.93 | |

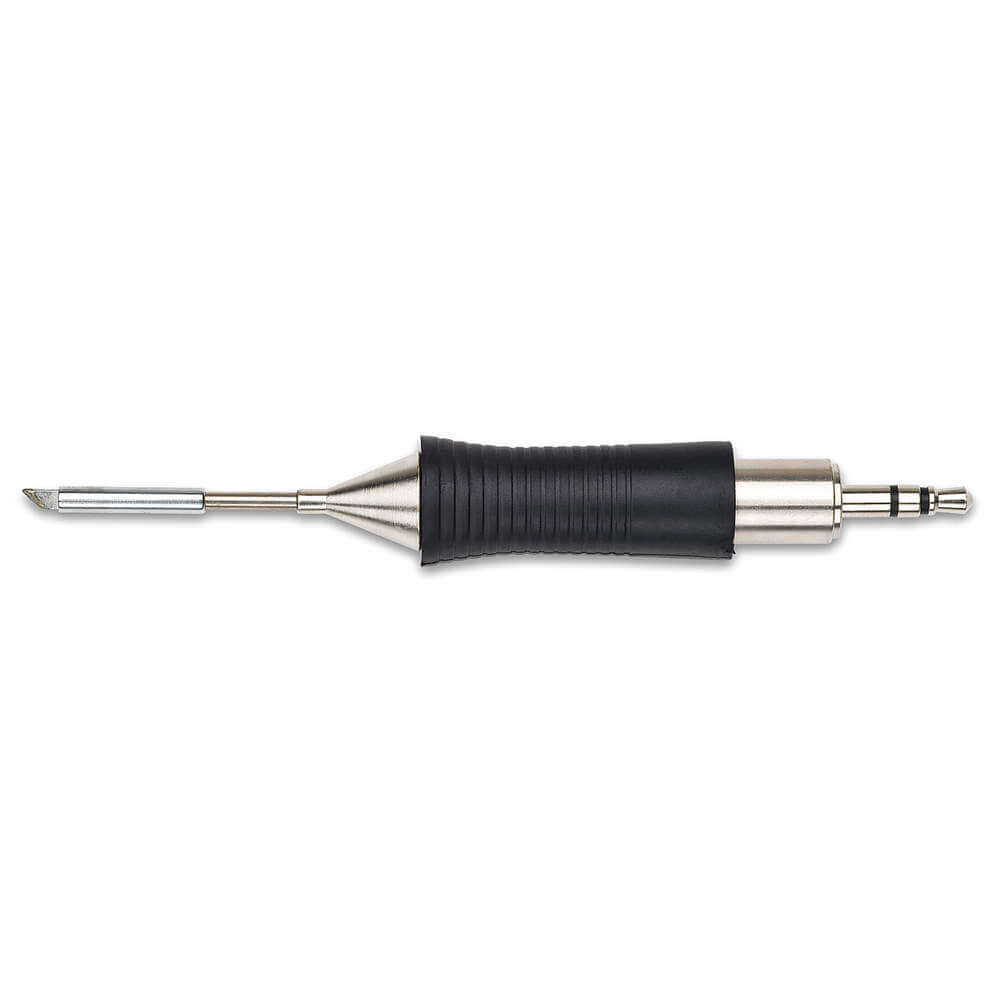

| V1 | RT7 | Knife | 2.2 mm | 20 mm | 0.9 mm | 45° | Knife | 0.088" | - | 1 | €67.68 | |
| W1 | RT14MS | Round | - | - | - | - | Round | 0.4 mm | - | 1 | €65.60 | |

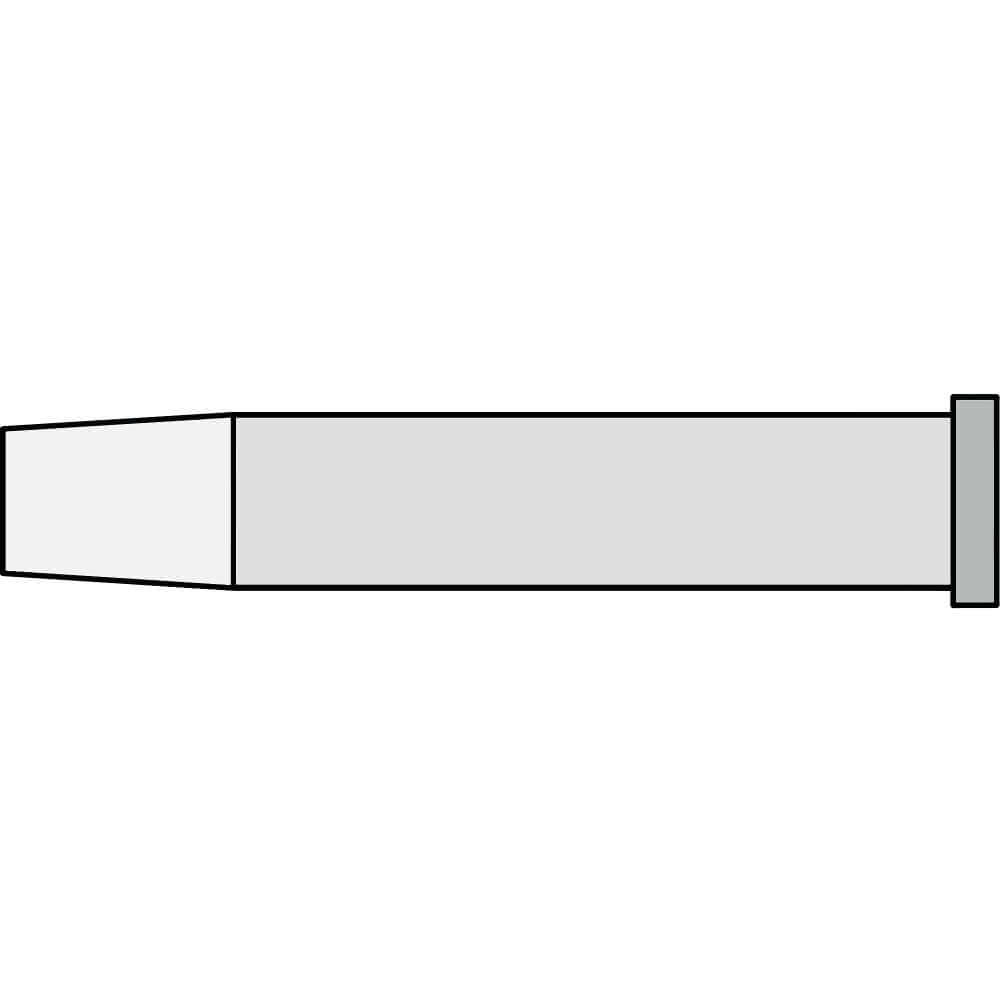

| X1 | XTDS | Round | 5 mm | 35 mm | - | - | Round | 5" | - | 1 | €33.90 | |

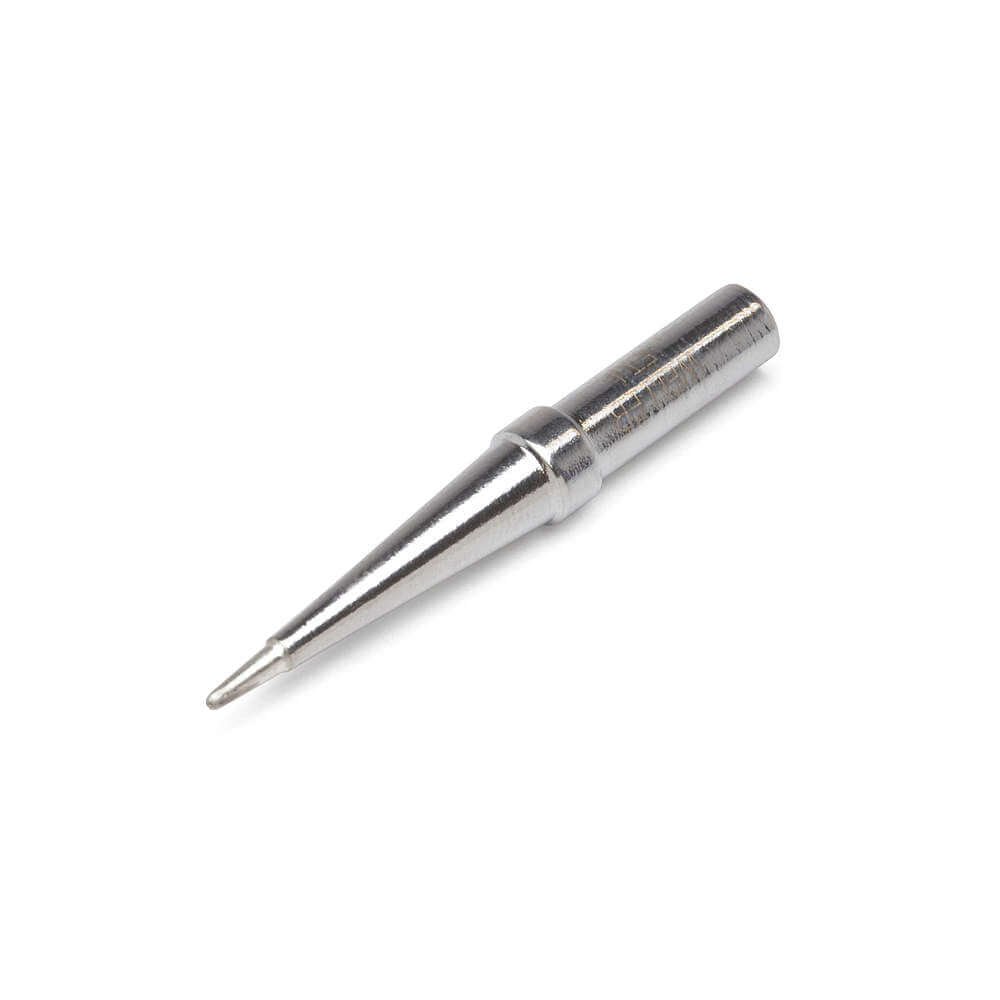

| Y1 | ETJ | Screwdriver | 0.8 mm | 25.4 mm | 0.3 mm | - | Screwdriver | 0.8 mm | - | 1 | €9.38 | |
| F1 | ETB | Screwdriver | 2.4 mm | 34.5 mm | 0.51 mm | - | Screwdriver | 0.63" | No | 1 | €10.73 | |
| Z1 | ETAB | Screwdriver | 1.6 mm | 15.9 mm | - | - | Screwdriver | 1.6 mm | - | 1 | €8.98 | |
| E1 | ST3 | Screwdriver | 3.17 mm | 19 mm | - | - | Screwdriver | - | - | 1 | €11.88 | |

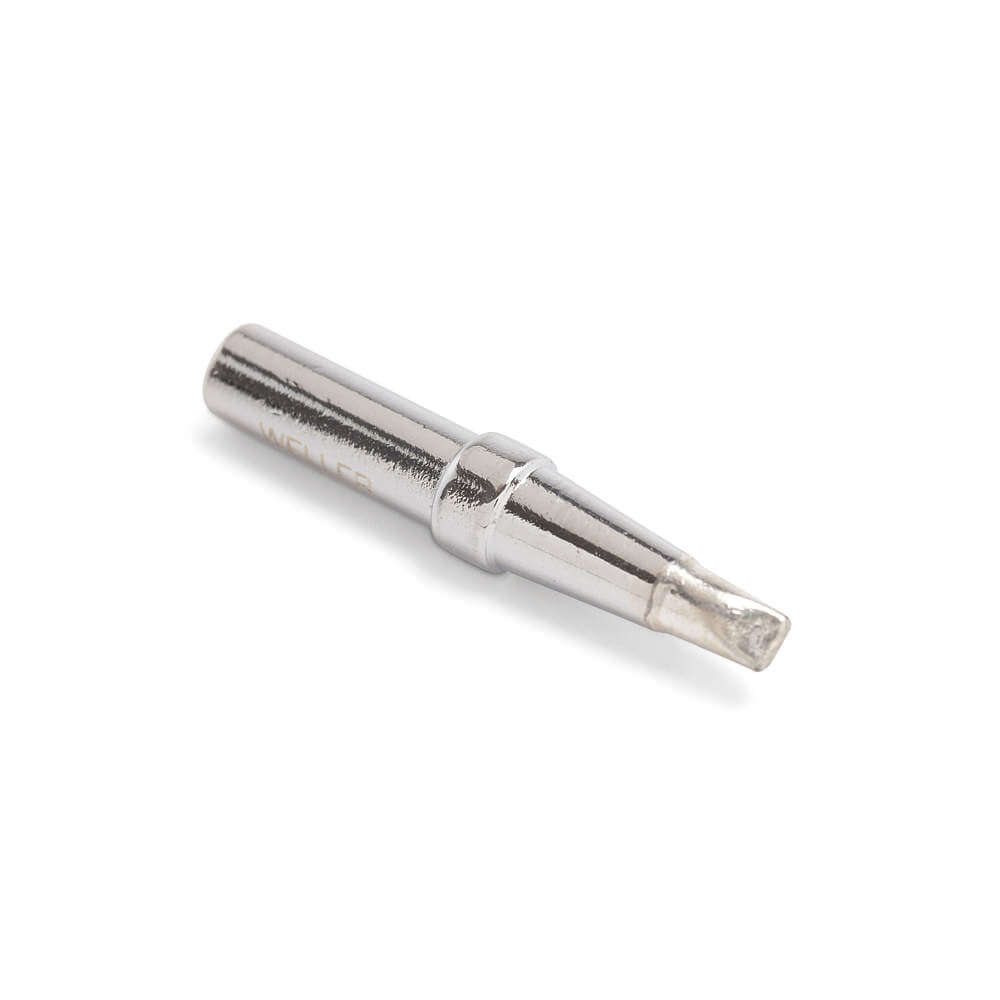

| A2 | ETC | Screwdriver | 3.2 mm | 34.5 mm | 0.8 mm | - | Screwdriver | 3.2 mm | - | 1 | €10.78 | |
| J1 | PTH7 | Screwdriver | 0.8 mm | 35 mm | 0.4 mm | - | Screwdriver | - | - | 1 | €10.65 | |
| E1 | ST4 | Screwdriver | 4.74 mm | 19 mm | - | - | Screwdriver | - | - | 1 | €11.08 | |
| E1 | ST6 | Screwdriver | 0.8 mm | 19 mm | - | - | Screwdriver | - | - | 1 | €9.15 |
