PARKER 155F-8 Union Elbow, 90 Degs, 1/2 Inch Outside Diameter, Brass
Item: AC2YJAModel: 155F-8Cross Ref: 2P169
7 In Stock
Ships within 2 days via
10.00% off
€141.28 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Union Elbow, 90 Degrees |
| Application | LP Gases, Natural Gases |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Elbow |
| Body Material | Brass |
| Body Shape | Forged |
| Compatible Tube Material | Aluminum, Brass, Copper, Steel |
| Configuration Sub-type | Union Elbow 90° |
| Configuration Type | Flare To Flare |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Flared |
| Fitting Side A Tube Outer Diameter | 1/2" |
| Fitting Side B Connection Type | Flared |
| Fitting Side B Tube Outer Diameter | 1/2" |
| Fitting Thread Size | 3/4"-16 |
| Fitting Type | Flare |
| Flare Angle | 45° |
| Flare Thread Size | 3/4"-16 |
| Material | Brass |
| Max. Pressure | 750 psi |
| Maximum Operating Pressure | 750 psi |
| Maximum Operating Temperature | 250°F |
| Minimum Operating Temperature | -65°F |
| O-ring Material | Fluorocarbon |
| Overall Length | 1 7/32" |
| Pressure Rating | 650 psi |
| Sae Reference | SAE 010201 |
| Series | 45° FLARE Series |
| Specific Fitting Shape | 90° Forged Elbow Adapter |
| System Of Measurement | Inch |
| Temp. Range | -65°F to +250°F |
| Thread 1 Type | Fine |
| Thread 2 Size | 3/4"-16 |
| Thread 2 Type | Fine |
| Tube Size | 1/2" |
Shipping Info:
| Ship weight (kg) | 0.65 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 3.1 |
| Ship width (cm) | 8.89 |
| HS code | 7412200035 |
| Country of Origin | US |
Product Variants
| Model | Tube Size | Fitting Side A Tube Outer Diameter | Fitting Side B Tube Outer Diameter | Fitting Thread Size | Flare Thread Size | Max. Pressure | Overall Length | Pressure Rating | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

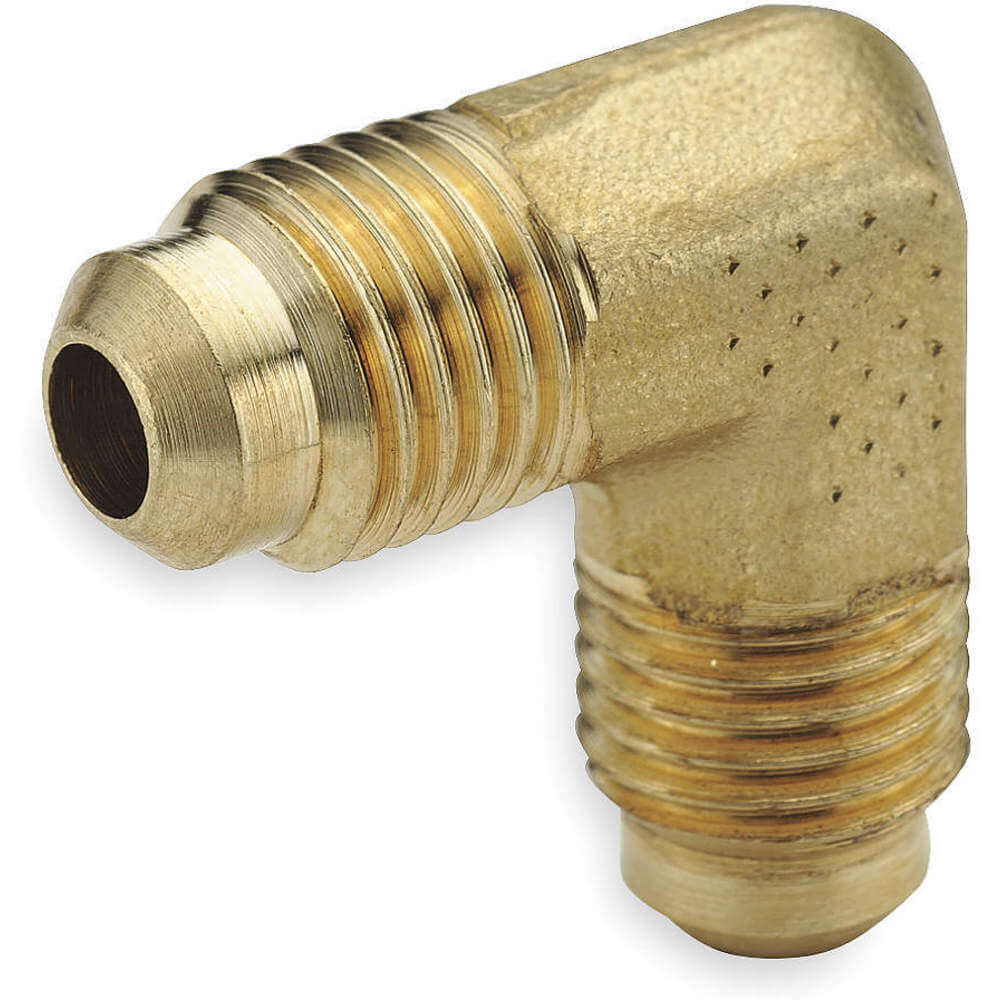

| 155F-5 | - | 5/16" | 5/16" | 1/2"-20 | 1/2"-20 | 2800 psi | 15/16" | 1000 psi | 10 | €125.87 | |
| 155F-4 | 1/4" | 1/4" | 1/4" | 7/16"-20 | 7/16"-20 | 1400 psi | 7/8" | 1200 psi | 10 | €101.83 | |
| 155F-6 | 3/8" | 3/8" | 3/8" | 5/8"-18 | 5/8"-18 | 1000 psi | 1 1/32" | 750 psi | 10 | €107.48 | |
| 155F-10 | 5/8" | 5/8" | 5/8" | 7/8"-14 | 7/8"-14 | 650 psi | 1 3/8" | 550 psi | 10 | €276.73 | |
| 155F-3 | 0.188" | 3/16" | 3/16" | 3/8"-24 | 3/8"-24 | 1900 psi | 1 3/4" | 1400 psi | 1 | €24.56 | |

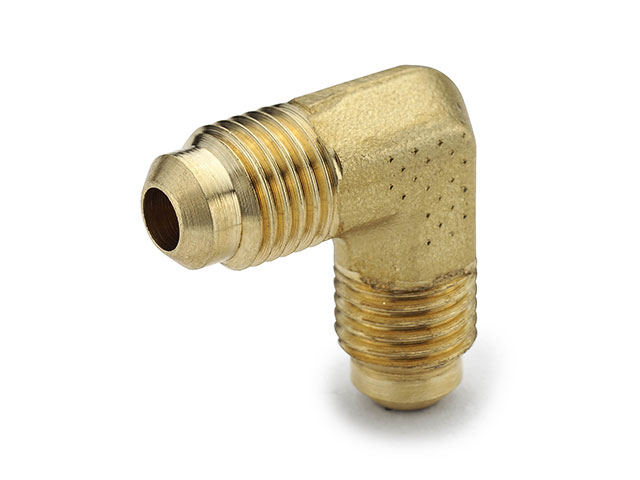

| 155F-2 | - | - | - | - | - | - | - | - | 1 | €33.06 |
