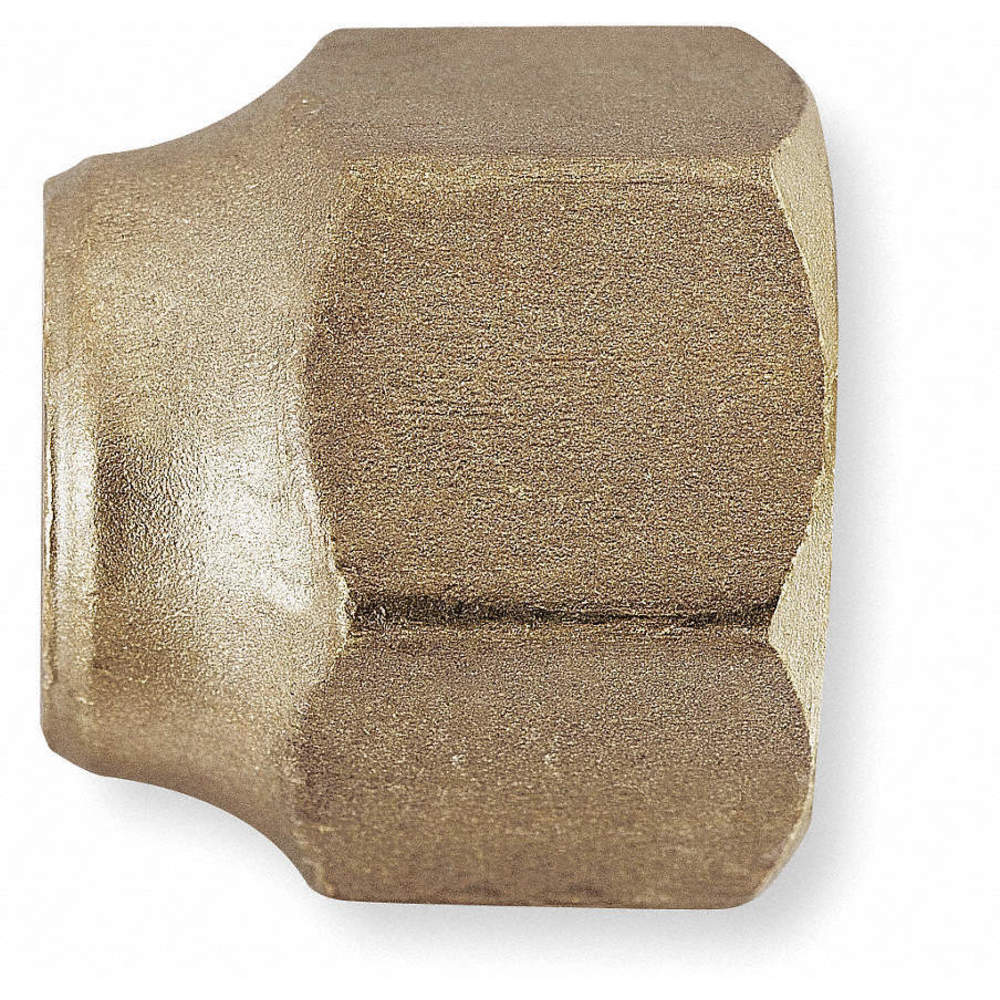

PARKER 14FSX-8 Short Forged Nut, 1/2 Inch Outside Diameter, Brass
Item: AC2YHMModel: 14FSX-8Cross Ref: 2P157
7 In Stock
Ships within 2 days via
10.00% off
€63.63 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Short Forged Nut |
| Application | Air, Flammable Liquid, Freon, Inert Gases, Non-Combustible Gases |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Nut |
| Body Material | Brass |
| Compatible Tube Size (od) | 1/2" |
| Configuration Sub-type | Nut |
| Configuration Type | Auxiliary |
| Connection Type | Flare |
| Fitting Connection Type | Flared |
| Fitting Material | Brass |
| Fitting Thread Size | 3/4"-16 |
| Fitting Type | Flare |
| Flare Angle | 45° |
| Flare Thread Size | 3/4"-16 |
| Hex Size | 15/16" |
| Material | Brass |
| Max. Pressure | 750 psi |
| Maximum Operating Pressure | 2800 psi |
| Maximum Operating Temperature | 250°F |
| Minimum Operating Temperature | 65°F |
| Overall Length | 7/8" |
| Pressure Rating | 650 psi |
| Sae Reference | SAE 010166 |
| Series | 45° FLARE Series |
| Specific Fitting Shape | Short Nut |
| Specific Pipe Fitting Shape | Short Nut |
| System Of Measurement | Inch |
| Temp. Range | -65°F to +250°F |
| Thread 1 Type | Fine |
| Tube Size | 1/2" |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 2.38 |
| Ship length (cm) | 2.22 |
| Ship width (cm) | 2.38 |
| HS code | 7412200035 |
| Country of Origin | US |
Product Variants
| Model | Tube Size | Compatible Tube Size (od) | Fitting Thread Size | Hex Size | Overall Length | Pressure Rating | Specific Fitting Shape | Compatible Tube Outer Dia. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 14FSX-10 | 5/8" | 5/8" | 7/8"-14 | 1 1/16" | 31/32" | 550 psi | Short Nut | - | 10 | €95.43 | |

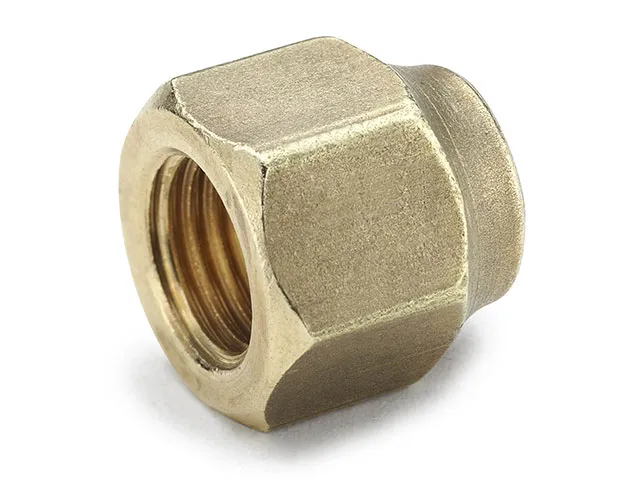

| 14FSX-12 | - | 3/4" | 1 1/16"-14 | 1 5/16" | 1 5/32" | 1000 psi | Nut | - | 1 | €21.02 | |
| 14FSX-5 | - | 5/16" | 1/2"-20 | 11/16" | 21/32" | 1000 psi | Nut | 0.312" | 1 | €10.79 | |
| 14FSX-6 | - | 3/8" | 5/8"-18 | 13/16" | 3/4" | 750 psi | Short Nut | 3/8" | 10 | €53.75 |
