MERSEN FERRAZ UL98 Fused Switches

Filter

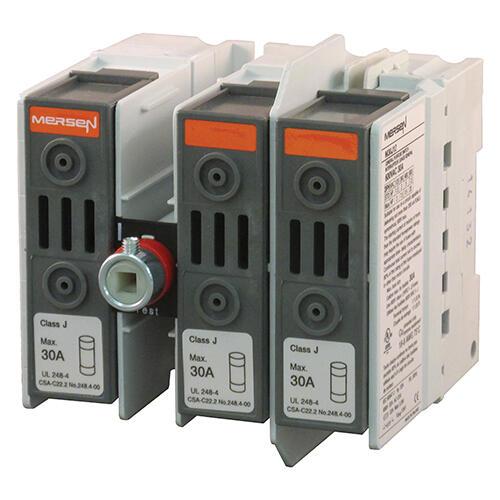

MERSEN FERRAZ M30J12

A

MERSEN FERRAZ M30J22

B

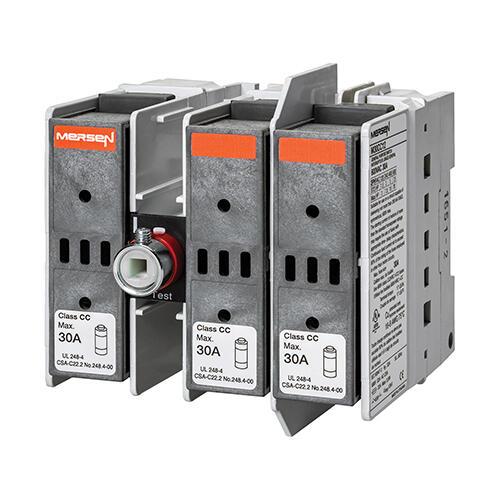

MERSEN FERRAZ M30CC12

C

MERSEN FERRAZ M800L12

D

Style	Model	Amps	Height	No. Of Poles	Connection/terminal Type	Max. Fuse Rating	Fuse Class	Wiring Range	Torque	Price
A	M30J12	30A	104.4 mm	3	Box	30A	Class J	#18 to 8	17 lbs.in.	€306.80
B	M30J22	30A	105.2 mm	4	Box	30A	Class J	#18 to 8	17 lbs.in.	€1,092.59
B	M30J30S	30A	104.4 mm	3	Box	30A	Class J	#18 to 8	17 lbs.in.	€1,016.07
B	M30CC22	30A	105.2 mm	4	Box	30A	Class CC	#18 to 8	17 lbs.in.	€1,221.15
B	M30CC30S	30A	104.4 mm	3	Box	30A	Class CC	#18 to 8	17 lbs.in.	€909.13
C	M30CC12	30A	104.4 mm	3	Box	30A	Class CC	#18 to 8	17 lbs.in.	€749.82
B	M60J30S	60A	118.1 mm	3	Box	60A	Class J	#14 to 4	30 lbs.-in.	€1,309.44
B	M60J40	60A	118.1 mm	4	Box	60A	Class J	#14 to 4	3.39 N-m	€1,572.51
B	M60J22N	60A	118.1 mm	4	Box	60A	Class J	#14 to 4	30 lbs.-in.	€1,572.51
B	M60J40N	60A	118.1 mm	4	Box	60A	Class J	#14 to 4	30 lbs.-in.	€1,572.51
B	M60J03	60A	118.1 mm	3	Box	60A	Class J	#14 to 4	30 lbs.-in.	€1,048.33
B	M60J30	60A	118.1 mm	3	Box	60A	Class J	#14 to 4	30 lbs.-in.	€1,048.33
B	M60J22	60A	118.1 mm	4	Box	60A	Class J	#14 to 4	30 lbs.-in.	€1,572.51
B	M60J12	60A	118.1 mm	3	Box	60A	Class J	#14 to 4	30 lbs.-in.	€1,048.33
B	M100J30S	100A	104.4 mm	3	Blade	100A	Class J	#14 AWG to 2/0 AWG	-	€2,043.84
B	M100J40N	100A	104.4 mm	4	Blade	100A	Class J	#14 AWG to 2/0 AWG	-	€2,387.00
B	M100J30	100A	104.4 mm	3	Blade	100A	Class J	#14 AWG to 2/0 AWG	-	€1,591.34
B	M100J22N	100A	104.4 mm	4	Blade	100A	Class J	#14 AWG to 2/0 AWG	-	€2,387.00
B	M100J22	100A	104.4 mm	4	Blade	100A	Class J	#14 AWG to 2/0 AWG	-	€2,387.00
B	M100J12	100A	104.4 mm	3	Blade	100A	Class J	#14 AWG to 2/0 AWG	-	€1,591.34
B	M100J40	100A	104.4 mm	4	Blade	100A	Class J	#14 AWG to 2/0 AWG	-	€2,387.00
B	M100J03	100A	104.4 mm	3	Blade	100A	Class J	#14 AWG to 2/0 AWG	-	€1,432.20
B	M200J12	200A	74.9 mm	3	Blade	200A	Class J	-	-	€3,238.95
B	M200J30	200A	74.9 mm	3	Blade	200A	Class J	-	-	€3,238.95
B	M200J40	200A	74.9 mm	4	Blade	200A	Class J	-	-	€4,858.43
B	M400J12	400A	176 mm	3	Blade	400A	Class J	-	-	€4,551.86
B	M400J40	400A	176 mm	3	Blade	400A	Class J	-	-	€8,107.98
B	M400J30	400A	176 mm	3	Blade	400A	Class J	-	-	€4,551.86
B	M600J30	600A	232.9 mm	3	Blade	600A	Class J	-	-	€9,547.99
B	M600J40	600A	232.9 mm	4	Blade	600A	Class J	-	-	€14,734.53
B	M800L30	800A	232.9 mm	3	Blade	800A	Class L	-	-	€12,146.06
B	M800L40	800A	232.9 mm	4	Blade	800A	Class L	-	-	€19,846.50
D	M800L12	800A	232.9 mm	3	Blade	800A	Class L	-	-	€13,575.01
B	M1200L30	1200A	293.9 mm	3	Blade	1200A	Class L	-	-	€24,517.30
B	M1200L12	1200A	293.9 mm	3	Blade	1200A	Class L	-	-	€23,349.79
B	M1200L40	1200A	293.9 mm	4	Blade	1200A	Class L	-	-	€35,843.99
