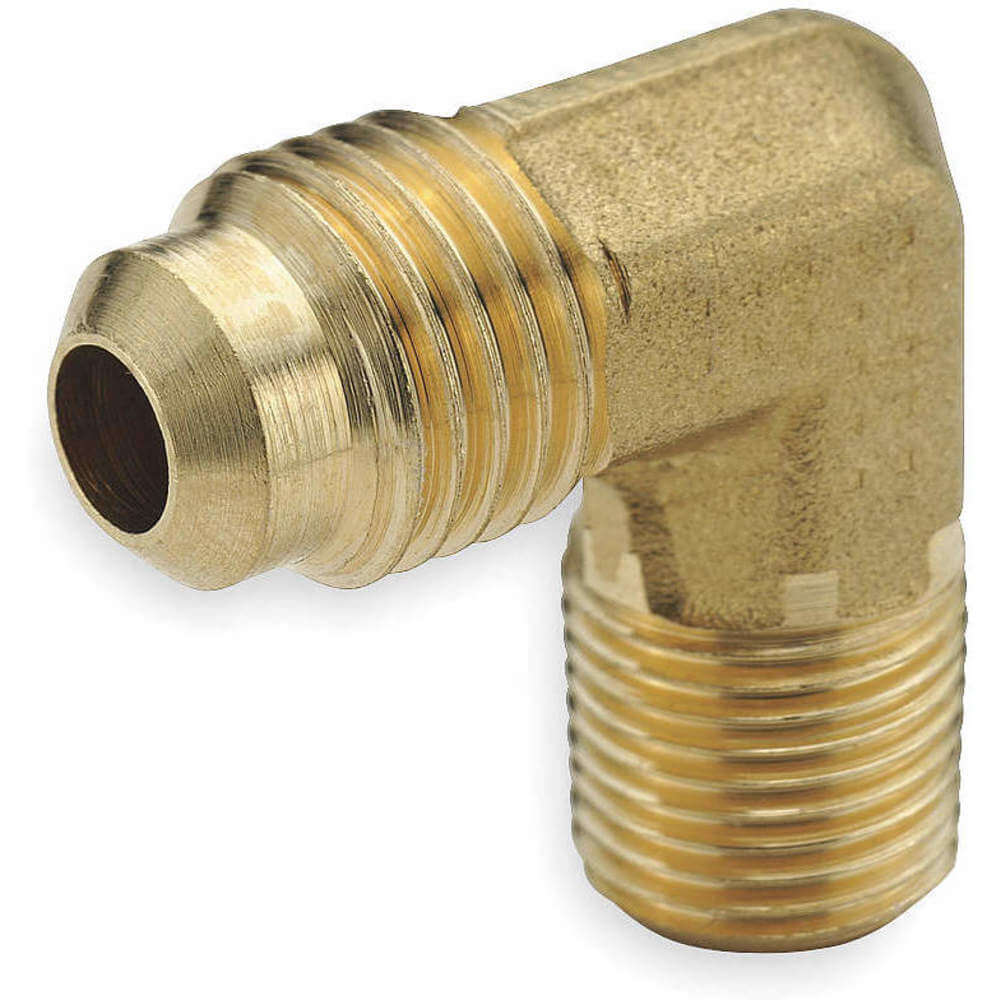

PARKER 149F-8-6 Forged Male Elbow, 90 Degs, 1/2 Inch Outside Diameter, Brass
Item: AB3UDAModel: 149F-8-6Cross Ref: 1VEB1
7 In Stock
Ships within 2 days via
10.00% off
€114.14 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Forged Male Elbow, 90 Degrees |
| Application | LP Gases, Natural Gases |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Elbow |
| Body Material | Brass |
| Body Shape | Extruded |
| Compatible Tube Material | Aluminum, Brass, Copper, Steel |
| Configuration Sub-type | Male Elbow 90° |
| Configuration Type | Flare To Male |
| Connection Type | Flare x MNPT |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Flared |
| Fitting Side A Tube Outer Diameter | 1/2" |
| Fitting Side B Connection Type | MNPT |
| Fitting Side B Pipe Size | 3/8" |
| Fitting Thread Size | 3/4"-16 |
| Fitting Type | Flare |
| Flare Angle | 45° |
| Flare Thread Size | 3/4"-16 |
| Material | Brass |
| Max. Pressure | 450 psi to 2800 psi |
| Maximum Operating Pressure | 750 psi |
| Maximum Operating Temperature | 250°F |
| Minimum Operating Temperature | -65°F |
| O-ring Material | Fluorocarbon |
| Overall Length | 1 7/32" |
| Pipe Size | 3/8" |
| Sae Reference | SAE 010202 |
| Series | 45° FLARE Series |
| Specific Fitting Shape | 90° Forged Elbow Adapter |
| System Of Measurement | Inch |
| Temp. Range | -65°F to +250°F |
| Thread 1 Type | Fine |
| Thread 2 Size | 3/8" |
| Thread 2 Type | NPT |
| Tube Size | 1/2" |
Shipping Info:
| Ship weight (kg) | 0.6 |
| Ship height (cm) | 5.59 |
| Ship length (cm) | 3.1 |
| Ship width (cm) | 6.86 |
| HS code | 7412200035 |
| Country of Origin | US |
Product Variants
| Product | Model | Pipe Size | Tube Size | Fitting Side A Tube Outer Diameter | Fitting Side B Pipe Size | Fitting Thread Size | Flare Thread Size | Max. Pressure | Overall Length | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

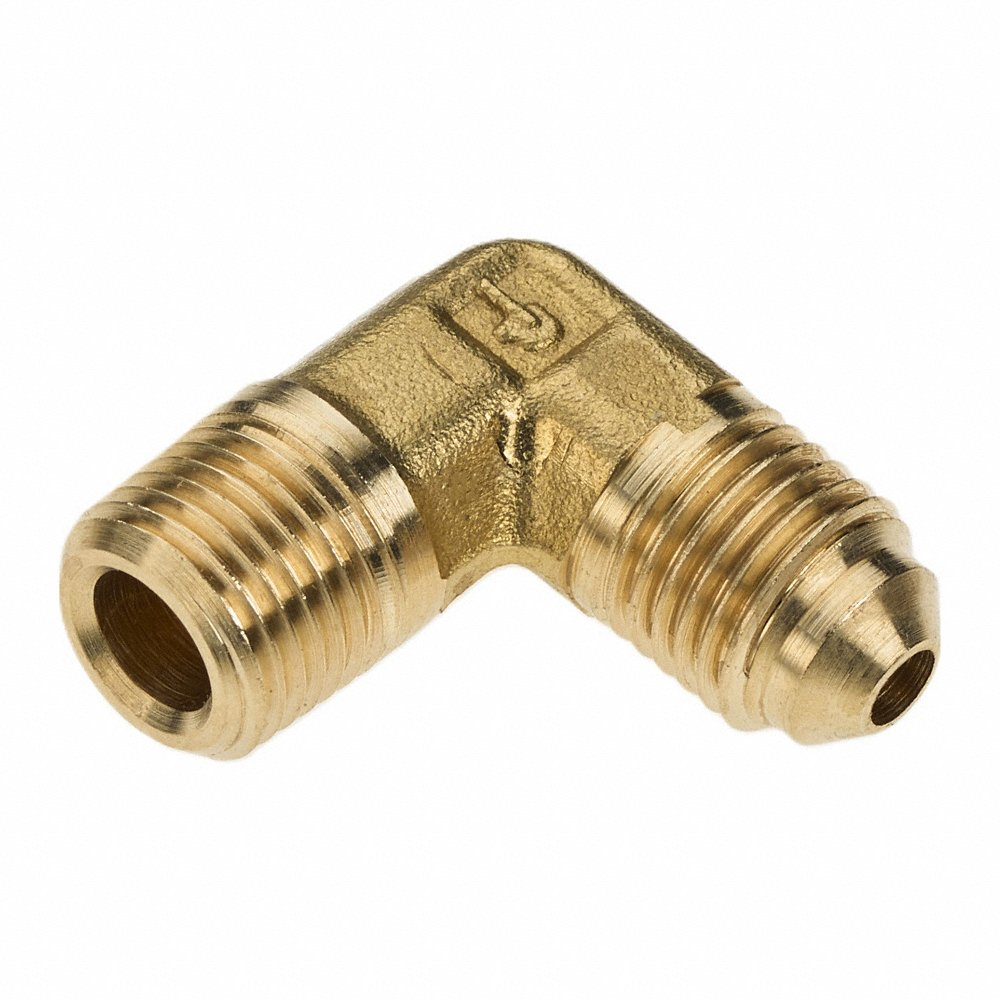

149F-3-2 | 1/8" | 0.188" | 3/16" | 1/8" | 3/8"-24 | 3/8"-24 | 450 psi to 2800 psi | 3/4" | 1 | €7.45 | |
 |

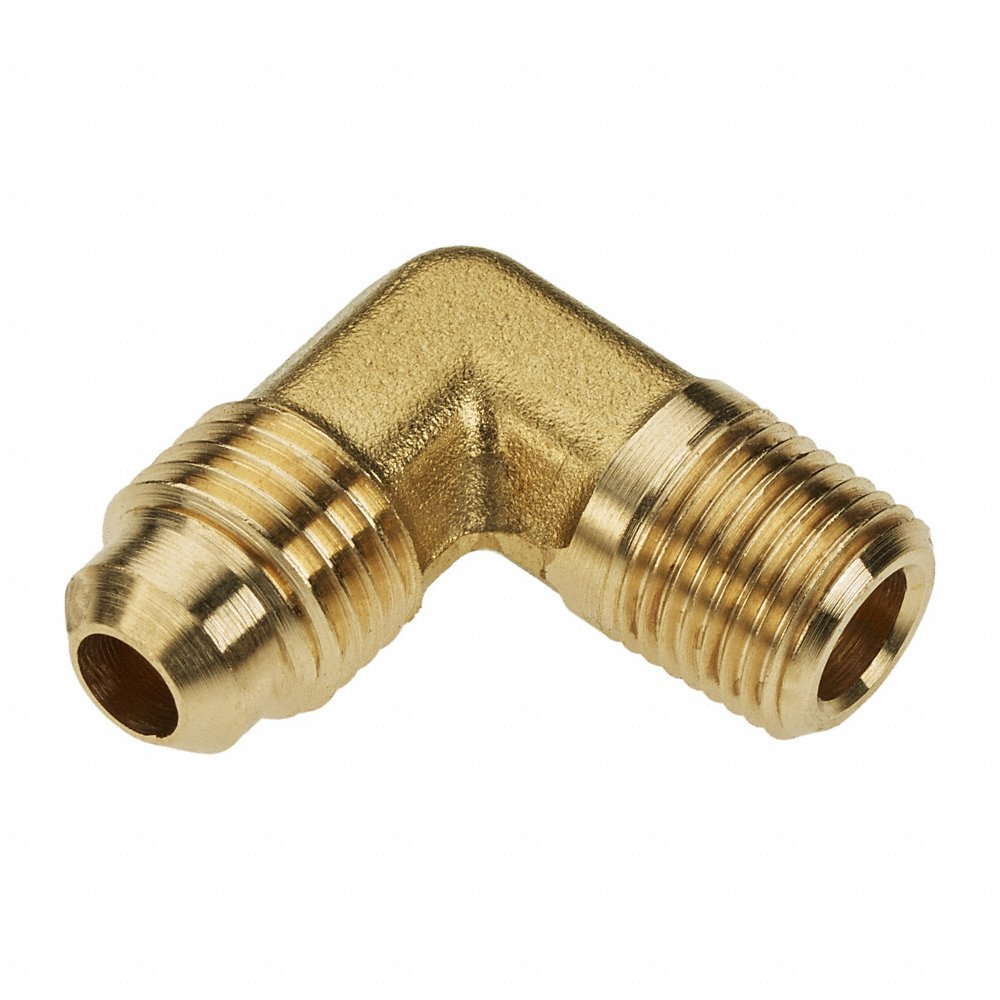

149F-4-2 | 1/8" | 1/4" | 1/4" | 1/8" | 7/16"-20 | 7/16"-20 | 450 psi to 2800 psi | 25/32" | 1 | €6.04 | |
|
149F-4-6 | 3/8" | 1/4" | 1/4" | 3/8" | 7/16"-20 | 7/16"-20 | 450 psi to 2800 psi | 15/16" | 10 | €196.70 | |
|
149F-5-2 | 1/8" | 0.312" | 5/16" | 1/8" | 1/2"-20 | 1/2"-20 | 450 psi to 2800 psi | 29/32" | 10 | €120.22 | |
|
149F-5-4 | 1/4" | 0.312" | 5/16" | 1/4" | 1/2"-20 | 1/2"-20 | 450 psi to 2800 psi | 15/16" | 10 | €137.65 | |
|
149F-6-2 | 1/8" | 3/8" | 3/8" | 1/8" | 5/8"-18 | 5/8"-18 | 450 psi to 2800 psi | 1" | 10 | €110.78 | |
|
149F-6-4 | 1/4" | 3/8" | 3/8" | 1/4" | 5/8"-18 | 5/8"-18 | 1000 psi | 1" | 10 | €93.94 |
