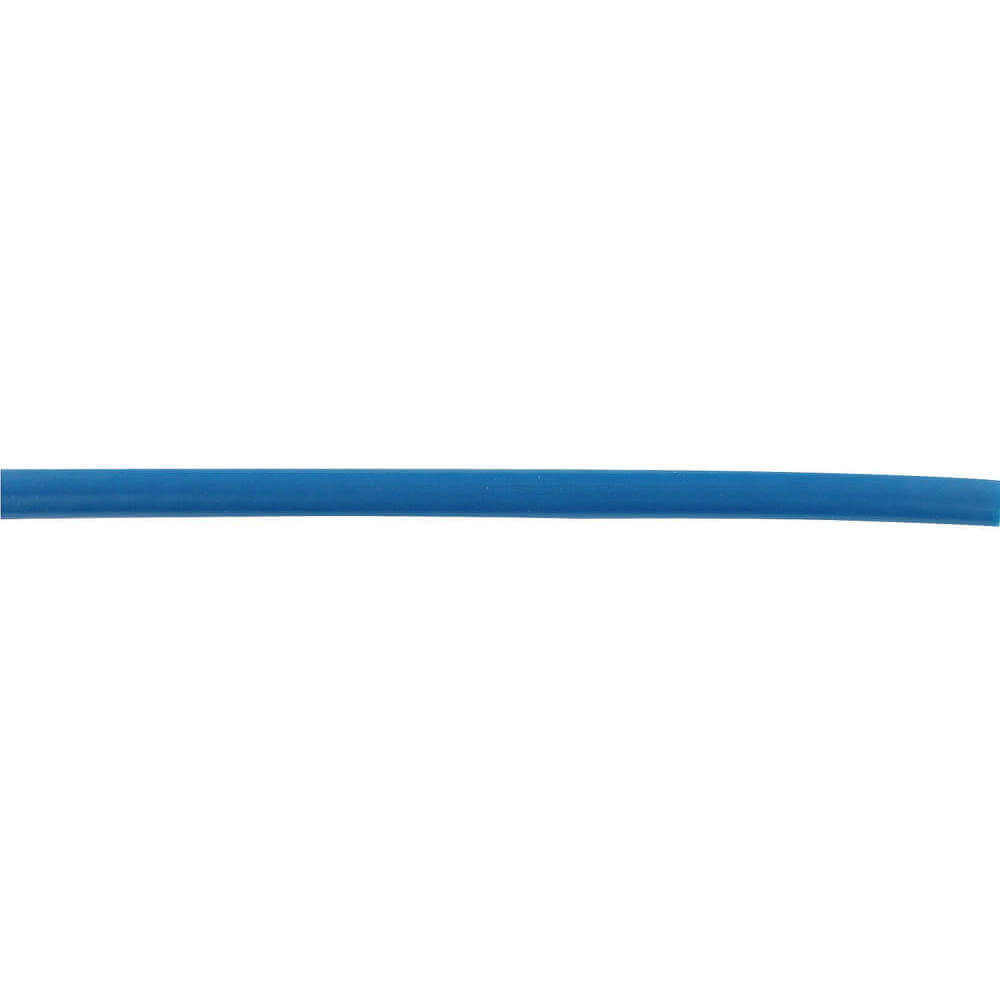

PARKER 1120-8B-BLU-100 Air Brake Tubing 1/2 Inch Outer Diameter Blue
Item: AF2VGPModel: 1120-8B-BLU-100Cross Ref: 6YAF4
7 In Stock
Ships within 2 days via
5.00% off
€427.64 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Brake Tubing |
| Air Brake Type | Type B |
| Application | Airbrake |
| Bend Radius | 2" |
| Coiled Air Tube Application | Not Applicable |
| Color | Blue |
| Distinct Properties | Heat And Light Stabilized |
| Fitting Side A Connection Type | Not Applicable |
| Fitting Side A Gender | Not Applicable |
| Fitting Side A Material | Not Applicable |
| Fitting Side A Size | Not Applicable |
| Fitting Side B Connection Type | Not Applicable |
| Fitting Side B Gender | Not Applicable |
| Fitting Side B Material | Not Applicable |
| Fitting Side B Size | Not Applicable |
| Hex Size | Not Applicable |
| Included Fittings | No |
| Inside Dia. | 0.376" |
| Jacket Color | No Jacket |
| Jacket Material | No Jacket |
| Length | 100 ft. |
| Material | Nylon |
| Max. Operating Temp. | 200°F |
| Max. Pressure | 100 psi to 249 psi , 150 psi |
| Max. Working Pressure | 150 psi |
| Min. Operating Temp. | -40°F |
| Outside Dia. | 1/2" |
| Overall Length | 100 ft. |
| Product Type | Air Brake Tubing |
| Reinforcement | Polyester Braid |
| Resistance Properties | Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Crack Resistant, Flame Resistant, Freeze Resistant, Fuel Resistant, Grease Resistant, Hardening Resistant, Heat Resistant, High Temperature Resistant, Humidity Resistant, Kink Resistant, Low Temperature Resistant, Non Conductive, Non Flammable, Oil Resistant, Road Salt Resistant, Salt Water Resistant, Tear Resistant, Temperature Resistant,UVResistant, Wear Resistant, Weather Resistant |
| Series | 1120 Series |
| Specific Fitting Side A Shape | Not Applicable |
| Specific Fitting Side B Shape | Not Applicable |
| System Of Measurement | Imperial |
| Temp. | -40°F to +200°F |
| Tube Material | Nylon |
| Tube Size | 1/2" |
| Type | Type B Reinforced |
| Wall Thickness | 0.062" |
| Weight Per Foot | 0.039 lbs.-ft. |
Shipping Info:
| Ship weight (kg) | 2.24 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 52.07 |
| Ship width (cm) | 52.07 |
| HS code | 3917390050 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Color | Material | Max. Working Pressure | Price | |
|---|---|---|---|---|---|---|---|
 |
1120-10B-BLK-100 | 5/8" | Black | Nylon | 150 psi | €760.92 | |
 |
1120-10B-GRN-100 | 5/8" | Green | Nylon | 150 psi | €767.84 | |
 |
1120-10B-RED-100 | 5/8" | Red | Nylon | 150 psi | €767.84 | |
|
1120-12B-BLK-100 | 3/4" | Black | Nylon | 150 psi | €918.43 | |
|
1120-12B-GRN-100 | 3/4" | Green | Nylon | 150 psi | €977.90 | |
|
1120-2.5-BLK-100 | 0.156" | Black | Nylon | 150 psi | €269.94 | |
|
1120-2.5-BLK-250 | 0.156" | Black | Nylon | 150 psi | €456.89 |
