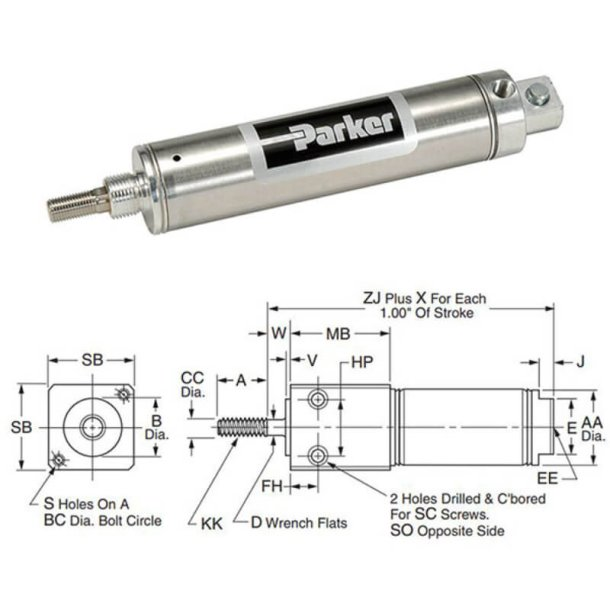

PARKER 1.50BFNSRB03.00 Pneumatic Cylinder
3"
Get it by Tuesday, Jul 14
€140.61 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Assembly Conveyors Packaging |
| Bore Size | 1 1/2" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 1/8" NPT Threaded Pneumatic Port 7/16"-20 UNF Male Threaded Rod End , 1/8" NPT Threaded Pneumatic Port 7/16"-20 UNF Male Threaded Rod-End |
| Design | "Lipseal" Piston Aluminium Head And Cap Piston Bumpers Both Ends Non-Repairable |
| Dia. | 7/16" |
| Function | Single-Acting (Spring-Return) Stainless Steel Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Stainless Steel Cylinder Body Aluminium Piston Oil-Impregnated Bronze Rod Bushing Stainless Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Front Block Mounting |
| Mounting Mode | Front Block Mounting |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Cylindrical |
| Stroke Length | 3" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Stroke | Mounting Type | Cylinder Type | Magnetic Piston | Single Acting/double Acting | Overall Length | Rod Dia. | Rod Thread Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1.50BFDSR01.00 | 1" | Front Block | Round Body | Non-Magnetic Piston | Double Acting | 6 11/25" | 0.437" | 1 1/4" | €160.65 | |
| 1.50BFDSR02.00 | 2" | Front Block | Round Body | Non-Magnetic Piston | Double Acting | 7 11/25" | 0.437" | 1 1/4" | €163.85 | |
| 1.50BFDSR03.00 | 3" | Front Block | Round Body | Non-Magnetic Piston | Double Acting | 8 11/25" | 0.437" | 1 1/4" | €176.02 | |
| 1.50BFDSR04.00 | 4" | Front Block | - | No | Double Acting | 9 11/25" | 0.437" | 1 1/4" | €169.91 | |
| 1.50BFDSR05.00 | 5" | Front Block | Round Body | Non-Magnetic Piston | Double Acting | 10 11/25" | 0.437" | 1 1/4" | €184.70 | |
| 1.50BFDSR06.00 | 6" | Front Block | Round Body | - | Double Acting | 11 11/25" | 0.437" | 1 1/4" | €199.12 | |
| 1.50BRDSR01.00 | 1" | Rear Block | Round Body | Non-Magnetic Piston | Double Acting | 6.63" | 0.437" | 1 1/4" | €134.58 |
