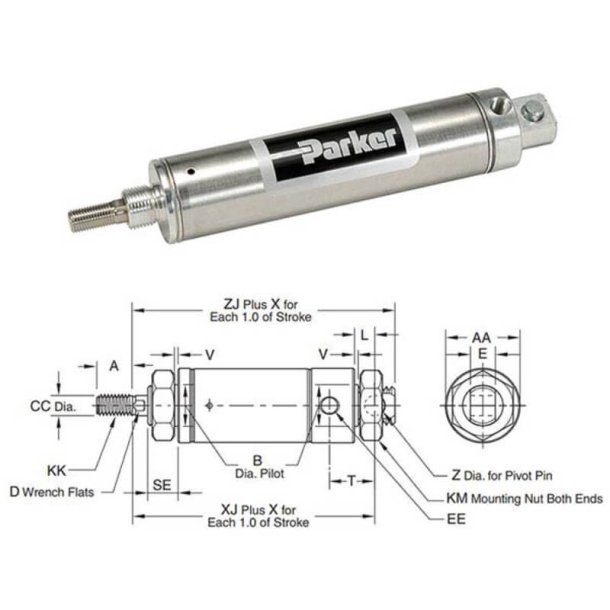

PARKER 0.56PSR03.25 Pneumatic Cylinder
Get it by Tuesday, Jul 14
€55.35 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Assembly Conveyors Packaging |
| Bore Size | 9/16" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 10-32 UNF Threaded Pneumatic Port 10-32 UNF Male Threaded Rod-End |
| Design | "Lipseal" Piston Aluminium Head And Cap Non-Repairable |
| Dia. | 3/16" |
| Function | Single-Acting (Spring-Return) Stainless Steel Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Stainless Steel Cylinder Body Aluminium Piston Oil-Impregnated Bronze Rod Bushing Stainless Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Pivot Mounting |
| Mounting Mode | Pivot Mounting |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Cylindrical |
| Stroke Length | 3 1/4" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Bore Dia. | Magnetic Piston | Stroke | Mounting Type | Single Acting/double Acting | Rod Dia. | Type | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.56DSR0.500 | 9/16" | Non-Magnetic Piston | 1/2" | Nose | Double Acting | 0.188" | Round Non Repairable | 3.3" | €46.54 | |
| 0.56DSR01.00 | 9/16" | Non-Magnetic Piston | 1" | Nose | Double Acting | 0.188" | Round Body | 3 4/5" | €49.57 | |
| 0.56DSR01.50 | 9/16" | Non-Magnetic Piston | 1 1/2" | Nose | Double Acting | 0.188" | Round Body | 4.3" | €51.98 | |
| 0.56DSR02.00 | 9/16" | Non-Magnetic Piston | 2" | Nose | Double Acting | 0.188" | Round Body | 4 4/5" | €53.32 | |
| 0.56DSR03.00 | 9/16" | Non-Magnetic Piston | 3" | Nose | Double Acting | 0.188" | Round Body | 5 4/5" | €58.87 | |
| 0.56DSR04.00 | 9/16" | Non-Magnetic Piston | 4" | Nose | Double Acting | 0.188" | Round Body | 6 4/5" | €63.47 | |
| 0.56DSR05.00 | 9/16" | Non-Magnetic Piston | 5" | Nose | Double Acting | 0.188" | Round Body | 7 4/5" | €66.91 |
