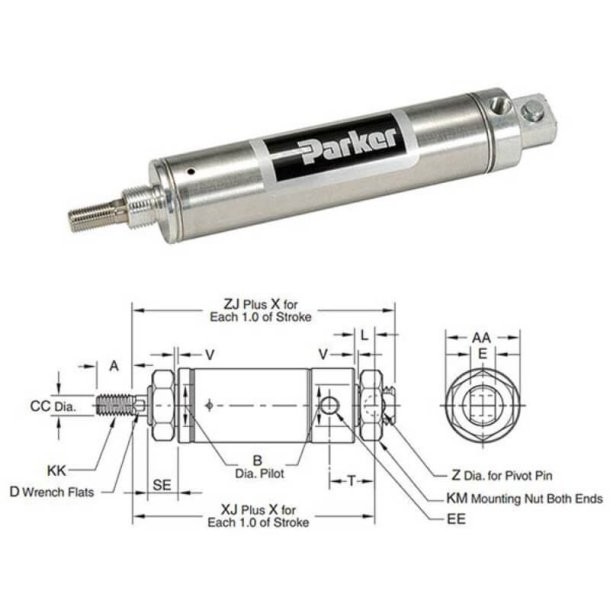

PARKER 0.56PSR00.38 Pneumatic Cylinder
Get it by Tuesday, Aug 18
€40.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Assembly Conveyors Packaging |
| Bore Size | 9/16" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 10-32 UNF Threaded Pneumatic Port 10-32 UNF Male Threaded Rod-End |
| Design | "Lipseal" Piston Aluminium Head And Cap Non-Repairable |
| Dia. | 3/16" |
| Function | Single-Acting (Spring-Return) Stainless Steel Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Stainless Steel Cylinder Body Aluminium Piston Oil-Impregnated Bronze Rod Bushing Stainless Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Pivot Mounting |
| Mounting Mode | Pivot Mounting |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Cylindrical |
| Stroke Length | 0.38" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Stroke Length | Mounting | Type | Rod Dia. | Mounting Type | Bore Dia. | Stroke | Single Acting/double Acting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.56DSR0.500 | 1/2" | - | Round Non Repairable | 0.188" | Nose | 9/16" | 1/2" | Double Acting | €46.54 | |
| 0.56DSR01.00 | 1" | - | Round Body | 0.188" | Nose | 9/16" | 1" | Double Acting | €49.57 | |
| 0.56DSR01.50 | 1 1/2" | - | Round Body | 0.188" | Nose | 9/16" | 1 1/2" | Double Acting | €51.98 | |
| 0.56DSR02.00 | 2" | - | Round Body | 0.188" | Nose | 9/16" | 2" | Double Acting | €53.32 | |
| 0.56DSR03.00 | 3" | - | Round Body | 0.188" | Nose | 9/16" | 3" | Double Acting | €58.87 | |
| 0.56DSR04.00 | 4" | - | Round Body | 0.188" | Nose | 9/16" | 4" | Double Acting | €63.47 | |
| 0.56DSR05.00 | 5" | - | Round Body | 0.188" | Nose | 9/16" | 5" | Double Acting | €66.91 |
