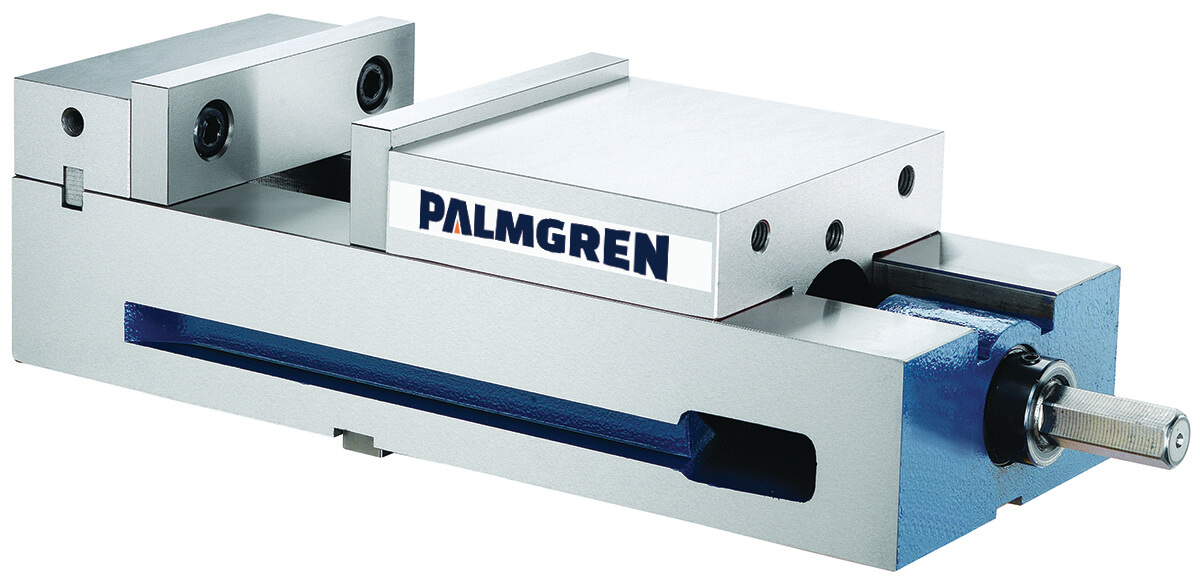

PALMGREN 9626600 CNC Machine Vise, 4 x 5 Inch Size
Get it by Tuesday, Dec 23
10.00% off
€1,237.88 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Machine Vise |
| Base | Slotted |
| Base Material | Steel |
| Base Type | Fixed |
| Bed/base | Ground |
| Clamping Force | 7960 lbs. |
| Compatible Machinery | CNC Milling Machine |
| Features | 80, 000 psi Ductile Iron Castings, Both Sides Are Precision Ground Square To The Bottom Of The Vise Within 0.004 In, Hardened Jaw Plates And Hardened Vise Bed, Palmgren'S Anti-Lift Mechanism |
| Jaw Deflection | 0.003" |
| Jaw Deflection - Maximum | 0.003" |
| Jaw Face Type | Smooth |
| Jaw Face Width | 4" |
| Jaw Material | Steel |
| Jaw Opening | 5" |
| Jaw Plate | Smooth |
| Jaw Width | 4" |
| Lead Screw Type | ACME |
| Machine Vise Type | Precision |
| Max Bed/base Parallel Tolerance | 0.0008" |
| Max Jaw Opening | 5" |
| Maximum Clamping Force | 7960 lbf. |
| Mounting Slot Length | 1" |
| Mounting Slot/keyway Width | 5/8" |
| Mounting Type | Keyway |
| Overall Height | 7" |
| Overall Length | 16" |
| Overall Width | 7.9" |
| Throat Depth | 1 37/64" |
| Type | Dual Force |
| Vise Jaw Material | Steel |
Shipping Info:
| Ship weight (kg) | 20.84 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 20.07 |
| Country of Origin | TW |
Product Details:
- Max. Travel : 4-59/64
Product Variants
| Product | Model | Jaw Width | Jaw Opening | Throat Depth | Overall Length | Overall Height | Type | Clamping Force | Base | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

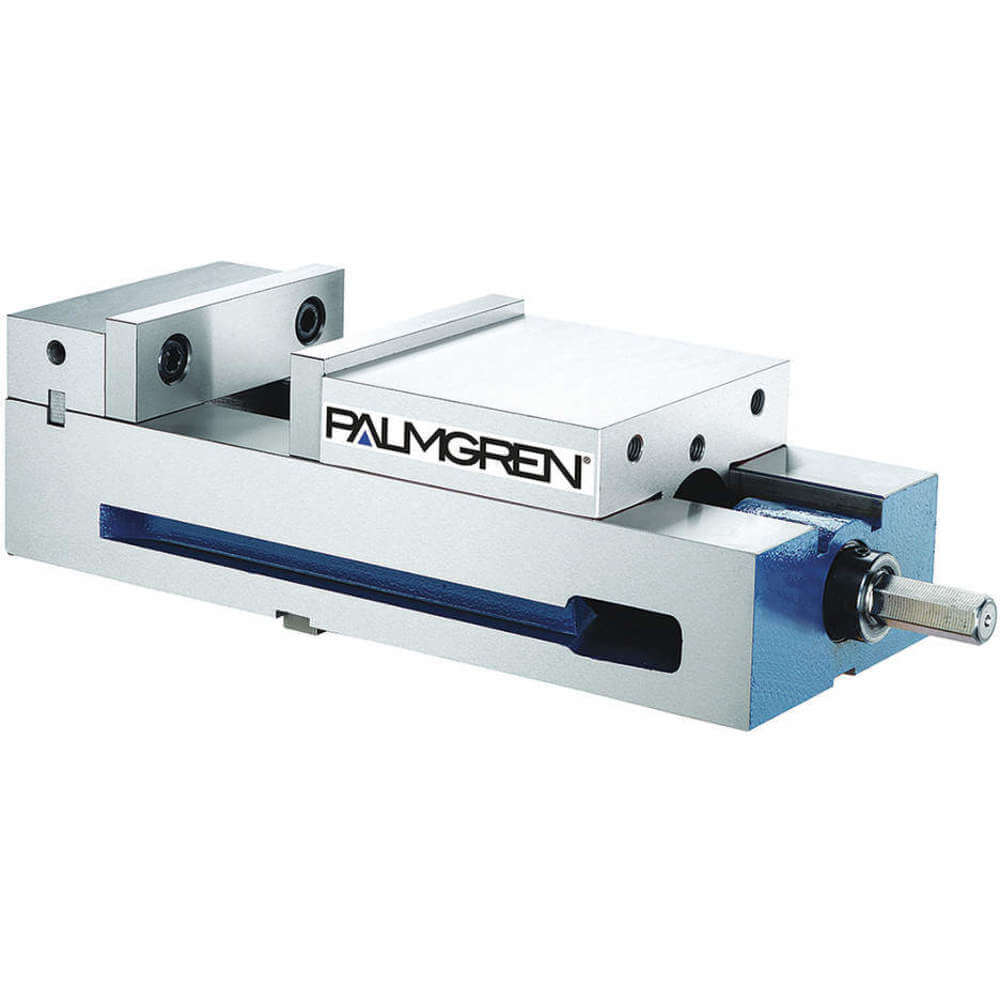

9626610 | 6" | 5 53/64" | 1 3/4" | 20" | 8" | Dual Force | 7960 lbs. | Slotted | €1,720.12 |
