OSG VGM6-0113 Carbide End Mill, 6 Flutes, 5/8 Inch Milling Dia, 1 7/8 Inch Length Of Cut
Item: CT4VGMModel: VGM6-0113Cross Ref: 61LM05
7 In Stock
1.875"
0.625"
Ships within 2 days via
10.00% off
€289.28 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Carbide End Mill |
| Coolant Fed | Non Coolant Through |
| Corner Radius | 0.02" |
| Cutting Length | 1 7/8" |
| Cutting Type | Center Cutting |
| Drilling Tool Configuration | Individual |
| End Mill Application | Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Corner Radius |
| End Type | Single End |
| Finish | Titanium Aluminum Nitride Coat |
| Finish - Machining | TiAlN |
| For Material Hardness | 0 HRC to 45 HRC |
| Grade | High Performance |
| Helix Angle | 37° |
| List Number | VGM6 |
| Material | Carbide |
| Material - Machining | Carbide |
| Material Application | Cast Iron, Hardened Steel, Stainless Steel, Steel, Super Alloys |
| Material Grade - Machining | High Performance |
| Milling Dia. | 5/8" |
| Number Of Coolant Holes | 0 |
| Number Of Flutes | 6 |
| Overall Length | 5" |
| Primary Material Application | Cast Iron, Hardened Steel, Inconel, Stainless Steel, Steel, Titanium, Tool And Die Steel |
| Primary Material Application Iso Code | H, K, M, P, S |
| Secondary Material Application | Hardened Steels 35-45 HRC |
| Secondary Material Application Iso Code | H |
| Shank Dia. | 5/8" |
| Shank Type | Shrink Fit |
| Shank Type - Machining | Shrink Fit |
| Single End/double End | Single End |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.33 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Milling Dia. | Shank Dia. | Grade | Corner Radius | Overall Length | Number Of Flutes | Helix Angle | List Number | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

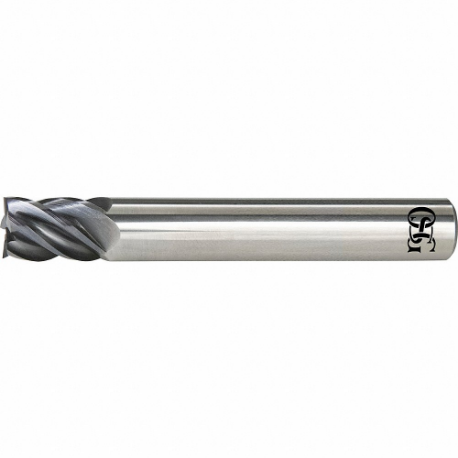

| VGM5-1193 | 1" | 1" | High Performance | 0.06" | 6" | 5 | 40° | VGM5-LN | €666.92 | |
| VGM5-1199 | 1" | 1" | High Performance | 0.03" | 6" | 5 | 40° | VGM5-LN | €717.52 | |
| VGM5-1206 | 1" | 1" | High Performance | 0.03" | 7" | 5 | 40° | VGM5-LN | €760.45 | |
| VGM5-1208 | 1" | 1" | High Performance | 0.09" | 7" | 5 | 40° | VGM5-LN | €760.45 | |
| VGM5-1204 | 1" | 1" | High Performance | 1/4" | 6" | 5 | 40° | VGM5-LN | €717.52 | |
| VGM5-1202 | 1" | 1" | High Performance | 3/25" | 6" | 5 | 40° | VGM5-LN | €717.52 | |
| VGM5-1211 | 1" | 1" | High Performance | 1/4" | 7" | 5 | 40° | - | €760.45 |
