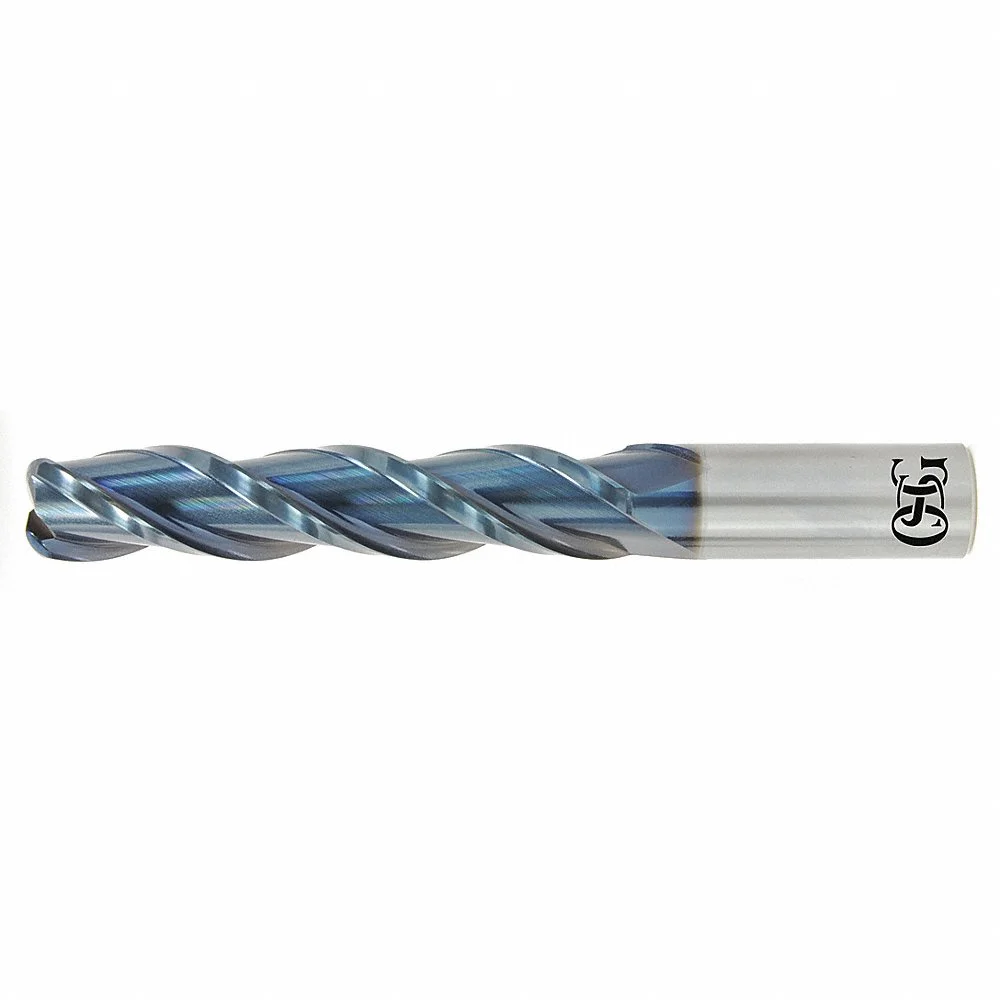

OSG 28735700 Corner Radius End Mill, 3 Flutes, 1 Inch Milling Dia., 1 1/2 Inch Length Of Cut
Item: CT4WKJModel: 28735700Cross Ref: 55FG07
7 In Stock
1.5
1"
Ships within 2 days via
10.00% off
€768.09 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Corner Radius End Mill |
| Coolant Fed | Non Coolant Through |
| Corner Radius | 0.09" |
| Cutting Direction | Right Hand |
| Cutting Direction - Machining | Right Hand |
| Cutting Length | 1 1/2" |
| Cutting Type | Center Cutting |
| Dimension Type | Fractional Inch |
| Drilling Tool Configuration | Individual |
| End Mill Application | Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Corner Radius |
| End Type | Single End |
| Finish | Diamond Like Carbon Coat |
| Finish - Machining | DLC |
| Flute Type | Helical |
| For Material Hardness | 0 HRC to 35 HRC |
| Grade | Micro Grain |
| Helix Angle | 30° |
| List Number | 2873 |
| Material | Carbide |
| Material - Machining | Carbide |
| Material Application | Aluminum |
| Material Grade - Machining | Grade C2 Micro Grain |
| Milling Dia. | 1" |
| Neck Dia. | 29/32" |
| Neck Length | 2 3/16" |
| Number Of Coolant Holes | 0 |
| Number Of Flutes | 3 |
| Overall Length | 4" |
| Primary Material Application | Aluminum |
| Primary Material Application Iso Code | N |
| Shank Dia. | 1" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Single End/double End | Single End |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch |
| Workpiece Compatibility | Hardened, Nonferrous, Stainless Steel, Steel, Super Alloy |
Shipping Info:
| Ship weight (kg) | 0.6 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Milling Dia. | Shank Dia. | Grade | Corner Radius | Overall Length | Number Of Flutes | Helix Angle | List Number | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| VGM5-1193 | 1" | 1" | High Performance | 0.06" | 6" | 5 | 40° | VGM5-LN | €666.92 | |
| VGM5-1199 | 1" | 1" | High Performance | 0.03" | 6" | 5 | 40° | VGM5-LN | €717.52 | |
| VGM5-1206 | 1" | 1" | High Performance | 0.03" | 7" | 5 | 40° | VGM5-LN | €760.45 | |
| VGM5-1208 | 1" | 1" | High Performance | 0.09" | 7" | 5 | 40° | VGM5-LN | €760.45 | |
| VGM5-1204 | 1" | 1" | High Performance | 1/4" | 6" | 5 | 40° | VGM5-LN | €717.52 | |
| VGM5-1202 | 1" | 1" | High Performance | 3/25" | 6" | 5 | 40° | VGM5-LN | €717.52 | |
| VGM5-1211 | 1" | 1" | High Performance | 1/4" | 7" | 5 | 40° | - | €760.45 |
